SC706-5F1FQ Long Button Switch for Kitchen Hoods

FOB Price

US$ 1.10 - 1.10 / Piece

10000 Pieces(Min. Order)

Port Shenzhen or other Guangdong port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	BAOKEZHEN
Model Number	SC706-5F1FQ kitchen hood switch	Protection Level	IP20
Max. Current	6A-3A	Max. Voltage	125V~250VAC

Product Description

SC706-5F1FQ Kitchen hood switch, kitchen hood piano switch, kitchen hood keyboard switch, kitchen hood mechanical switch, kitchen hood push button switch, kitchen hood 5-position switch

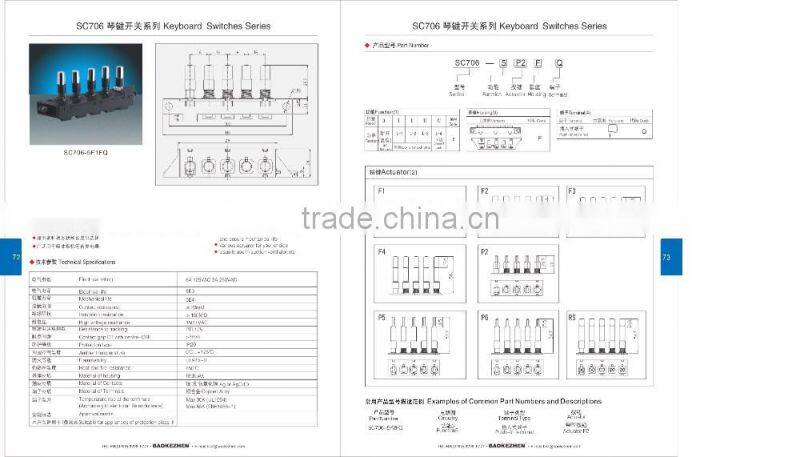

P/N	SC706-5F1FQ kitchen hood switch
Current & Voltage	6A 125VAC 3A 250VAC
Life	6E3 / 5E4
Materials	Housing-PA Terminals-copper Alloy, Contacts-Ag / AgcdO
Contact gap	more than 3mm
Contact resistance	20 mΩ or less than 20 mΩ
Insulation resistance	more than 100 mΩ
High voltage resistance	1500VAC
Resistance to tracking	PTI 175
Protection type	IP20
Ambient temperature	0℃,+125℃
Flammability	UL94V-0
Heat and fire temperature	850℃
Temperature rise at the terminals (according to electrical life endurance)	Max 30K ( UL1054) Max 55K ( EN61058-1)

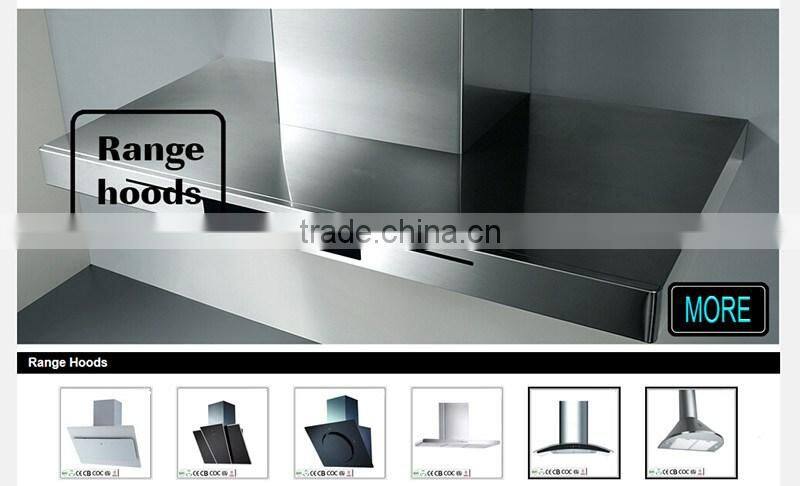

These switches are suitable for appliances of protection class II, such as cooker hood, range hood and so on. For more switches, pls refer to .

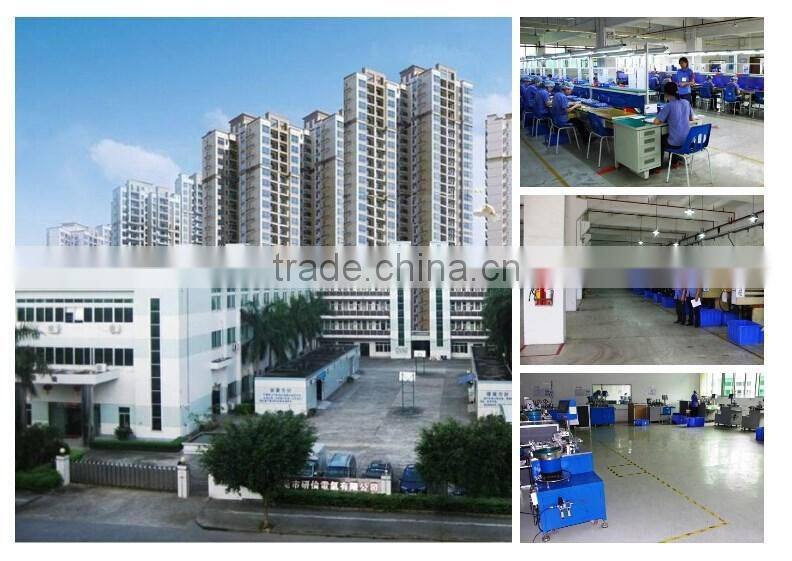

Company Information

BAOKEZHEN was established and started to produce switches since 1987, with 18 years manufacturing experience, we have successfully extended our switch series, such as micro switch series, single pole rocker switch series, double pole rocker switch series, push button switch series, rotarry switch series, slide switch / toggle switch series, keyboard switch / piano switch series, and so on... Meanwhile, we also extended some new industries range, such as solenoid pumps, solenoid valve, PCB controller for appliances care. So far BAOKEZHEN yearly products capacity has been up to 100million pcs.

Packaging & Shipping

BAOKEZHEN has the 10 years experience in export and import, so the shipment by express courier / by air / by sea / truck or FCL / LCL can be easily treated.
