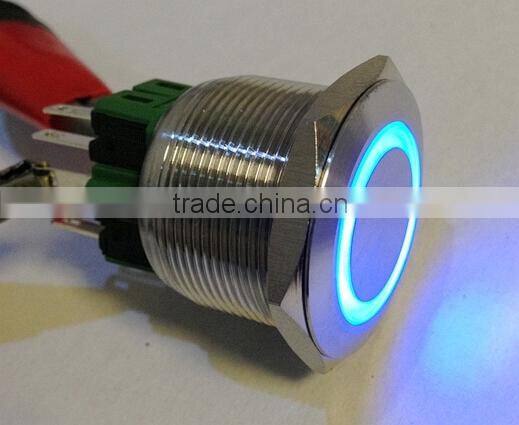

Ring Illuminated Waterproof Push Button Switch L25(Dia.25mm) IP67
USD $5 - $7
/ Piece
1 Piece(Min.Order)
- 100000 Piece / Pieces per Month
- Ningbo or Shanghai
- Credit Card
You May Like
-
Dot Illuminated Waterproof Push Button Switch L25(Dia.25mm) IP67
-
Illuminated Waterproof Push Button Switch L25(Dia.25mm) IP67
-
Illuminated Waterproof Push Button Switch L25(Dia.25mm) 2NO2NC
-
Latching Ring Illuminated Waterproof Push Button Switch L25(Dia.25mm) With Power Symbol
-
Momentary Ring Illuminated Waterproof Push Button Switch L25(Dia.25mm) With Power Symbol
-
Vandalproof Push Button Switch 25mm Stainless Steel IP67
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BAOKEZHEN | |
| Model Number | L25-PH-6C | Protection Level | IP67, IK10 | |
| Max. Current | 5A | Max. Voltage | 250V |
Product Description
Specifications
Operation type: Momentary/LatchingIP Degree: IP67, IK10
LED spec.: Ring Illuminated(LED)
| Mounting hole: Φ25mm diameter |
| Operation type: Momentary/Latching |
| Contact Configuration: 1NO 1NC/2NO 2NC |
| Front Shape: Flat Round |
| Terminal Type: Pin Terminals(2.8x0.5mm) |
| Max. Switch Rating: 5A/250V |
| Contact Resistance: ≤50mΩ |
| Insulation Resistance: ≥1000mΩ |
| Dielectric Strengh: 2000VAC |
| Operation Temp.: -20°c ~ +55°c |
| Mechanical Life: 500, 000cycles |
| Electrical Life: 50, 000cycles |
| Panel Thickness: 1~10mm |
| Torque: 5~14Nm |
| Operation Pressure: About 3~5N |
| Operation Travel: About2.5mm |
| IP Degree: IP67, IK10 |
| Contact Material: Silver Alloy |
| Crust Material: Stainless Steel |
| Button Material: Stainless Steel |
| Body Material: Stainless Steel |
| Base Material: PA66 |
| LED spec.: Ring Illuminated(LED) |
| LED rated Voltage: 3V/6V/12V/24V/110V/220V |
| LED Color: Red,Green,Yellow,Blue,White,Oragne,Purple |
| LED Life: 40000 hours |
We can especially make for you according to your requirement,including laser inscription,change installation dimensions,change appearance colors,change material and so on.If you have any question,pls feel free to tell me.We shall spare no efforts in endeavouring to be of service to you.Pls contact us for more information.
