Home > Products > Metal Pushbutton Switch > Flat Round Ring Illuminated Latching Waterproof Metal Push Button Switch 12mm Engraved Power Symbol

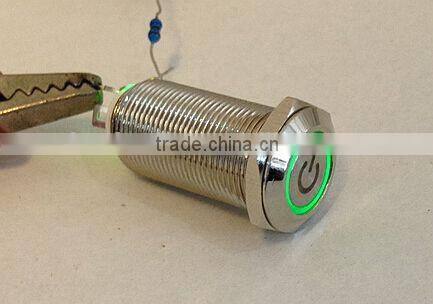

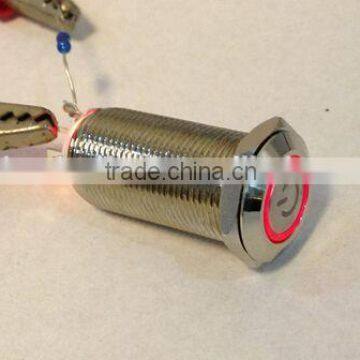

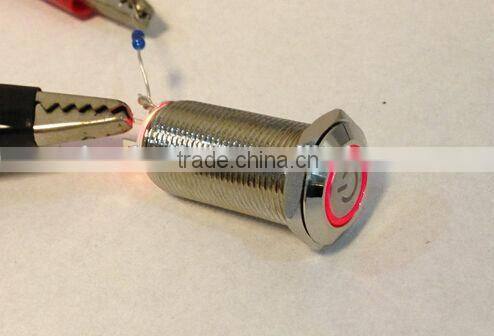

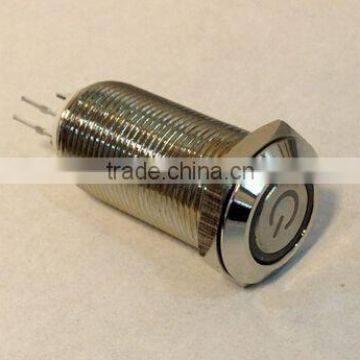

Flat Round Ring Illuminated Latching Waterproof Metal Push Button Switch 12mm Engraved Power Symbol
US$ 1.5 - 3
/ Piece
1 Piece(Min. Order)
- Ningbo or Shanghai
- Credit Card
You May Like
-
High Round Momentary ON 4 Pin Terminals Waterproof Metal Push Button Switch 12mm
-
Momentary ON 4 Pin Terminals Waterproof Metal Push Button Switch 12mm Quality Choice
-
Flat Round Momentary ON Metal Push Button Switch 12mm Waterproof Engraved Power Symbol
-
L30-1PD-6C Metal Push Button Switch With Diam 30, Momentary, Green LED Illuminated
-
Vandalproof Dot LED Push Button Switch L30(Dia.30mm) Stainless Steel
-
Illuminated Sealed Long Life Anti-vandal Push Button Switch L30(Dia.30mm) Stainless Steel 2NO2NC
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BAOKEZHEN | |
| Model Number | L12-2PH-4C Engraved Power Symbol | Protection Level | IP67, IK08 | |
| Max. Current | 2A | Max. Voltage | 3V |
Product Description
Specifications
Operation type: LatchingFront Shape: Flat Round
IP Degree: IP67,IK08
LED spec.: Ring Illuminated&Engraved Power Symbol
| Mounting hole: Φ12mm diameter |
| Operation type: Latching |
| Contact Configuration:1NO |
| Front Shape: Flat Round |
| Terminal Type: 4 Pin terminals(2.8x0.5mm) |
| Max. Switch Rating: 2A/3V |
| Contact Resistance: ≤50mΩ |
| Insulation Resistance: ≥1000mΩ |
| Dielectric Intensity: 2000VAC |
| Operating Temp: -20°c~+55°c |
| Mechanical life: 500,000 cycles |
| Electrical Life: 50, 000cycles |
| Panel Thichness: 1~6mm |
| Torque: 5~14Nm |
| Operation Pressure: About 5N |
| Operation Distance: About 2.0mm |
| IP Degree: IP67,IK08 |
| Contact Material: Silver Alloy |
| Crust Material: Nickel Plated Brass/Stainless Steel |
| Button Material: Nickel Plated Brass/Stainless Steel |
| Body Material: Nickel Plated Brass/Stainless Steel |
| Base Material: PA66 |
| LED spec.: Ring Illuminated&Engraved Power Symbol |
| LED rated Voltage: 3V |
| LED Color: Red,Green,Yellow,Blue,White,Oragne,Purple |
| LED Life: 40000 hours |
We can especially make for you according to your requirement,including laser inscription,change installation dimensions,change appearance colors,change material and so on.If you have any question,pls feel free to tell me.We shall spare no efforts in endeavouring to be of service to you.Pls contact us for more information.
