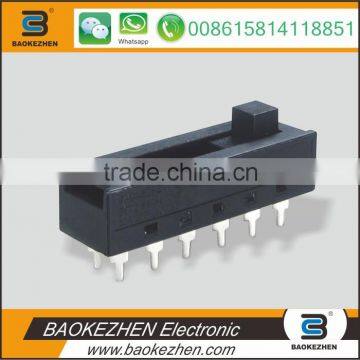

SC72 slide switch for home appliances

FOB Price

USD $0.3 - $1.5 / Piece

20000 Pieces(Min.Order)

Supply Ability 200000 Piece / Pieces per Month
Port Shenzhen or other Guangdong port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BAOKEZHEN	Model Number	SC72 slide switch
Max. Current	13A	Max. Voltage	125V 250V
Mechanical Life	5E4

Product Description

SC72 Slide switch for home appliances, electric slide switch, waterproof slide switch

P/N	SC72 slide switch, electric slide switch, waterproof slide switch
Current & Voltage	10A 250VAC T85 1E4 13A 125VAC 6.5A 250VAC
Life	1E4 / 5E4
Materials	Housing and handspike-PA Terminals-copper Alloy, Contacts-Ag / AgcdO
Contact gap	more than 3mm
Contact resistance	20 mΩ or less than 20 mΩ
Insulation resistance	more than 100 mΩ
High voltage resistance	1500VAC
Resistance to tracking	PTI 175
Protection type	IP20
Ambient temperature	0℃,+85℃
Flammability	UL94V-0
Heat and fire temperature	850℃
Temperature rise at the terminals (according to electrical life endurance)	Max 30℃ ( UL1054) Max 55℃ ( EN61058-1)
Approvals	UL & SEMKO
These switches are suitable for appliances of protection class II, such as oven, coffee maker, stirrer, hair drier, power strip and so on. For more switches, pls refer to .

BAOKEZHEN was established and started to produce switches since 1987, with 18 years manufacturing experience, we have successfully extended our switch series, such as micro switch series, single pole rocker switch series, double pole rocker switch series, push button switch series, rotarry switch series, slide switch / toggle switch series, keyboard switch / piano switch series, and so on... Meanwhile, we also extended some new industries range, such as solenoid pumps, solenoid valve, PCB controller for appliances care. So far BAOKEZHEN yearly products capacity has been up to 100million pcs.
