Home > Products > solar&wind inverter > 1000W 2000W 3000W 4000W 5000W 6000W blackpure sine wave solar power charger inverter

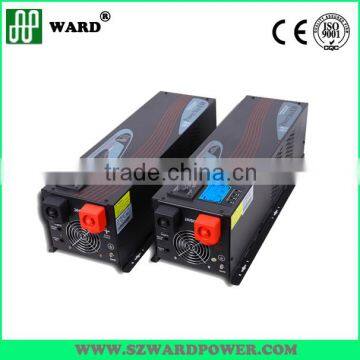

1000W 2000W 3000W 4000W 5000W 6000W blackpure sine wave solar power charger inverter

FOB Price

USD $100 - $600 / Piece

1 Piece(Min.Order)

Supply Ability 2500 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	WARD, WARD charger inverter
Model Number	LW1000~LW8000	Output Power	Other, 1000W--8000W
Output Type	Single	Size	446218179mm,605218179mm
Weight	20-48kgs	Input Voltage	12/24/48VDC,120VAC/230VAC
Output Voltage	120/220/230/240VAC	Type	DC/AC Inverters
Output Frequency	50/60Hz	Output Current	according to loads

Product Description

1000W 2000W 3000W 4000W 5000W 6000W

black and white color dc to ac pure sine wave solar power charger inverter

Specifications

Solar Inverter pure sine wave

Solar power inverter 12v/24v/48vdc 110v/220vac
Built in charger

Powerstar LW Pure Sine Wave Inverter Charger 1000W-8000W,

Solar Power Inverter, best partner for solar use.

Applications:

LW pure sine wave inverter charger 1000W-8000W, LED/LCD digital display, 3 times peak power, low frequency type with transformer, UPS function.It widely applied in wind generator , Solar power , house, vehicle, ship,navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station.

Features:
Pure sine wave output, available for sensitive load
4-step progressive charging, 7 battery type selector
Fast and powerful charger with 35A and 70A
Accept generator’s energy output
High power factor
Automatically transfer between battery and line modes
Microprocessor control guarantees high reliability
Bypass without battery connected
Remote control function
Protection against:
Over load, over temperature, over charging, low battery
Reverse connection(optional by hard connector)

Model No.	LW1000	LW2000	LW3000	LW4000	LW5000	LW6000
Nominal Power	1000W	2000W	3000W	4000W	5000W	6000W
AC Input
Phase & waveform	Single phase & Pure Sine Wave
Voltage	120VAC/230VAC
Acceptable Voltage	194-243VAC164-243VAC(wide mode)
Line Low Transfer	85V±4%/184(154 wide mode±4%)
Line Low Return	95V±4%/194(164 wide mode±4%)
Line high Transfer	135V±4%/253±4%
Line high Return	127V±4%/243±4%
Frequency	50Hz or 60Hz (auto sensing)
Line Low Transfer	47Hz for 50Hz,57Hz for 60Hz
Line high Transfer	55Hz for 50Hz,65Hz for 60Hz
Output
Phase & waveform	Single phase & Pure Sine Wave(bypass mode sync to input)
Voltage	120/220/230/240VAC(bypass mode sync to input)
Voltage Regulation	±10%rms(bypass mode sync to input)
Frequency	50Hz±0.3Hz(bypass mode sync to input)
Peak Power	3 times of rating power
Short Circuit Protection	Yes,shutdown after 10ms
Power Factor	0.9-1.0
DC Input
Battery Voltage	12V/24V	12V/24V/48V		24V/48V
Minimum Start Voltage	10V for 12V,20V for 24V,40V for 48V
Low Battery Alarm	10.5V for 12V,21V for 24V,42V for 48V
Low Battery Transfer	10V for 12V,20V for 24V,40V for 48V
High Voltage Alarm	16V for 12V,32V for 24V,64V for 48V
Max Charging Current	35A/70A
Over Charge Voltage	15.7V for 12V,31.4V for 24V,62.8V for 48V
Transfer Efficiency
Line Mode	>95%
Battery Mode	>88%
power saver	Available when the load is less than 25 Watts
Indicators
7-LED Display	From the right to the left,LED1 line mode (green lighting),LED2 inverter mode
	(green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged
	(green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded
	shutdown(red lighting),LED7 Saving Mode(green lighting)
3-LED Display	Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting)
Switch selector	Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is
	turning the inverter off.
Audible Alarm	Sounding when the heatsink's tem is over 105°C and shutdown after 30 seconds.
Protections	low battery,over charging,over temp,over load
Communications	RS-232/USB(custom-made)
Enviromental
Operating Environment	0-40°C,0-90%RH(non-condensing)
Audible Noise	<60dB
Physical
Net Weight(KG)	18	20	22	35	38	40
Dimension,D X W X H(mm)	218X179X442			218X179X598

Plugs

Our Services

1. Respond as Soon as Possible

2. Keep Clients Updated

3. Go the Extra Mile

4. Fix Your Mistakes

5.24 hours online

6. Keep Promises

7. Don’t Confuse Clients with Jargon

8. Be Patient

9. Know Everything we Need to Know

FAQ

Q1. What's the payment term?

A. We accept TT, 30% deposit and 70% balance before shipping and Western Union.

Q2. How's the delivery time ?

A. Usually it will take about 15~20 days for production

Q3. Tell me the standard package?

A. For the small capacity, it uses carton, but for big capacity, we should use strong wooden case for protection.

Q4. What kind of material of transformer?

A.We have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact, those two have little difference. Copper is better and also price higher.

Q5. Would you accept our logo ?

A.If you have reached the minimum quantity, absolutely no problem to do OEM.

Q6. We want to know your monthly capacity.

A. It varies with product models. For example, monthly capacity can reach near 20000pcs for small capacity and big capacity near 3000pcs.

Q7. Where is your market?

A. Our products are popular in Nigeria, Egypt, Russia, indonesia, Philippines, Italy, America, Pakistan and so on. Hope you can join us and make mutural benifits through our cooperation.

Q8. Does the inverter connect with solar system ?

A. Yes. The unique feature combines inverter, charger and AC auto-transfer switch into one complete system, making the inverter not only connects with solar system, also can be used in office equipment, household items, power tools and etc..

Factory Show

Packaging & Shipping

Packaging Detail: Standard Export carton or wooden package. The Safest Transportation Package

Delivery Detail: 15~20 days for Routine machine, once received deposit, 20~25days for Specified requests, once received deposit. It will be varied according to actual order quantity.
