APT Series Solar Inverter Pure Sine Wave Inverter dc ac 220v Inverter 4000w

FOB Price

US$ 50 - 500 / Piece

1 Piece(Min. Order)

Port Shenzhen Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Ward
Model Number	APT4000W-6000W	Output Power	Other, 4000W
Output Type	Dual	Size	4701901340mm
Weight	38KG	Input Voltage	110/120/130VAC or 220/230/240VAC
Output Voltage	100-110-120Vac / 220-230-240Vac	Type	Other, DC/AC Inverters, DC/AC Inverters
Output Frequency	50Hz±0.3Hz 60Hz±0.3Hz	Output Current	according to loads

Product Description

APT series solar inverter pure sine wave inverter dc ac 220v inverter 4000w

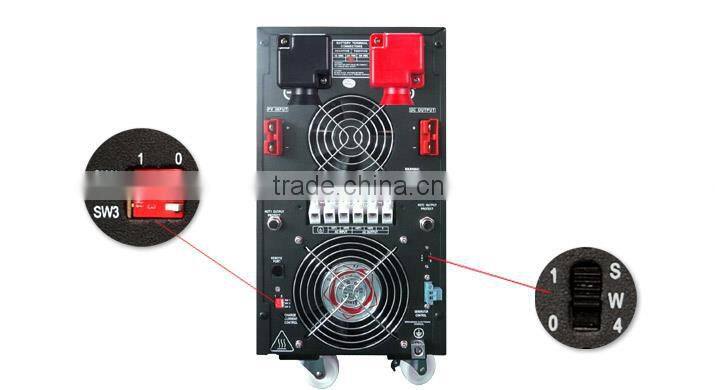

APT pure sine wave inverter is the latest model presented by Yiyuan Electric Co.,Ltd.. Developed on the base of our previous PSW 7 series, the APT charger has achieved significant improvements on battery charging, AC transfer, etc. By adopting DIP (dual in-line package) switch, the APT pure sine wave inverter provides more smart options for users to customize the performance of the device. With tower shape design, APT charger is more convenient for use in movable applications.

Features of APT Pure Sine Wave Inverter, Charger
1. Our APT charger allows start up and through power with depleted batteries. Its powerful charge rate up to 90 Amp**.
2. It can offer 3-step intelligent battery charging, and equipped with 8 preset battery type selector for totally flat batteries.
3. LCD status display, battery/AC priority switch, USB communication port are available for our APT pure sine wave inverter, it also has 17 alarms/warnings for easier operation and trouble-shooting, and ability to switch the unit on/off. In addition, select/deselect power saver mode can be used too.
4. High overload ability of our APT charger is up to 300% rated power(20 sec.).
5. APT pure sine wave inverter adopts low quiescent current, and power saver mode to reduce power consumption to 10W (3s sensing cycle)/ 3W (30s sensing cycle) *. It can extract max. power from various batteries with different protections, and low voltage trip can be selected (9.5V/10V or 10V/10.5V).
6. Uses PFC (power factor correction) for charger, which has less power consumption than conventional units.
7. It has 15s delay before transfer when AC resumes, and overload protection when our APT pure sine wave inverter equips with generator.
8. 10ms typical transfer time between battery and AC, which guarantees power continuity of APT charger. Uses selectable input AC voltage (184-253V or 154-253V) for different kinds of loads.
Note:*For 1KW one. **For some models.

APT Series Inverter& Charger

Electrical Specifications
	Model	APT 4000W	APT 5000W		APT 6000W
Output (Inverter mode)	Continuous Output Power	4000W	5000W		6000W
	Surge Rating	12000W	15000W		18000W
	Output Waveform	Pure Sine wave/Same as input(Bypass mode)
	Nominal Efficiency	>88%(Peak)
	Line Mode Efficiency	>95%
	Power Factor	0.9-1.0
	Nominal Output Voltage rms	100-110-120Vac / 220-230-240Vac
	Output Voltage Regulation	±10% RMS
	Output Frequency	50Hz ± 0.3Hz/60Hz ± 0.3Hz
	Short Circuit Protection	Yes( 1sec after fault )
	Typical Line Stansfer Time	10ms
	THD	< 10%
DC Input	Nominal Input Voltage	24V	48V
	Minimum Start Voltage	20V	40V
	Low Battery Alarm	21V	42V
	Low Battery Trip	20V	40V
	High Voltage Alarm	32V	64V
	Low Battery voltage recover	26V	52V
	Idle Consumption-Search Mode	< 25 W when Power Saver On
AC Charger	Input Voltage Range	Wide: 90~135VAC / 164~243VAC; Narraw: 100~135VAC / 194~243VAC;
	Output Voltage	Depends on battery type
	Max Charge Rate	35A / 70-90A Max (Charger Current Control)
	Battery Initial Voltage for Start Up	0-31.4V for 24V( *2 for 48Vdc)
	Over Charge Protection Shutdown	31.4V for 24V (*2 for 48Vdc)
	Charger curve(4 stage constant current) 4 step digital controlled progressive charge	Battery types (*2 for 48Vdc)
	Battery type	Fast V	Float V
	Gel U.S.A	28.0	27.4
	A.G.M 1	28.2	26.8
	A.G.M 2	29.2	27.4
	Sealed Lead Acid	28.8	27.2
	Gel Euro	28.8	27.6
	Open Lead Acid	29.6	26.6
	Calcium	30.2	27.2
	De-sulphation	31.0Vdc for 4hrs
	Remote Control	Yes. Optional
Bypass & Protection	Input Voltage Waveform	Sine wave (Grid or Generator)
	Nominal Voltage	120VAC	230VAC
	Low Voltage Trip	90V±4%	184V/154V±4%
	Low Voltage re engage	100V±4%	194V/164V±4%
	High Voltage Trip	140V±4%	253V±4%
	High Voltage re engage	135V±4%	243V±4%
	Max Input AC Voltage	150VAC	270VAC
	Nominal Input Frequency	50Hz or 60Hz (Auto detect)
	Low freq trip	47Hz± 0.3Hz for 50Hz, 57Hz± 0.3Hz for 60Hz
	Low freq re engage	48Hz± 0.3Hz for 50Hz, 58Hz± 0.3Hz for 60Hz
	High freq trip	55Hz± 0.3Hz for 50Hz, 65Hz± 0.3Hz for 60Hz
	High freq re engage	54Hz± 0.3Hz for 50Hz, 64Hz± 0.3Hz for 60Hz
	Overload protection	Circuit breaker
	Short circuit protection	Circuit breaker
	Transfer switch rating	30amp	40amp
Mechanical Specifications	Mounting	Wall mount
	Inverter Dimensions(LWH)	470190340mm
	Inverter Weight	38KG	48KG	48KG
	Shipping Dimensions(LWH)	530240390mm
	Shipping Weight	40KG	50KG	50KG
	Display	Status LEDs / Status LEDs+LCD
	Standard Warranty	1 Year

Plugs

Our Services

1. Respond as Soon as Possible

2. Keep Clients Updated

3. Go the Extra Mile

4. Fix Your Mistakes

5.24 hours online

6. Keep Promises

7. Don’t Confuse Clients with Jargon

8. Be Patient

9. Know Everything we Need to Know

FAQ

Q1. What's the payment term?
A. We accept TT, 30% deposit and 70% balance before shipping and Western Union.
Q2. How's the delivery time ?
A. Usually it will take about 15~20 days for production
Q3. Tell me the standard package?
A. For the small capacity, it uses carton, but for big capacity, we should use strong wooden case for protection.
Q4. What kind of material of transformer?
A.We have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact, those two have little difference. Copper is better and also price higher.
Q5. Would you accept our logo ?
A.If you have reached the minimum quantity, absolutely no problem to do OEM.
Q6. We want to know your monthly capacity.
A. It varies with product models. For example, monthly capacity can reach near 20000pcs for small capacity and big capacity near 3000pcs.
Q7. Where is your market?
A. Our products are popular in Nigeria, Egypt, Russia, indonesia, Philippines, Italy, America, Pakistan and so on. Hope you can join us and make mutural benifits through our cooperation.

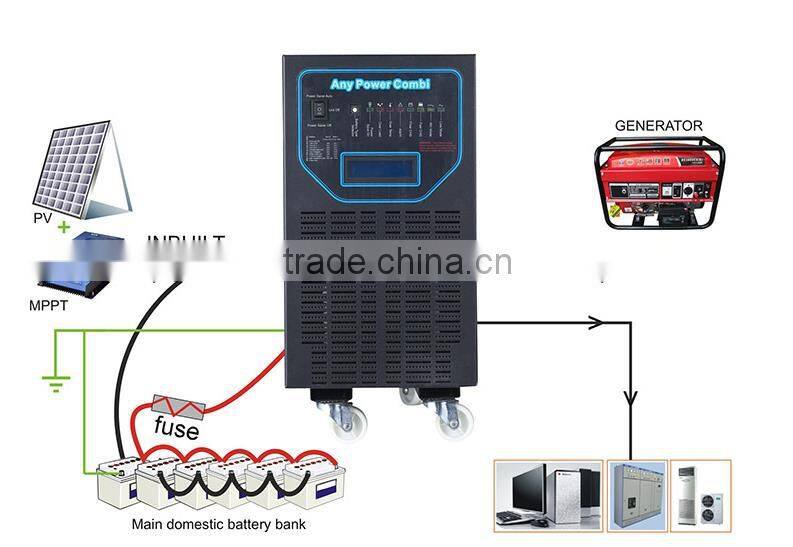

Q8. Does the inverter connect with solar system ?
A. Yes. The unique feature combines inverter, charger and AC auto-transfer switch into one complete system, making the inverter not only connects with solar system, also can be used in office equipment, household items, power tools and etc..

Factory Show

Packaging & Shipping

Packaging Detail: Standard Export carton or wooden package. The Safest Transportation Package

Delivery Detail: 15~20 days for Routine machine, once received deposit, 20~25days for Specified requests, once received deposit. It will be varied according to actual order quantity.
