pvc16-32mm pipe good extrusion line
- shanghai
You May Like
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Place of Origin | China | Brand Name | JURRY | |
| Model Number | GF-25*4 | Voltage | 380V | |
| Power(W) | 91KW | Dimension(L*W*H) | 18*1.5*1.5 | |
| Weight | 10TON | Certification | CE and ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
good extrusion line:
PVC four-outlet pipe extrusion line:
PVC double outlet pipe extrusion machines:
PVC 630 pipe extrusion machines:
1 Extruder:
Parts | No | Name | Brand |
1.1 Electric parts | 1 | Inverter | Switzerland ABB |
2 | Contactor | Schneider | |
3 | Relay | Schneider | |
4 | Temperature meter | RKC meters | |
5 | Breaker | Delixi | |
| |||
1.2 Driving parts | 1 | Motor | Siemens AC motor |
2 | Gear box | Top brand in China | |
| |||
1.3 Screw and barrel | 1 | Technology | Adopt German technology |
2 | Main materials | 38CrMoALA | |
3 | The barrel is equipped with vacuum system | ||
4 | The screw is equipped with thermostat system | ||
5 | Heating ring | Cast aluminum heating ring | |
| |||
1.4 Calibrated feeding device | 1 | Speed controller | ABB inverter |
2 | It is equipped with stirring device | ||
| |||
1.5 Protection system | 1 | Screw dislocation protection | |
2 | Current overload protection | ||
3 | A full set alarming system | ||
2 Mold
No | Name | Specs |
2.1 | Main materials | Mould steel |
2.2 | Temperature control system | Japanese RKC temperature meter |
2.3 | Parts processing | By the CNC |
2.4 | Heating ring | Mica heater |
3 Vacuum calibration tank
No | Name | Specs |
3.1 | Main material | Stainless steel |
3.2 | Water and vacuum pump from shanghai YVHUAN | |
3.3 | Main electric parts | Schneider |
3.4 | The calibration tank is equipped with water temperature and vacuum degree supervising device. | |
4 Hauler
No | Name | Specs |
4.1 | Hauling motor | TECO servo motor |
4.2 | Gear box | Densen (Germany joint venture) |
4.3 | Main electrics | Schneider brand |
4.4 | Hauling type | Caterpillar type |

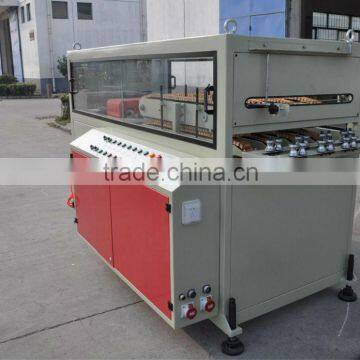

5 Cutter
No | Name | Specs |
5.1 | Cutting type | Planetary cutter |
5.2 | Controlling system | Schneider PLC |
5.3 | Main electric | Schneider |
5.4 | The cutter is equipped with chamfering device | |
6 Stacker:
No | Name | Specs |
6.1 | Main material | Stainless steel |
6.2 | Stacking type | Auto stacking |
7 After sales service:
7.1 Before shipment, we would invite you to come to our factory to test the machines.
7.2 After the machine was shipped to your factory, we would send our engineer to your factory to install the machine and communicate with your engineers.
7.3 After the installation, we would reply to your problem within 24 hours. If you necessary, we would send our engineer to your factory according to your requirements.
