extrusion machines for pvc 400mm pipes
- shanghai
You May Like
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | fully automatic | Place of Origin | Shanghai, China | |
| Brand Name | JURRY | Model Number | GF-400 | |
| Voltage | 380V | Power(W) | 215KW | |
| Dimension(L*W*H) | 18*1.5*1.5 | Weight | 10TON | |
| Certification | CE and ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
extrusion machines for pvc400mm pipes:
PVC four-outlet pipe extrusion line:
PVC double outlet pipe extrusion machines:
PVC 630 pipe extrusion machines:
1 Extruder:
Parts | No | Name | Brand |
1.1 Electric parts | 1 | Inverter | Switzerland ABB |
2 | Contactor | Schneider | |
3 | Relay | Schneider | |
4 | Temperature meter | RKC meters | |
5 | Breaker | Delixi | |
| |||
1.2 Driving parts | 1 | Motor | Siemens AC motor |
2 | Gear box | Top brand in China | |
| |||
1.3 Screw and barrel | 1 | Technology | Adopt German technology |
2 | Main materials | 38CrMoALA | |
3 | The barrel is equipped with vacuum system | ||
4 | The screw is equipped with thermostat system | ||
5 | Heating ring | Cast aluminum heating ring | |
| |||
1.4 Calibrated feeding device | 1 | Speed controller | ABB inverter |
2 | It is equipped with stirring device | ||
| |||
1.5 Protection system | 1 | Screw dislocation protection | |
2 | Current overload protection | ||
3 | A full set alarming system | ||
2 Mold
No | Name | Specs |
2.1 | Main materials | Mould steel |
2.2 | Temperature control system | Japanese RKC temperature meter |
2.3 | Parts processing | By the CNC |
2.4 | Heating ring | Mica heater |
3 Vacuum calibration tank
No | Name | Specs |
3.1 | Main material | Stainless steel |
3.2 | Water and vacuum pump from shanghai YVHUAN | |
3.3 | Main electric parts | Schneider |
3.4 | The calibration tank is equipped with water temperature and vacuum degree supervising device. | |
4 Hauler
No | Name | Specs |
4.1 | Hauling motor | TECO servo motor |
4.2 | Gear box | Densen (Germany joint venture) |
4.3 | Main electrics | Schneider brand |
4.4 | Hauling type | Caterpillar type |

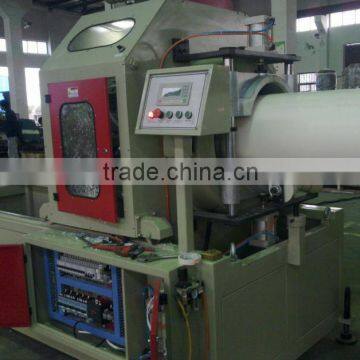

5 Cutter
No | Name | Specs |
5.1 | Cutting type | Planetary cutter |
5.2 | Controlling system | Schneider PLC |
5.3 | Main electric | Schneider |
5.4 | The cutter is equipped with chamfering device | |
6 Stacker:
No | Name | Specs |
6.1 | Main material | Stainless steel |
6.2 | Stacking type | Auto stacking |
7 After sales service:
--Before shipment, we would invite you to come to our factory to test the machines.
--After the machine was shipped to your factory, we would send our engineer to your factory to install the machine and communicate with your engineers.
--After the installation, we would reply to your problem within 24 hours. If you necessary, we would send our engineer to your factory according to your requirements.
