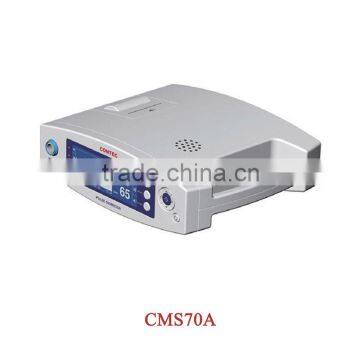

MC-CMS70A Pulse Oximeter

MC-CMS70A Pulse Oximeter

Model:  MC-CMS70A

Instructions

Principle of the CMS70A Pulse Oximeter is as follows: Photoelectric Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology,the Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through finger.The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc.

Major Features

u  Operation of the product is simple ,low power consumption

u  SpO₂ value display

u  Pulse rate value display, bar graph display

u  PI display

u  Pulse waveform display

u  Menu operation

u  Screen brightness can be changed

u  The display mode can be changed

u  Pulse rate sound indication,it can be turned on or turned off

u  With measured data overruns limits and low-voltage alarm function,the upper/down alarm range can be adjustable

u  Battery capacity indication

u  Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage,and with alarm function

u  Connected with an external oximeter probe

u  Data storage function,and the storage data can be uploaded to computer

u  Real-time data can be transmitted to computers

Main performance

u  Display Mode:TFT Screen and LED display

u  Screen Resolution:320*240

u  SpO₂ Measuring Range:0%~100%, (the resolution is 1%).

u  Accuracy:70%~100%:±2% ,Below 70% unspecified.

u  PR Measuring Range:30bpm~250bpm, (the resolution is 1bpm)

u  Accuracy:±2bpm or ±2% (select larger)

u  Measurement Performance in Weak Filling Condition:SpO₂ and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO₂ error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).

u  Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.

u  Power Consumption:About 350mA

u  Voltage:AC 100~240V,50/60HZ

u  Power Supply: Built-in recharge Li-Polymer

u  Battery working hour: after the device built-in battry finished the charge,it's continuous working time is not less than 1 hour

u  Safety Type:II device,BF Type

Accessories

Sell in standard

u  A user manual

u  A power wire

u  A data line

u  An oximeter probe

u  A disk (PC software)

Sell in addition

Other oximeter probe(Refer to the product configuration BOM for details)

Physical Identity

Dimension:269(L)×222(W)×79(H)mm

Weight: About 1Kg
