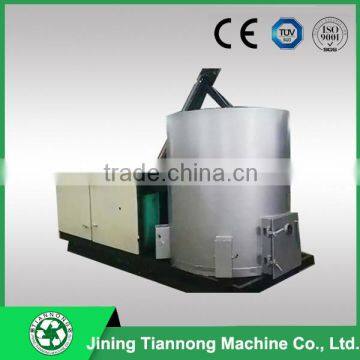

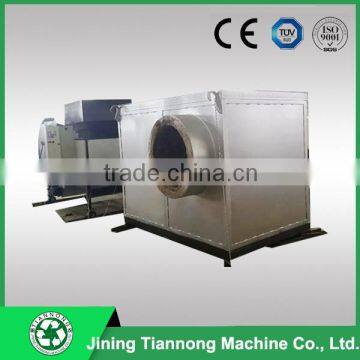

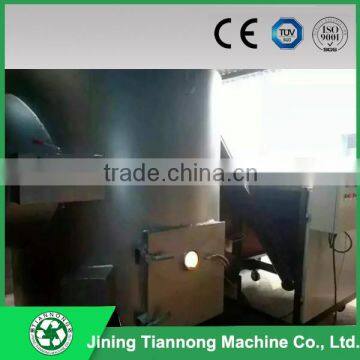

Made in China Pellet Burner Vertical Flame Wood Pine Pellet Burner for Sale
- Shanghai or Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Made in China Wood Sawdust Pellet Burner Biomass Burner for Sale-Peter
-
Pellet Burner Vertical Flame Wood Pellet Burner for Sale Burner
-
China Pellet Burner Biomass Burner for Sale Burner
-
Cassava Hammer Mill Hammer Mill Dust Hammer Mill -Selina
-
Coconut Hammer Mill Hammer Mill Sieve Hammer Mill -Selina
-
Mini Hammer Mill PTO Hammer Mill Hammer Mill -Selina
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | TianNong | Model Number | FTL-Series | |
| Voltage | 220V/380V | Power(W) | 0.8-4.5kw | |
| Weight | 500-4000kg | Dimension(L*W*H) | Different on different model | |
| Certification | ISO 9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Made in China Pellet Burner Vertical Flame Wood Pine Pellet Burner for Sale
The pellet burner is suitable for drying equipment, smelting furnace, heating boiler, alternative fuel (gas) burner and other equipment which need heating heat source. The pellet burner is easy to use, safe and reliable.
1 Fuel: wood pellets, diameter 6-8mm, length 20-40mm.
2 Boiling-bed combustion, improve furnace efficiency, different from the common pellet burner. The pellets can burn sufficiently.
3 Special feeding method, upper rotating feeding, feeding evenly, the burner structure is simple.
4 Air go into burner horizontally, avoid clinker,reduce the clinker rate.
5 Long use life, the pipe, door adopt thermal insulation material.
6 Preheating air supplying,the efficiency improve at least 5%.
7 The outlet temperature of flame :800-1200 degree.
8 Modular design: fast and reliable repair and replacement.
9 Little slagging of furnace wall: whirlwind protection make the furnace wall little slagging, improve the working life of furnace and reduce the cleaning work.
Model | Rated Power (kw) | Fuel Consumption (kg) | Board Dimension (L * W * H) (mm) | Diameter of Outlet Fire (mm) | Net Weight (kg) |
FTL60 | 60-100 | 13-22 | 1200*500*1500 | 160 | 500 |
FTL120 | 120-280 | 26-62 | 1200*500*1500 | 160 | 600 |
FTL300 | 300-450 | 66-100 | 1400*5400*1500 | 200 | 750 |
FTL500 | 500-750 | 110-160 | 1400*540*1500 | 200 | 1000 |
FTL800 | 800-1150 | 177-250 | 1800*600*1500 | 380 | 1200 |
FTL1200 | 1200-1550 | 266-344 | 1800*600*1500 | 380 | 1200 |
FTL1600 | 1600-2350 | 355-522 | 2000*1000*1500 | 400 | 1400 |
FTL2400 | 2400-2950 | 533-655 | 2000*1000*1500 | 500 | 1700 |
FTL3000 | 3000-4000 | 666-888 | 2600*1000*1500 | 670 | 2000 |
FTL4000 | 4000-5900 | 888-1311 | 2600*1200*1550 | 670 | 2400 |
FTL5000 | 5000-6900 | 1111-1500 | 2600*1200*1550 | 670 | 2800 |
FTL6000 | 6000-7900 | 1333-1755 | 2800*1300*1600 | 700 | 3200 |
FTL7000 | 7000-8900 | 1555-1977 | 3000*1500*1700 | 800 | 4000 |
FTL8000 | 8000-9900 | 1777-2200 | 3000*1500*1700 | 800 | 4400 |
Note: The rates voltage of small Burner is 220v or 380v; while the FTL1200 to FTL8000 must be 380v. | |||||
Other: Made in China Pellet Burner Vertical Flame Wood Pine Pellet Burner for Sale | |||||
