Protable MINI Brand Inverter Arc Welding Machine MMA120
- SHENZHEN
- T/T Credit Card
You May Like
-

                        Chinese Single Phase Portable Arc Welding Machine IGBT 125 Inverter Welder
-

                        IGBT 165 Hot Inverter Weld dc Arc Welding Machine
-

                        Chinese Inverter Small Welding Machine IGBT200
-

                        Single Phase Arc Welding Machine Specifications (MMA-160) Quality Choice
-

                        Inverter Welding Machine Mma-200 Single Phase Quality Choice
-

                        3 Phase Inverter Arc Welding Machine Mma-250
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | GREATEC | Model Number | MMA120 | |
| Arc Current | 160A | Pulse Frequency | 50/60 HZ | |
| Pilot Arc Current | 10A | Rated Duty Cycle | 60% | |
| Motor Type | DC Motor | Dimensions | 290*132*213 | |
| Usage | Ideal for stainless steel.cast iron,etc | Voltage | 220V | |
| Power(W) | 4.4KVA | Certification | CE | |
| Warranty | 1 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

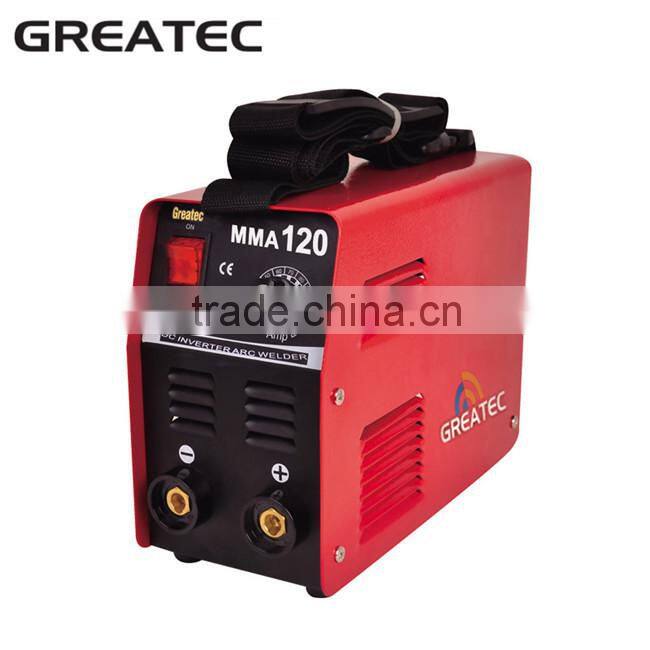

MMA120 Welding machine
*Single phase,fan cooled,mosfet inverter technology
*portable type,easy to operate,economical durable
*Ideal for stainless steel,cast iron,etc
*Small size and light weight
| MODEL | MMA120 | MMA140 | MMA160 | MMA175 | MMA200 | MMA250A | MMA250B |
| Input power voltage(v) | single phase/220V | single phase/220V | single phase/220V | single phase/220V | single phase/220V | three phase/220V | three phase/380V |
| Rate input power capacity(KVA) | 4.2 | 4.4 | 4.9 | 6 | 6.5 | 9.4 | 9.4 |
| Output current range (A) | 20-120 | 20-140 | 20-160 | 20-180 | 20-200 | 20-250 | 20-250 |
| Rate output voltage(V) | 24 | 25.2 | 26 | 27 | 28 | 30 | 30 |
| Duty cycle(%) | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| O.C.V(V) | 56 | 56 | 56 | 56 | 65 | 65 | 65 |
| Efficiency(%) | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Power factor | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
| Weight(kg) | 7 | 8 | 8 | 8 | 10 | 17 | 17 |
| Overall dimension(mm) | 371*155*290 | 371*153*290 | 371*153*299 | 371*153*299 | 500*290*370 | 450*270*345 | 450*270*345 |
| Insulation class | F | F | F | F | F | F | F |
| Protection class | IP23 | IP23 | IP23 | IP24 | IP25 | IP26 | IP23 |
| Diameter of rod | 1.6-3.2 | 1.6-3.2 | 1.6-3.2 | 1.6-4 | 1.6-4 | 1.6-4 | 1.6-4 |

Our packing is double
And we also have the tool box if you need pls contact us the ordinary package just carton package show like the first photo

Main Market:
North America, South America , Southeast Asia, Middle East, Africa
With standard spareparts: 2 Cable connectors(35-50), 1 screw driver
Supply:
1. OEM and ODMsevice offered, Machine Color
2. One Year Warranty.
3.  Technical Support.
4. CE and CCC certificate
Strict Quality Control:
1.Our quality starts from the elemets. All parts are full new,refusing the used one .Our machine mainboard is made by ourself all the parts was in strictly controling  .
2.Our quality controling systems are stopping the defect before packing; So we arrange at least 5 QC stations, In an assembling line ; then every tiny part in the charge of one worker ,even every screws should be marked
3.The scientific production management 6S , prevent the mistakes by human being at the upper limits
4. Our products are strictly tested 100% before delivery, and approved by CE. And our products are able to meet or exceed some of the industry's most rigid standards. We can ensure you will be satisfied with both performance and durability
Perfect after-service
1.Any defects ,you can check it firstly ,If you can find out the problems, we can send you the components to you
2.If you can`t find out the faults ,our engineer will provide the free guide on line free
3.If we can`t solve the problems by vedio ,Our engineers are possible to come to your countries
Remarks
1. You can print your logo on the products or color box
2. We can take the OEM orders
3. If you place a considerable quantity,we can give you a competitive price
4. We can match the parts for you
If you have browse this kind of welding machines,pls feel free to contact us

Shenzhen Greatec technology Co.,Ltd. is a high-tech inverter welding&cutting machine manufacturer specializing in desgin ,production and marketing .We often attend the Exhibition .
Some more sample you can click the model picture to see the detail








  1.Q:How many days for mass producing ?
  A:It take 30 days after we comfirm the order.
2.Q:Can you do OEM & ODM ?
  A:Yes , welcome .We are a big factory .
3.Q:What Certificate do you have ?
  A:We have CCC,CE .
4.Q:What`s your gurantee period ?
  A:We offer 1-2 years warranty as per different models .
5.Q:Where is your factory located ? How can I visit there ?
  A:Our factory is located in Shenzhen city ,We ofen  attend the Exhibition also we can talk there .
