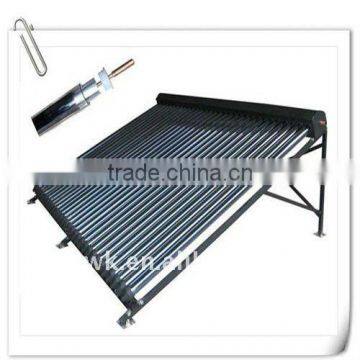

heat pipe solar collector

FOB Price

US$ 120 - 260 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Wankang
Model Number	WCD	Type	Pressurized
Application	Water Heater	Pipe Material	Copper

Product Description

solar collector technical details:

1. Vacuum tube absorbs the solar radiation and transforms it into heat energy.Then it transfers the energy to the heat tube,and the heat tube transfers it to the working media. Working media is forced to circulate by the circulation pump,and heat the tanks water.

2. Pressure-bearing operation:high pressure-bearing technology does not limit installation height, heated water operate under high pressure, has high current and has comfortable bath; vacuum tube does not leak water,does not storescale and has not tube explosion.The whole machine has strong anti-freezing capability,has more stable operation.

3. Optimized appearance design:all-round industrial shape design is handsome and fully considers the human-machine engineering method factor.

4. Heat-tube heating: adopt heat-tube heating technology,has low starting temperature, rapid diathermancy and high heat efficiency.

5. Integrate with building more perfectly:collector separates from water tank and achieves integration with architecture in true sense and form an integrated part of architecture

Material:

Manifold material and thickness	aluminum alloy-2.0mm/ Stainless steel 304 2B- 0.8mm
Header pipe material and thickness	Diameter:32mm, thickness 1.0mm copper pipe
Heat pipe material and thickness	Diameter:14mm, thickness 0.5mm copper pipe
Insulation	Polyurethane foam 50mm or Rock wool
Test pressure and work pressure	Test pressure 9Bar, work pressure 6bar to 8bar
Frame material and thickness	Aluminum alloy-2.0mm/ Stainless steel-1.2mm
Collector mounting	Flat roof/slope roof
Inlet and outlet	1/2’’ OR 3/4’’
Hail resistance:	25mm
Coating of vacuum tube:	QB-AL-SS/CU-47/1500/58/1800
