Copper Core Flat plate Solar Product(WPB)

FOB Price

US$ 180 - 180 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

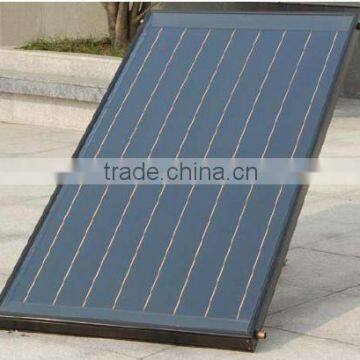

Copper Core Flat plate Solar Product(WPB)
1. CE
2. Pressurized
3. Copper absorber

Blue Coating Flat plate Solar Collector(WPB)

The Flat-Plate system comprises an insulated, weatherproof box containing a dark absorber plate under one or more transparent or translucent covers.

Water or conducting fluid passes through pipes located below the absorber plate. As the fluid flows through the pipes it is heated.

This collector, although inferior in many ways to evacuated tube collectors, is still the most common type of collector in many countries.

Specifications:

Measurement	2000100080mm
Profile Area	2.0m²
Absorb Area	1.8m²
Absorb Fin	Red Copper TP2, 7pcs
Size of Absorb Fin	1400.31840mm
Coating of Absorb Fin	Blue Coating
Flowing Tube	φ25*0.60, Red copper TP2
No. of Flowing Tube	7pcs
Header Tube	φ10*0.50, Red copper TP2
Connections	G3/4" female
Cover glass	Low iron tempered patterned glass, 4mm thickness
Frame	aluminum alloy
Frame Colour	Black or Silver
Side Insulation	foam
Temperature of Operation	-35°C-120°C
Working Pressure	0.6MPA
Test Pressure	1.2MPA
Absorption Coefficient	≥95%
Emisssion Coefficient	≤ 5%
Insulation	glass fiber, polyurethane
Material of Back Cover	0.3mm thick galvanized steel
