Colored Steel Flat Solar Product(WF-PB)

FOB Price

US$ 140 - 290 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Yihao sun
Model Number	WPB	Type	Flat Panel
Application	Water Heater	Pipe Material	PVC

Product Description

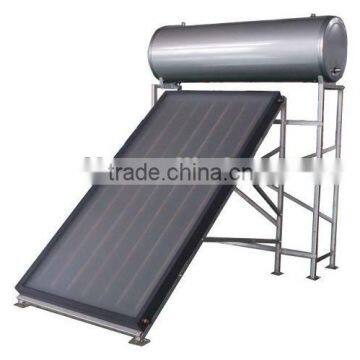

Colored Steel Flat Solar Product(WF-PB)

The Flat-Plate system comprises an insulated, weatherproof box containing a dark absorber plate under one or more transparent or translucent covers. Water or conducting fluid passes through pipes located below the absorber plate. As the fluid flows through the pipes it is heated. This collector, although inferior in many ways to evacuated tube collectors, is still the most common type of collector in many countries.

Series	Model	Specification
FC Flat Plate Solar Collector(coating: black chrome)	FC207	2m2, 70mm thickness of Al frame
	FC208	2m2, 80mm thickness of Al frame
	FC209	2m2, 90mm thickness of Al frame

Model	Total area (m2)	Dimension (LWH)(mm)	Absorption Coefficient	Emission Coefficient	Weight (kg)	Insulation Layer(mm)	Material Thickness(mm)
FC207	2.0	1060200070	≥95%	≤10%	31	30	0.8
FC208	2.0	1060200080	≥95%	≤10%	32	40	1
FC209	2.0	1060200090	≥95%	≤10%	35	50	1.5

Absorber plate	Red Copper TP2
Absorber Coating	black chrome
Flowing tube	φ25*0.60, Red copper TP2
Header tube	φ10*0.50, Red copper TP2
Connections	G3/4" female
Cover glass	Low iron,tempered patterned glass with 4mm thickness
Frame	aluminum alloy
Insulation	glass fiber, polyurethane
Side Insulation	foam
working pressure	0.6MPA
Test pressure	1.2MPA
