Home > Products > Laminating Machine > Multiwall TPU And PVC Laminating Machine
Multiwall TPU And PVC Laminating Machine
- ShangHai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | CHUANRI | Model Number | DTH-320III | |
| Voltage | 220v/50hz | Power(W) | 500W | |
| Dimension(L*W*H) | 1550*1100*1520mm | Weight | 450KGS | |
| Certification | CE Certification | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

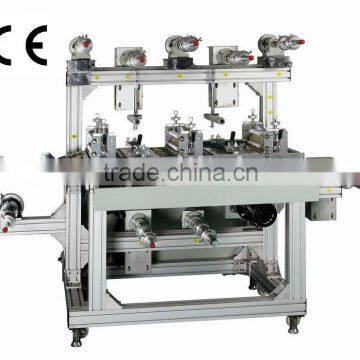

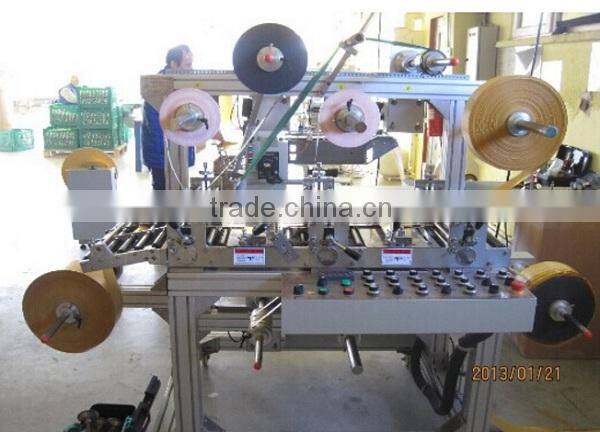

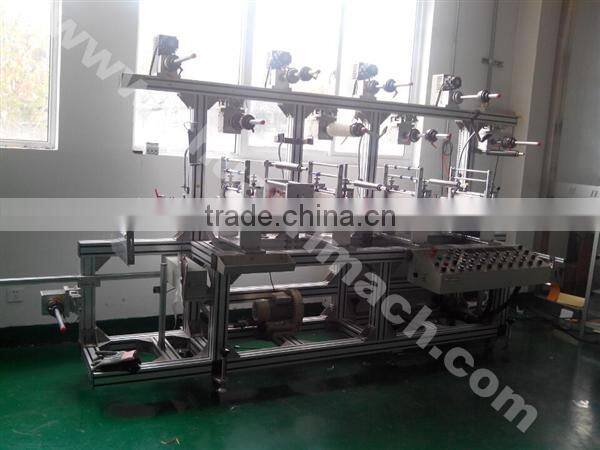

Multiwall TPU And PVC Laminating Machine
Main Parameters:
Model | 320 two group aluminum shelf | 320 three group aluminum shelf | 420 two group aluminum shelf | 420 three group aluminum shelf |
Max width (mm ) | 320 | 320 | 420 | 420 |
Max diameter (mm ) | 450 | 450 | 450 | 450 |
Main power ( KW) | 0.5 | 0.5 | 0.5 | 0.5 |
Precision (mm ) | ±0.10 | ±0.10 | ±0.10 | ±0.10 |
Size (mm ) | 1550*1100*1520 | 2000*1100*1520 | 1550*1200*1520 | 2000*1200*1520 |
Voltage ( V ) | 220 | 220 | 220 | 220 |
Functional Characteristics:
This machine is a special complex equipment for adhesive tape plastering productsin such electronic label industry as mobile phone, computer and LCD. Magnetic powder tension control is adopted for the rolling and up-wrap. Single-faced glue and double faced glue can be laminated. It has the function of receiving the bottom sheet and laminating many strips at one time and partially lamination coating.
