Laminating Film Roll Cutting Machine (Laminate-Die Cut-Rewind)
- ShangHai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Slitting Rewinder | |
| Computerized | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | CHUANRI | Model Number | MQ-320BII | |
| Voltage | 380V | Power(W) | 3KW | |
| Dimension(L*W*H) | 1990*1920*1450mm | Weight | 1500kg | |
| Certification | CE | Warranty | 1 Year, 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

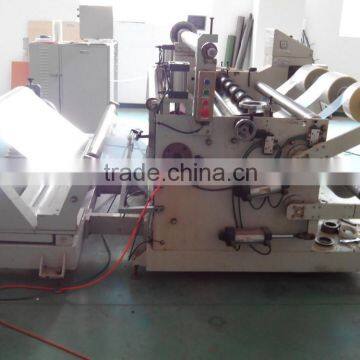

Laminating Film Roll Cutting Machine (Laminate-Die Cut-Rewind)
Model | 320BII |
Max Feeding Width(mm) | 320 |
Cutting Area(mm) | 300*300 |
Cutting Speed(T/M) | 30-170 |
Position Accuracy(mm) | ±0.10 |
Power of Main Engine(kw) | 3 |
Size(mm) | 2300*1250*1500 |
Voltage(V) | 380 |
Functional characteristics:
This machine enjoys multi-layer sticking, partial sticking, multi-strip tape sticking, etc. The imported motor is used for the receiving ( separating ) bottom sheet of sticking film, Feeding-filming( enjoying multi-layer sticking and partial sticking) -die cutting- waste draining- slitting- rolling, all of them are completed by the computer control by one turn.
Scope applicable:
Various insulating materials such as electronic shield materials, PVC, film, Mylar, cooper foil, aluminum foil, foam, etc.
