PCB Insulations Tape And DUPONT Tape Film Die Cutter Machine
- ShangHai
- T/T Credit Card
You May Like
-
Die Cutter For Adhesive Tape
-
Die Cut Double Sided Adhesive Foam From Roll To Sheet With Punching
-
Velcro Self Adhesive Back Film Half Cut Through Cut Die Cutting Machine
-
Automatic Gaskets Die Cutter Making Machine For Automobiles
-
Cylinder Head Gaskets, Exhaust Manifold Gaskets Die Cutting Machine
-
Bike Decal Sticker Die Cutting Machine
Product Details
| Material | Polyester | Use | Warning | |
| Adhesive Side | Double Sided | Adhesive | Silicone | |
| Adhesive Type | Hot Melt, Pressure Sensitive | Feature | Antistatic | |
| Design Printing | No Printing | Place of Origin | Jiangsu, China | |
| Brand Name | CHUANRI | Model Number | MQ-320BII |
Product Description

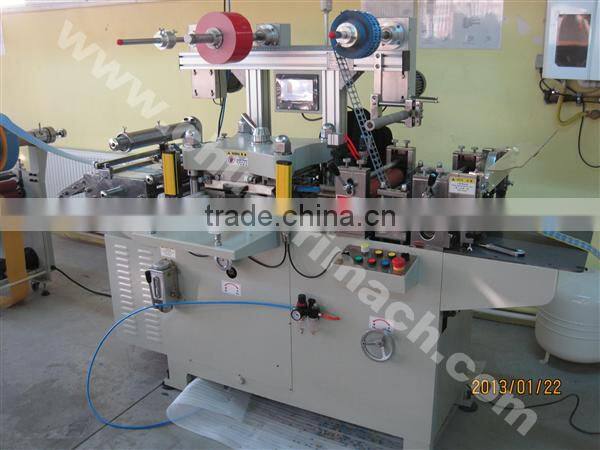

PCB Insulations Tape And DUPONT Tape Film Die Cutter Machine
Technical Data:
Model | 320BII | 420BII |
Max Feeding Width ( mm ) | 320 | 420 |
Cutting Area ( mm ) | 300*300 | 400*400 |
Cutting Speed ( T/M) | 30-170 | 30-170 |
Position Accuracy ( mm ) | ±0.10 | ±0.10 |
Power of Main Engine ( kw ) | 2.2 | 3 |
Size ( mm ) | 2300*1250*1500 | 2550*1450*1650 |
Voltage (V ) | 380 | 380 |
Functional characteristics:
This machine is suitable for multi strips laminating, partial laminating, multi-strip tape sticking, etc.
Imported motor is used for the receiving ( separating ) bottom sheet of adhesive film.
Feeding-Laminating( Multi strips laminating or partial laminating are workable) -die cutting- drain wastage- slitting or rolling, all of them are completed by the computer at the same time.
Scope applicable:
Various insulating materials such as electronic shield materials, PVC, film, Mylar, cooper foil, aluminum foil, foam, etc.
Extra function: Punch:
After attach with the punch equipment, the machine can be used for punch the wastage automatically.

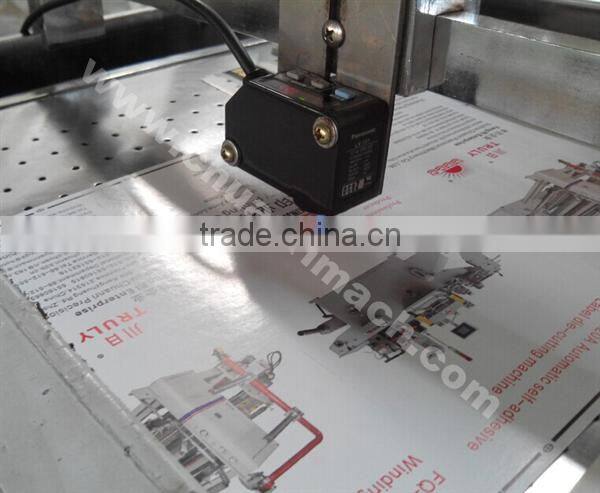

Extra spare part: Sensor.
With this part, the machine can be used for die cut printed material.

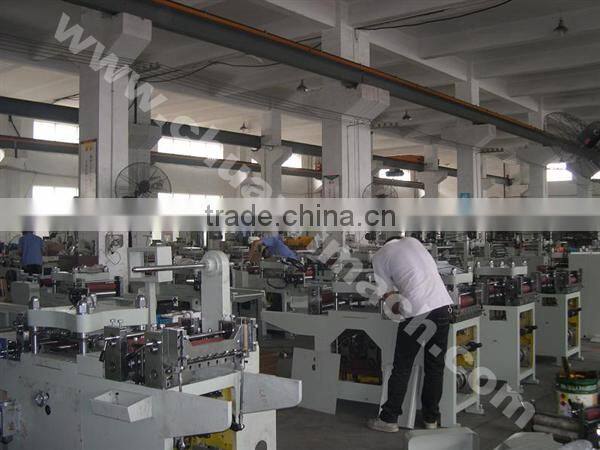

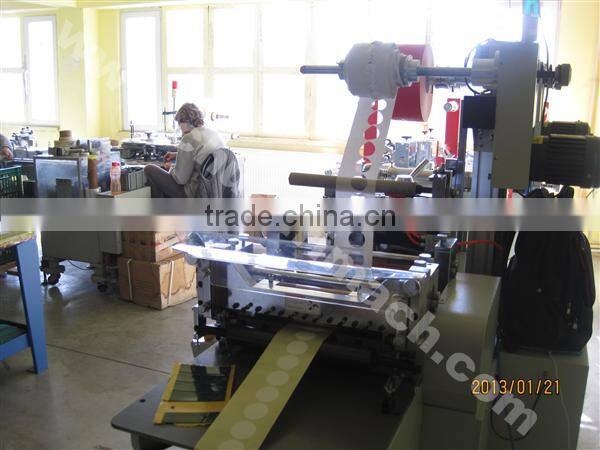

Work shop:
We have a big work shop, most of the spart parts of the die cutting machines are produced by ourselves. Here are some pictures of our workshop.
die cutting the tapes:
