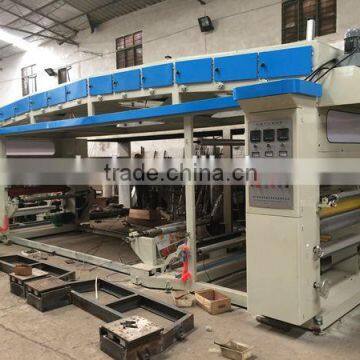

Extrusion Laminating Machine With High Speed

 Extrusion Laminating Machine With High Speed

Feature

Extrusion Laminating Machine With High Speed

   1. Component: face material unwinding, bottom material unwinding, composite film rewinding all use automatic magnetic powder break tension control system, composite rewinding use torque motor.

   2. Meters, laminating speed and tension auto display.

   3. Glue and laminating use double frequency synchronization.

   4. Single position unwind and rewind

   5. Electric, photo, air integrated design, have perfect security function

   6. Independent motor drive coating roller, coating roller synchronous and substep switch automatically

   7. Arch oven, bottom open

Main component

Extrusion Laminating Machine With High Speed

Fist material

1. Independent single position unwinding, photoelectric auto edge correction, automatic magnetic powder tension control, Max unwinding width: 800mm, Max unwinding diameter: 600mm

2. High strength guide roller

3. Anilox coating, scraper can adjust, and swing left to right automatic

4. Active oven guide roller, Electricity heating, 3 part independent control, temperature can adjust, oven length 6m, bottom open.

Second material

1. Independent single position, magnetic powder tension control, Max unwinding width: 800mm, Max unwinding diameter: 600mm

2. Hot drum use hot oil heating, temperature can adjust, Max is 70°

3. Single position torque motor rewind, Max width: 800mm, Max diameter: 800mm

4. Main drive: Variable speed motor 5.5KW, frequency control 5.5kw

5. Anilox roller drive: Variable speed motor 3.7KW, frequency control 2.2kw

6. Rewinding motor: 40KG torque motor

7. Other pneumatic component: Zhejiang Yishida

8. Contactor: CHNT

9. Electric components: CHNT

10. Motor: Shanghai

 Shipment

 Company Information

 XinTai Printing Machinery Co., Ltd, which specialize in printing machine, slitting machine for more than 10 years. It locates in Ruian city, Wenzhou city, Zhejiang province. Quality first, customre supreme is our service guidline. We are looking forward to create a brillant future with our perfect product and good after-sale service.

Advantage & services

 1. One Year warranty.

 2. Our engineers available to service machinery  overseas.

 3. The training Class for operating will be supplied about one week.

 4.Our payment terms: T/T 30% in advance, the remaining part will be paid before shipment.
