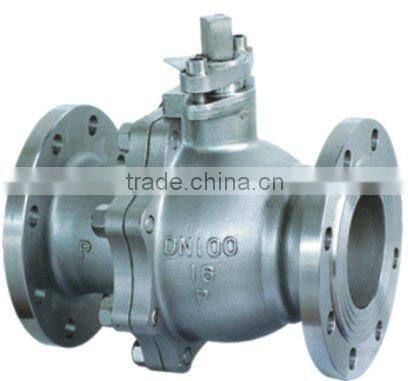

Hydraulic/manual/pneumatic/electric Stainless Steel Floating Ball Valve

Specifications

Detailed Product Description

1.Simple structure, good sealing
2.Small volume, light weight, easy to installation of pipes
3.Circulation ability big

     Ball valve is floating ball, in the medium pressure effect, but the ball has certain physical and tight pressure in the export displacement of the seal surface, ensure outlet seal.

    Floating ball of ball valve of simple structure, good sealing, but work under the loads of medium sphere to all export sealing ring, so want to consider sealing ring material can withstand sphere of medium load, in be impact under high pressure, the ball can happen migration. This structure, generally applied in voltage ball valve.

   The main characteristic of ball valve is itself compact structure, reliable sealing, simple structure, convenient maintenance, seal face sphere and often closed in the state, not easy be medium erosion, easy operation and maintenance, suitable for water, solvents, acid and natural gas general working medium, and also applies to working conditions of the medium, such as oxygen, hydrogen peroxide, methane and ethylene and so on, widely used in various industries. Ball valve body can be whole, also can be combined.

 Product feature

• of the valve in, the flow of ball valve least resistance, the diameter ball valve opened, the sphere channel, valve body channel and the connection pipe diameter and into a equal diameter, almost no loss of media through
• ball valve can be fully open all spin 90 °, opening and closing fast. And the same specifications of the gate valves, globe valves, ball valve is small volume, light weight, easy to pipe installation
• seat: gather years manufacturing experience and design of ball valve seat and to ensure that the valve seal, low friction coefficient, operating torque is little, a variety of the seat material, to adapt the scope.
• switch and correct the handle: the flat head stem, and handle connection will not misplace, so as to ensure the handle of the switch and the state of the instructions to a speech.
•  the locking device: to prevent incorrect operation switch valve, the valve is fully open position, in all lock hole, to ensure that the valve is in the correct position.
•  stem the fly structure: stem to remove theatrical makeup and costume type, prevent fly out of pressure, and after the fire, and the body form metal contact, ensure stem seal.
• ball valve with a round hole sphere as open-close part, in stem drive next ball valve stem center around 0 to rotate 90 degrees, complete the opening and closing functions;
• Has the characteristics of compact structure switch quickly, rotating 90 degrees, can be close the valve, cut off the line media; Sphere passage diameter and the same size as the pipeline, small flow resistance, circulation ability; Stem to remove theatrical makeup and costume type, to eliminate the stem wear out of the accident happened, and to ensure the safe operation.
