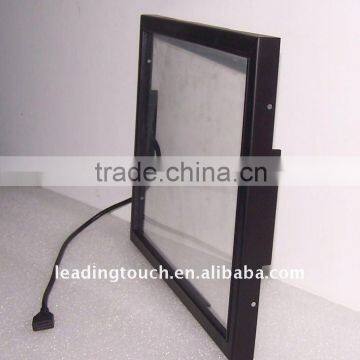

12.1 multitouch ir touch bezel for touch monitors

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 200000 Piece / Pieces per Month
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	LeadingTouch
Model Number	TB-1258		Type	Other, touch frame for touch monitor

Product Description

Specifications

TouchBezel is Leadingtouch patent solution for easy integration to a touch display.

TouchBezel is Leadingtouch patent solution for easy integration to a touch display. Touchscreen is sealed inside top quality metal or plastic frame with customer assembly holes around, which is easy to assembly to the rear cover of customer’s display system by some screws. With Leadingtouch touchbezel, you may no need to custom another front cover for touchscreen integration and all integration process is as easy as assembly a front cover to your system’s rear cover. Now we have M type, L type and P type touchbezel for your choice to convenient your assembly.

Leadingtouch multouch infrared touch bezel, integrated with Leadingtouch superior multitouch infrared touchscreen, is drift-free quick response and of high resolution. Its dustproof, waterproof, anti-vandal performances ensure it works well in harsh environment where dust and liquid is prevalent. All touchbezels combine with Leadingtouch Comb controller card, bring flexibility and convenience for you to use either USB or RS232 interface.

Size	Product Number	Touch Type	Frame Material	Active Area		Frame size			Glass Thichness (mm)
Size	Product Number	Touch Type	Frame Material	Heiglt (mm)	Width (mm)	Heiglt (mm)	Width (mm)	Depth (mm)	Glass Thichness (mm)
10.4"	TB-1058	Infrared	Plastic	159	212	224	277	23.5	3
12.1"	TB-1258	Infrared	Plastic	185.2	246.4	250.2	311.4	23.5	3
15"	TB-1558	Infrared	Plastic	228	304	293	369	23.5	3
17"	TB-1758	Infrared	Plastic	270	338	339	407	23.5	3
19"	TB-1958	Infrared	Plastic	301	376	370	445	23.5	3
19”W	TB-1968	Infrared	Plastic	255	409	324	478	23.5	3
19”W	TB-1969	Infrared	Plastic	255	408	309	461	24	4
22”	TB-R2200MU	Infrared	Metal	300	477.7	362	539.7	23.5	3
24”	TB-R2400MU	Infrared	Metal	337	531	399	593	24	3
26”	TB-R2600MU	Infrared	Metal	325	575	393	643	21	4
30"	TB-R3000MU	Infrared	Metal	404	645	472	713	21	4
32"	TB-R3200MU	Infrared	Metal	397	702	465	770	21	4
37"	TB-R3700MU	Infrared	Metal	461	820	529	888	21	4
40"	TB-R4000MU	Infrared	Metal	500	888	568	956	21	4
42"	TB-R4200MU	Infrared	Metal	527	934	595	1002	21	4
46"	TB-R4600MU	Infrared	Metal	577	1023	645	1091	21	4
47"	TB-R4700MU	Infrared	Metal	592	1048	660	1116	21	4
50"	TB-R5000MU	Infrared	Metal	650	1132	718	1200	21	4
52"	TB-R5200MU	Infrared	Metal	654	1158	722	1226	21	4
55"	TB-R5500MU	Infrared	Metal	685	1214	755	1284	24.5	4
58"	TB-R5800MU	Infrared	Metal	723	1287	793	1357	24.5	4
60"	TB-R6000MU	Infrared	Metal	751	1330	821	1400	24.5	4
65"	TB-R6500MU	Infrared	Metal	1005	1340	1075	1410	24.5	4
70"	TB-R7000MU	Infrared	Metal	859	1543	929	1613	24.5	4
80"	TB-R8000MU	Infrared	Metal	1000	1780	1074	1854	26.5	4
