Surface Acoustic Wave (SAW) Touch Panel Controller

FOB Price

US$ 30 - 50 / Piece

1 Piece(Min. Order)

Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	LeadingTouch
Model Number	6000U Surface Acoustic Wave SAW USB Controller

Product Description

Specifications

1, SAW usb controller for all size
2, can use elo and 3m driver

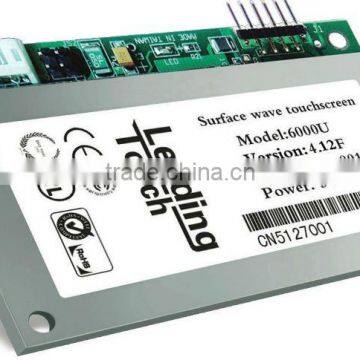

LeadingTouch 6000U Sreface Acoustic Wave SAW USB interface Controller, the controller supplied by Leadingtouch, is designed for Surface Acoustic Wave touchscreen, can support full series of SAW touch product .

6000U controller providing USB interface with many superior advantages such as stable performance and fast reaction.

6000U Touchscreen USB Controller Specification:

Environmental Conditions
Temperature	Operating Range0°C ~ 65°C Storage Range-25°C ~ 85°C
Humidity	Operating Range10%~90% RH (no dew falls) Storage Range10%~90% RH (no dew falls)
Altitude	Operating Altitude10,000 feet (3048m)
Shock and Vibration	Three axis sine wave, 50 Hz to 2kHz, 1G, 2 minutes / Octave with dwell on resonances.
Flammability	The PCB substrate and all plastic components, such as headers and connectors are rated UL 94 V0.

Electrical Characteristics
Supply Voltage	+5VDC (+4.75V to +5.25V)
Supply Curren	85 mA, typical at +5V DC Max . current : 150 m
Electrostatic Protection	Per EN 61000-4-2, 1995 : Meets Level 4 (15 kV air / 8 kV contact discharges)
Interface	USB 1.1 (Full Speed) Plug and play compatible
Touch Resolution	4096 x 4096, size independent
Conversion Time	Approximately 15ms per coordinates set
Reliability	MTBF greater than 300,000 hours per MIL-HDBK-217-F2 using the part stress calculation method for ground benign environment with an ambient temperature of 25°C

Mechanical Characteristics
Construction	Fourlayer surface-mount design with internal ground plane for EMI suppression.
Dimensions	PCB87 x 56 x 12mm Refer to 6000U Drawing
Standard Cables	Standard external USB cable connecting the SAW USB controller with the computer USB port:
Connectors USB Output	Connector : P2 1X4,2.0mm Female connector on board for connection with USB port.
Touchscreen	connector : P3 A dual row by six position header with 0.635 mm square pins spaced on 2.54 centers for connection with touch panel.
