Home > Products > saw touch screen > Leadingtouch 19" 16:10 Water Proof Surface Acoustic Wave (SAW) Touch Panel SA1911W30-G4

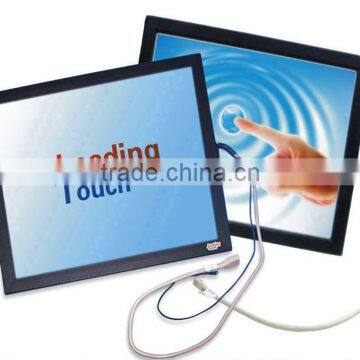

Leadingtouch 19" 16:10 Water Proof Surface Acoustic Wave (SAW) Touch Panel SA1911W30-G4
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T
You May Like
-
Leadingtouch 20" 4:3 Water Proof Dust Proof Surface Acoustic Wave (SAW) Touch
-
Leadingtouch 20" WaterProof Surface Acoustic Wave (SAW) Touch Screen
-
Leadingtouch 21.3" 4:3 Wide Screen Waterproof Surface Acoustic Wave (SAW) Touch Panel SA2130D30-G4
-
Leadingtouch 22" 16:10 Wide Screen Water Proof Dust Proof Surface Acoustic Wave (SAW) Touch SA2200W30-G4
-
Leadingtouch 22" Water Proof Surface Acoustic Wave (SAW) Touch screen
-
Leadingtouch 21.5" Dust Proof Surface Acoustic Wave (SAW) Touch Panel SA2150D30-G4
Product Details
| Place of Origin | Beijing, China | Brand Name | LeadingTouch | |
| Model Number | SA1911W30-G4 | Type | Other, Water Proof Dust Proof SAW Tocuh Panel |
Product Description
Specifications
1.Use special material to close reflecting the stripe, effective prevent dust and waterpliant with IEC IP65 standards
LeadingTouch 19" 16:10 Wildescreen Water Proof and Dust Proof Surface Acoustic Wave (SAW) Touchscreen
SA1911W30-G4
The reflectors and transducers are sealed inside the metal or plastic frame. The frame around the panel prevents dust and dirt from accumulating on the reflectors and transducers. Special glue applied between frame and touchscreen around the active area, make it totally dustproof and waterproof.
SA1911W30-G4 19" 16:10 Widescreen Waterproof and Dustproof SAW Touch Panel | |
Frame Dimensions | 304 x 458(mm) |
Active Dimension | 255 x 409(mm) |
Fit in with | 19" 16:10 Widescreen TFT LCD Panel display device |
| Leadingtouch Water-Proof SAW Touchscreen products List | ||||||||||
| Size | Rate | Model | Type | Thickness | Outer Area | Viewable Area | Active Area | |||
| Heiglt | Width | Heiglt | Width | Heiglt | Width | |||||
| (INCH) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| 7" | 16:10 | SA0700W30-G4 | Waterproof | 6.2 | 135.5 | 196.5 | 92 | 153 | 92 | 153 |
| 8" | 4:3 | SA0800W30-G4 | Waterproof | 6.2 | 166 | 209.5 | 122.5 | 163 | 122.5 | 163 |
| 8.4" | 4:3 | SA0840W30-G4 | Waterproof | 6.2 | 179.5 | 220.5 | 136 | 177 | 136 | 177 |
| 10.2" | 16:10 | SA1021W30-G4 | Waterproof | 6.2 | 175 | 265.3 | 131.5 | 221.8 | 131.5 | 221.8 |
| 10.4" | 4:3 | SA1040W30-G4 | Waterproof | 6.2 | 212.5 | 268 | 163.8 | 219 | 163.8 | 219 |
| 12.1" | 4:3 | SA1210W30-G4 | Waterproof | 6.2 | 234 | 297 | 185 | 248 | 185 | 248 |
| 12.1" | 16:10 | SA1211W30-G4 | Waterproof | 6.2 | 208.2 | 305.5 | 165.2 | 262 | 165.2 | 262 |
| 15" | 4:3 | SA1510W30-G4 | Waterproof | 6.2 | 275 | 351 | 233 | 309 | 233 | 309 |
| 15.4" | 16:10 | SA1540W30-G4 | Waterproof | 6.2 | 254.5 | 378.5 | 205.5 | 329.7 | 205.5 | 329.7 |
| 15.6" | 16:9 | SA1560W30-G4 | Waterproof | 6.2 | 242 | 392.7 | 193.5 | 344.2 | 193.5 | 344.2 |
| 17" | 5:4 | SA1700W30-G4 | Waterproof | 6.2 | 315 | 382.5 | 271.5 | 339 | 271.5 | 339 |
| 16:10 | SA1711W30-G4 | Waterproof | 6.2 | 278.5 | 416.3 | 230 | 367.8 | 230 | 367.8 | |
| 18.5" | 16:9 | SA1850W30-G4 | Waterproof | 6.2 | 280.9 | 460.3 | 230 | 409.8 | 230.4 | 409.8 |
| 19" | 5:4 | SA1910W30-G4 | Waterproof | 6.2 | 354.5 | 430.5 | 304 | 380 | 304 | 380 |
| 16:10 | SA1911W30-G4 | Waterproof | 6.2 | 304 | 458 | 255 | 409 | 255 | 409 | |
| 20" | 4:3 | SA2010W30-G4 | Waterproof | 6.2 | 357.5 | 459.5 | 307 | 409 | 307 | 409 |
| 16:9 | SA2011W30-G4 | Waterproof | 6.2 | 300 | 494 | 249.4 | 443.6 | 249.4 | 443.6 | |
| 21.5" | 16:9 | SA2150W30-G4 | Waterproof | 6.2 | 322 | 531 | 271.5 | 480.5 | 271.5 | 480.5 |
| 22" | 16:10 | SA2200W30-G4 | Waterproof | 6.2 | 346.5 | 523.5 | 296 | 473 | 296 | 473 |
