Home > Products > saw touch screen > Leadingtouch 10.4" IP65 WaterProof Surface Acoustic Wave SAW Touch screen

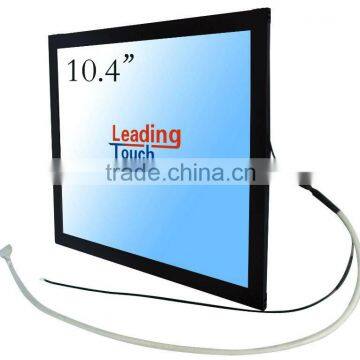

Leadingtouch 10.4" IP65 WaterProof Surface Acoustic Wave SAW Touch screen
US$ 40 - 60
/ Piece
1 Piece(Min. Order)
- Tianjin China
- T/T
You May Like
-
Leadingtouch 10.2" Water Proof Dust Proof Surface Acoustic Wave (SAW) Touch Panel SA1020W30-G4
-
Leadingtouch 12.1" IP65 Water Proof Surface Acoustic Wave SAW Touch
-
Leadingtouch 12" 16:10 Waterproof Surface Acoustic Wave (SAW) Touch Panel SA1211W30-G4
-
Leadingtouch 13.8" Water Proof Dust Proof Surface Acoustic Wave (SAW) Touch Panel SA1380W30-G4
-
Leadingtouch 19" Water Proof SAW Touch Screen SA1910W30-G4
-
Leadingtouch 17" IP65 Waterproof Surface Acoustic Wave (SAW) Touch SA1700W30-G4
Product Details
| Place of Origin | Beijing, China | Brand Name | LeadingTouch | |
| Model Number | SA1040W30-G4 | Type | Other, Water Proof Dust Proof SAW Tocuh Panel |
Product Description
Specifications
1.Use special material to close reflecting the stripe, effective prevent dust and waterpliant with IEC IP65 standards
LeadingTouch 10.4" Water Proof and Dust Proof Surface Acoustic Wave (SAW) Touchscreen SA1040W30-G4
The reflectors and transducers are sealed inside the metal or plastic frame. The frame around the panel prevents dust and dirt from accumulating on the reflectors and transducers. Special glue applied between frame and touchscreen around the active area, make it totally dustproof and waterproof.
| Leadingtouch Water-Proof Surfce Acoustic Wave (SAW) Touchscreen products List | ||||||||||
| Size | Rate | Model | Type | Thickness | Outer Area | Viewable Area | Active Area | |||
| Heiglt | Width | Heiglt | Width | Heiglt | Width | |||||
| (INCH) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| 7" | 16:10 | SA0700W30-G4 | Waterproof | 6.2 | 135.5 | 196.5 | 92 | 153 | 92 | 153 |
| 8" | 4:3 | SA0800W30-G4 | Waterproof | 6.2 | 166 | 209.5 | 122.5 | 163 | 122.5 | 163 |
| 8.4" | 4:3 | SA0840W30-G4 | Waterproof | 6.2 | 179.5 | 220.5 | 136 | 177 | 136 | 177 |
| 10.2" | 16:10 | SA1021W30-G4 | Waterproof | 6.2 | 175 | 265.3 | 131.5 | 221.8 | 131.5 | 221.8 |
| 10.4" | 4:3 | SA1040W30-G4 | Waterproof | 6.2 | 212.5 | 268 | 163.8 | 219 | 163.8 | 219 |
| 12.1" | 4:3 | SA1210W30-G4 | Waterproof | 6.2 | 234 | 297 | 185 | 248 | 185 | 248 |
| 12.1" | 16:10 | SA1211W30-G4 | Waterproof | 6.2 | 208.2 | 305.5 | 165.2 | 262 | 165.2 | 262 |
| 15" | 4:3 | SA1510W30-G4 | Waterproof | 6.2 | 275 | 351 | 233 | 309 | 233 | 309 |
| 15.4" | 16:10 | SA1540W30-G4 | Waterproof | 6.2 | 254.5 | 378.5 | 205.5 | 329.7 | 205.5 | 329.7 |
| 15.6" | 16:9 | SA1560W30-G4 | Waterproof | 6.2 | 242 | 392.7 | 193.5 | 344.2 | 193.5 | 344.2 |
| 17" | 5:4 | SA1700W30-G4 | Waterproof | 6.2 | 315 | 382.5 | 271.5 | 339 | 271.5 | 339 |
| 16:10 | SA1711W30-G4 | Waterproof | 6.2 | 278.5 | 416.3 | 230 | 367.8 | 230 | 367.8 | |
| 18.5" | 16:9 | SA1850W30-G4 | Waterproof | 6.2 | 280.9 | 460.3 | 230 | 409.8 | 230.4 | 409.8 |
| 19" | 5:4 | SA1910W30-G4 | Waterproof | 6.2 | 354.5 | 430.5 | 304 | 380 | 304 | 380 |
| 16:10 | SA1911W30-G4 | Waterproof | 6.2 | 304 | 458 | 255 | 409 | 255 | 409 | |
| 20" | 4:3 | SA2010W30-G4 | Waterproof | 6.2 | 357.5 | 459.5 | 307 | 409 | 307 | 409 |
| 16:9 | SA2011W30-G4 | Waterproof | 6.2 | 300 | 494 | 249.4 | 443.6 | 249.4 | 443.6 | |
| 21.5" | 16:9 | SA2150W30-G4 | Waterproof | 6.2 | 322 | 531 | 271.5 | 480.5 | 271.5 | 480.5 |
| 22" | 16:10 | SA2200W30-G4 | Waterproof | 6.2 | 346.5 | 523.5 | 296 | 473 | 296 | 473 |
