Home > Products > saw touch screen > Leadingtouch Anti Glare Surface Acoustic Wave (SAW) Touch Screen

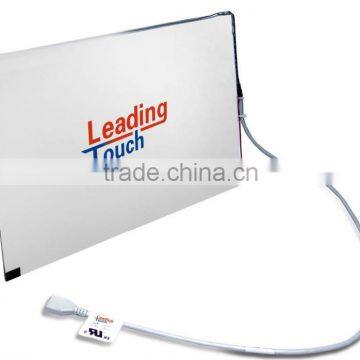

Leadingtouch Anti Glare Surface Acoustic Wave (SAW) Touch Screen
US$ 40 - 200
/ Set
1 Set(Min. Order)
- Tianjin China
- T/T
You May Like
-
Leadingtouch 15" 6mm Surface Acoustic Wave SAW Anti Vandal Waterproof IP65 Touch
-
LeadingTouch IP65 Waterproof Surface Acoustic Wave SAW Touch
-
LeadingTouch Dust Proof Surface Acoustic Wave SAW Touch
-
LeadngTouch 5"-26" Safe Anti Vandal Surface Acoustic Wave SAW Touch
-
Leadingtouch Surface Acoustic Wave SAW Touch Screen
-
Leadingtouch 15" Anti Vandal Safe Surface Acoustic Wave SAW Touch Screen SA1510T12-G6-ZT1
Product Details
| Place of Origin | Beijing, China | Brand Name | LeadingTouch | |
| Model Number | anti glare saw touch panel | Type | Other, Anti Glare Surface Acoustic Wave(SAW) Touch Panel |
Product Description
Specifications
1, Anti Glare standards; dustproof and waterproof saw touch2, 5"-26" all products had anti glare model.
| Size | Rate | Model | Type | Thickness | Outer Area | Viewable Area | Active Area | |||
| Heiglt | Width | Heiglt | Width | Heiglt | Width | |||||
| (INCH) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| 5" | 16:9 | SA0510S12-G4 | Standard | 4 | 79.4 | 134 | 67 | 116 | 65 | 114 |
| 6.4" | 4:3 | SA0640S12-G4 | Standard | 4 | 132 | 170 | 113 | 150 | 100 | 136 |
| 7" | 16:10 | SA0700S12-G4 | Standard | 4 | 124 | 183 | 95 | 156 | 92 | 153 |
| 8" | 4:3 | SA0800S12-G4 | Standard | 4 | 150 | 188 | 125.5 | 166 | 122.5 | 163 |
| 8.4" | 4:3 | SA0840S12-G4 | Standard | 4 | 170 | 207 | 141 | 182 | 136 | 177 |
| 9" | 16:10 | SA0900S12-G4 | Standard | 4 | 142 | 220 | 121 | 199 | 119 | 197 |
| 10.2" | 16:10 | SA1021S12-G4 | Standard | 4 | 155.5 | 242 | 135.5 | 225.8 | 131.5 | 221.8 |
| 10.4" | 4:3 | SA1040S12-G4 | Standard | 4 | 188 | 245 | 167.8 | 223 | 166 | 221 |
| 12.1" | 4:3 | SA1210S20-G3 | Standard | 3 | 211 | 277 | 189 | 252 | 187 | 248 |
| 16:10 | SA1211S12-G4 | Standard | 4 | 186 | 281 | 167.2 | 266 | 165.2 | 262 | |
| 13.3" | 16:9 | SA1331S12-G4 | Standard | 4 | 193 | 317.5 | 168 | 297.5 | 165 | 293.5 |
| 15" | 4:3 | SA1500S20-G3 | Standard | 3 | 255 | 327 | 236.5 | 312.5 | 234.7 | 309.4 |
| 4:3 | SA1510S12-G4-KXD | Standard | 4 | 261 | 345 | 235 | 311 | 232 | 308 | |
| 15.4" | 16:10 | SA1540S12-G4 | Standard | 4 | 235 | 355 | 209.5 | 333.7 | 207 | 331.2 |
| 15.6" | 16:9 | SA1560S12-G4 | Standard | 4 | 230.5 | 378.5 | 197.5 | 348.2 | 193.5 | 344.2 |
| 17" | 5:4 | SA1710S12-G4 | Standard | 4 | 308 | 372 | 227 | 343 | 274 | 340 |
| 16:10 | SA1711S12-G4 | Standard | 4 | 267 | 402 | 234.1 | 371.8 | 230.1 | 367.8 | |
| 18.5" | 16:9 | SA1850S12-G4 | Standard | 4 | 259 | 435 | 234.5 | 413.5 | 230.4 | 409.8 |
| 19" | 5:4 | SA1900S12-G4 | Standard | 4 | 333 | 405 | 306.5 | 381.5 | 304.5 | 379.5 |
| 19" | 5:4 | SA1910S12-G4 | Standard | 4 | 340.5 | 412.5 | 308 | 383 | 304 | 380.5 |
| 16:10 | SA1911S12-G4 | Standard | 4 | 293 | 445 | 260 | 414 | 255 | 409 | |
| 20" | 4:3 | SA2010S12-G4 | Standard | 4 | 345 | 444 | 311 | 413 | 307 | 409 |
| 16:10 | SA2011S12-G4 | Standard | 4 | 312 | 471 | 278.9 | 441.4 | 274.9 | 437.4 | |
| 16:9 | SA2012S12-G4 | Standard | 4 | 285 | 476 | 253.4 | 447.6 | 249.4 | 443.6 | |
| 21.3" | 4:3 | SA2130S12-G4 | Standard | 4 | 361 | 464 | 328 | 436 | 323 | 431 |
| 21.5" | 16:9 | SA2150S12-G4 | Standard | 4 | 306.5 | 514 | 275.5 | 484 | 271.5 | 480 |
| 22" | 16:10 | SA2200S12-G4 | Standard | 4 | 328 | 500 | 300 | 477 | 298 | 475 |
| 24" | 16:10 | SA2400S10-G4 | Standard | 4 | 368 | 560 | 337 | 531 | 333 | 527 |
| 16:9 | SA2405S10-G4 | Standard | 4 | 344.5 | 573 | 303 | 535.5 | 299 | 531.5 | |
| 16:10 | SA2407S10-G4 | Standard | 4 | 362 | 553.5 | 328 | 522 | 324 | 518 | |
| 26" | 16:9 | SA2600S10-G4 | Standard | 4 | 371 | 620 | 333 | 585 | 329 | 581 |
LeadingTouch Anti-Glare SAW Touchscreen
. The reflectors and transducers are sealed inside the framedustproof
. The preferred solution for application, reliability and clarity.
. Pure-Glass construction delivers superior image clarity and light transmission.
. Works even if glass scratched.
. Stable Drift-Free operation, sensitively and fast touch response.
. Accurate touch position performance.
Advantage of LeadingTouch Anti-Glare SAW Touchscreen
. Surface Acoustic Wave Technology. Protected touchscreen and dustproof
. Superior image clarity with high light transmission
. Sensitive and fast response
. Durability, deep scratch resistance and abrasion
. Highest resolution
. Activated by finger, gloved hand, leather or soft stylus
. More than 50 million touches in a single point
. Dirt and splash sealed capability
Application of LeadingTouch Anti-Glare SAW Touchscreen
. Point-of-information kiosks
. Vending and ticket sales
. Electronic catalogs
. Gaming, lottery, and amusement
. Public pay phones
. Multimedia marketing
. Banking/financial transactions
. Industrial control rooms
. Computer-based training
