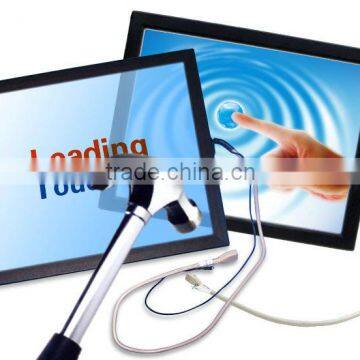

Leadingtouch 8.4" Anti Vandal Dust Proof Water Proof IP65 Surface Acoustic Wave(SAW) Protected Touch Panel SA0840P30-G6

SA0840P30-G6 IP65 Surface Acoustic Wave(SAW) Touch Panel

Frame Dimension

179.5 X 220.5(mm)

Active Dimension

136 X 177(mm)

Fit in with

8.4” TFT LCD Panel display device

Mechanical

Construction

Sensors are sealed inside Aluminum Alloy metal frame

Input Method

Finger or gloved hand (rubber ,cloth or leather)

Active Force

Stylus or Finger or Similar <85g

Ball Impact

No break by 1-pound steel ball dropping from 130 cm high, Meets UL-60950

Surface Hardness

Surface durability is that of glass, Mohs' hardness rating of 7

Durability

>70 million touches

Positional Accuracy

<1%

Touchpoint Density

>100,000 touchpoints/inch² (15,500 touchpoints/cm²)

Optical

Light Transmission

>90%

Visual Resolution

Clear surface: Excellent, with no noticeable degradation

Antiglare surface: 6:1 minimum

Gloss

Antiglare surface (curved or flat): 95  ±  15 gloss units or 65  ±  15 gloss units

Environmental

Temperature

Operating Range: -20°C ~ 70°C;

Storage Range: -40°C ~ 85°C

Relative Humidity

Operating Range: 5%~90% RH (no dew falls)

Storage Range: 5% to 95% RH (no dew falls)

Altitude

Up to 5,000m

Fire Retardation

Meets the requirements of UL 94HB

Electrical

Supply voltage

DC5V

Power Supply

USB or PS/2 Interface, power ripple max.200mV rms

Interface

Full Duplex USB 2.0 (Full Speed) Plug and play compatible

Serial RS-232. Baud Rate: 9600, 8 Data Bits, 1 Stop Bit, No Parity

Electrostatic Protection

15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)

Resolution

Based on controller resolution of 4096 x 4096

Agency Approvals

CE, FCC, Rohs
