Home > Products > Gas Regulators > Adjustable Gas Regulator With Meter
Adjustable Gas Regulator With Meter
- Ningbo Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Regulating | |
| Pressure | Low Pressure | Power | Pneumatic | |
| Material | Other, Die-cast aluminium | Temperature of Media | Medium Temperature | |
| Media | Gas | Port Size | DN15,DN20,DN25 according to EN 10226 | |
| Place of Origin | Zhejiang, China | Model Number | FRG/2MTZ,RG/2MTZ | |
| Brand Name | WASSERMANN |
Product Description

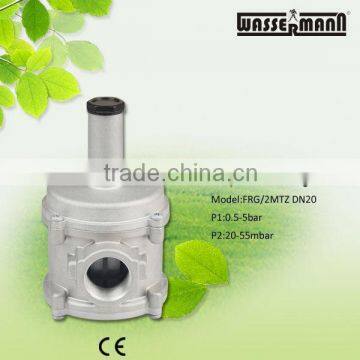

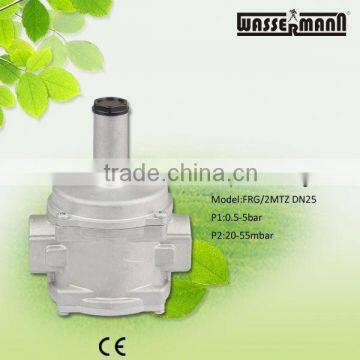

Adjustable Gas Regulator With Meter
Model : FRG/2MTZ,RG/2MTZ
Gas pressure closing regulator/filter regulator for small users.
EC certified according to EN 88-1
In conformity with the 2009/142/EC Directive (Gas Directive)
TECHNICAL DATA
• Use: not aggressive gases of the 3 families (dry gases)
• Threaded connections Rp: (DN 15 - DN 20 - DN 25) according to EN 10226
• Max. working pressure: 5bar
• Environment temperature: -15 ÷ +60 °C
• Class: A
• Group: 2
• Filtration: 50 μm (on request other filtration qualities)
• Filtration class: G 2 (according to EN 779)
MATERIALS
• Die-cast aluminium (UNI EN 1706)
• OT-58 brass (UNI EN 12164)
• 11S aluminium (UNI 9002-5)
• Nylon 30% glass fibre (UNI EN ISO 11667)
• NBR rubber (UNI 7702)
• Viledon
SPARE PART LIST
DIMENSIONS
SPRING DATA
EXAMPLE OF INSTALLATION
EACH REGULATOR IS PACKED BY A SMALL WHITE BOX
INNER BOX SIZE : 125x100x155mm
30PCS ONE CARTON
MASTER CARTON SIZE : 520x388x320mm
N.W. : 21KG/CTN
G.W. : 22KG/CTN
THE LAST BY PALLETS
