Product Details

Place of Origin	Hunan, China		Brand Name	WBQ
Model Number	SWDL 150		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.easily operation
2.application for digging&drilling
3.use for the solar power system project

Specifications

The spiral machine is base on the excavator system, which can complete digging and drilling work by different work devices.

Easy and flexible operation: all actions including travel, dozer, turntable swing, work devices, pile rotation and feed etc. are all controlled by advanced hydraulic pilot valve. Work operation is in the cabin which can reduce operating force and operator's load and advance the control stability.

1. Drill frame angle display is fit in the cab, which make operation clearly.

2. The machine is supplying special clamping fixtures for piles, easy assembling and disassembling, high efficiency.

3. The machine is supplying pile guiding device which can ensure the verticality of pile drill.

4. Safety and reliable key parts: YANMAR-3TNV82A engine from Japan, hydraulic system main pump, main valve, swing motor, travel motor are all from KYB Janpa.

hydraulic solar piling Parameter
Drilling Diameter	mm	76
Drilling Depth	mm	1800
Chassis
Wheel gauge	mm	1430
Track gauge	mm	1150
Crawler width	mm	250
Grounding clearance	mm	280
Dozer length	mm	1400
Travel Capacity
Max. Traction	KN	19
(Max/Min) Travel speed	Km/h	4.7/2.6
Climbing capacity	°	20
Feed
Length of feeding beam	mm	3400
Stroke	mm	2000
Speed	m/min	2
Rotation
Torque	N.m	1500
Speed	rpm	50
Engine
Model		YANMAR-3TNV82A
Displacement	L	1.331
Power/Rev.	kw/rpm	16/2200
Fuel tank volume	L	42.5
Turntable Swing	°	360
Dimension(LWH)	mm	5500X1400X3000
Machine Weight	kg	3000

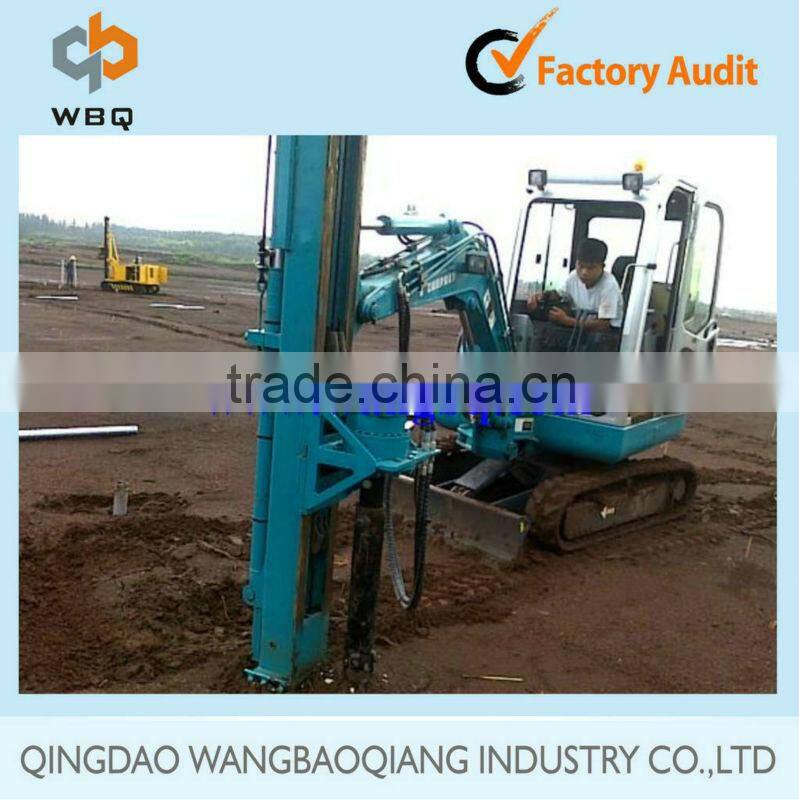

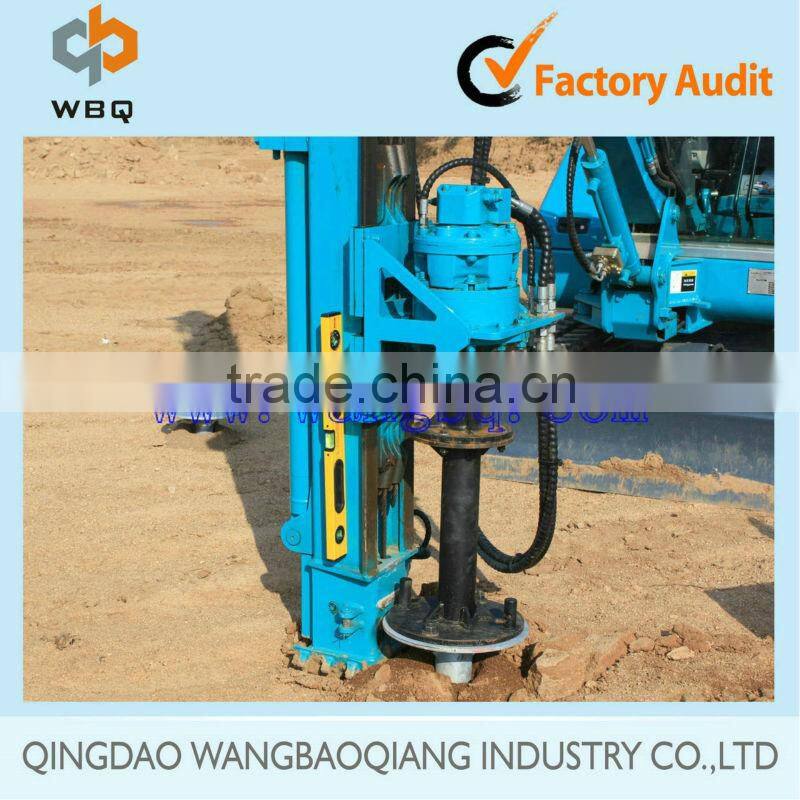

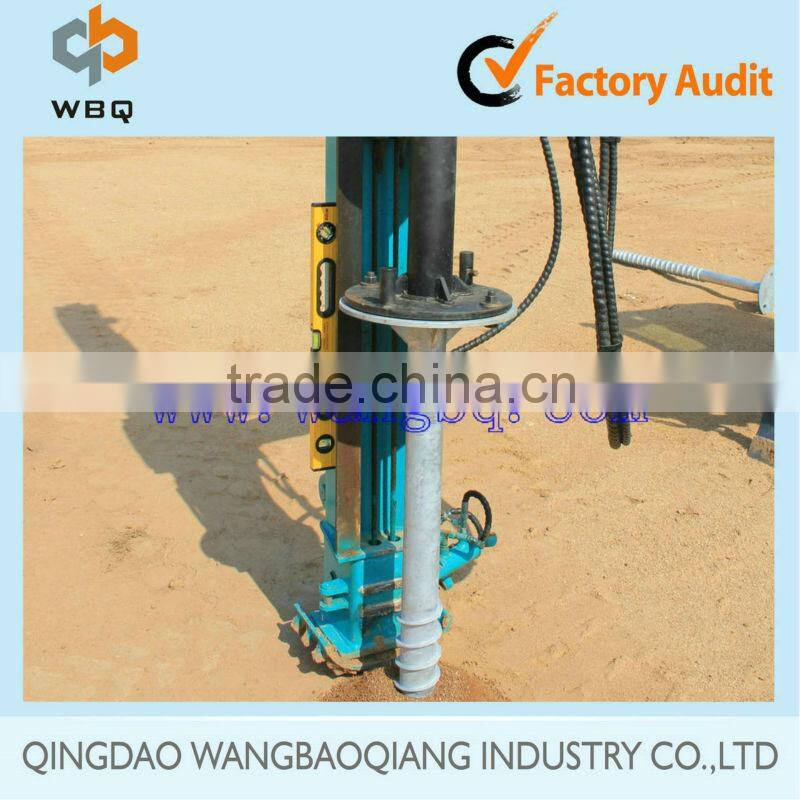

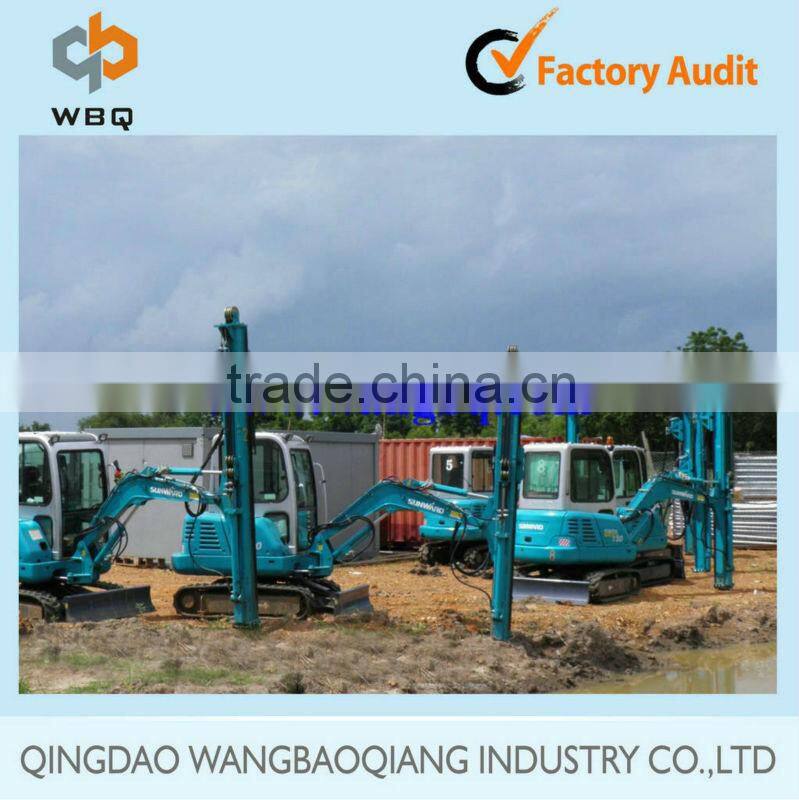

Picture shows

machine ground drilling machine ground drilling machine ground drilling machine ground drilling machine ground drilling
