Product Details

Place of Origin	Shandong, China	Brand Name	WBQ
Model Number	HD01	Type	Other, Auxiliary machine for ground anchor
Material	Steel	Diameter	68mm
Length	1000mm	Capacity	10000kgs

Product Description

Specifications

Electric-Driver Machine for Ground Screw Driling can dig and drill by changing certain parts and can drill ground screw.

Electric-Driver Machine for Ground Screw Driling

A.FUNCTIONAL DESCRIPTION .

WBQ ground screw drivers are designed to install or remove various sizes and types of WBQ ground screws.

B. ASSEMBLY

This driver is shipped completely assembled,only the counter torque devices to be fixed during drilling the ground screw. Detailed informations for assembly refer to attached video CD.

C. Drill out the ground screw

There is a reverser on the handle of host machine. When we push the reverser, the host machine will contrarotate. Then ground screw will be drilled out.

D. Control instrument regulation

When the ground screws work normally, the adjusting knob of control instrument can be adjusted to maximum. It can ensure the host machine output the biggest torque.

E. Technical Parameters

Rated Torque (Nm)

Rotation Speed

(r/min)

Rated Voltage

Rated Current

Square Head Size

Host Machine Net Weigh

t(kg)

Maximal Ground Screw

1500

8

220V/

60Hz

4A

25*25

10

Φ68*1000

F Three pattern of the counter torque device

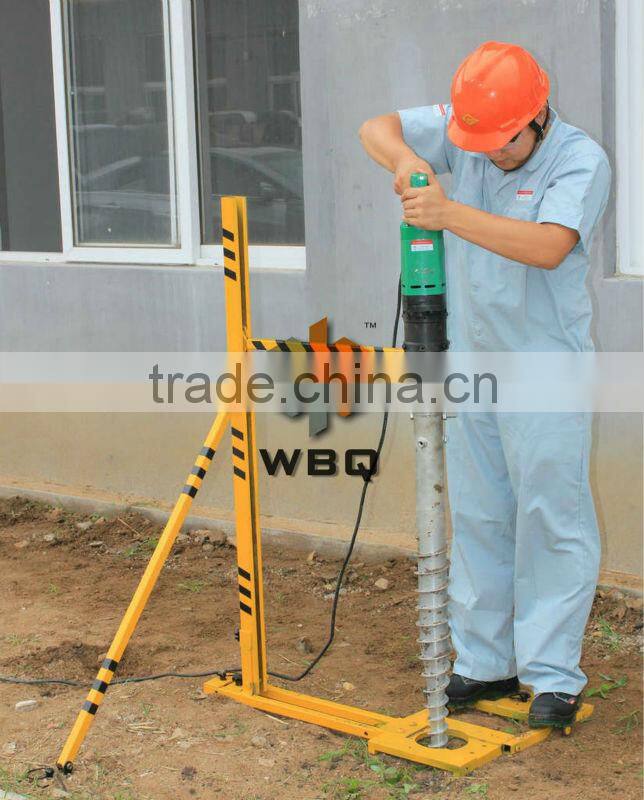

The single counter torque device for mini-type ground Screw

b) The double counter torque device for bigger Ground Screw

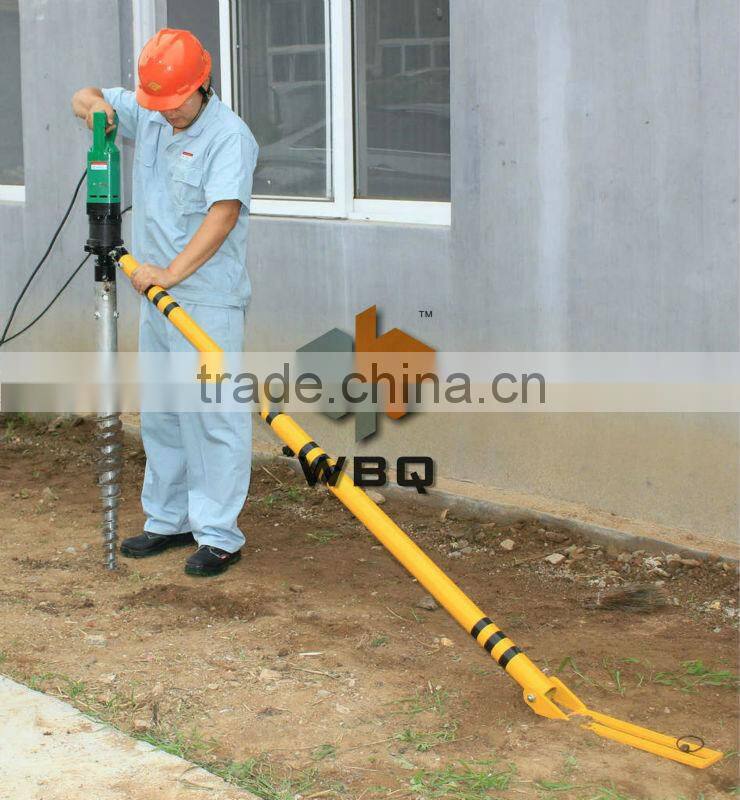

c) The drag pole type counter torque device used for the uneven ground

electric-driver machine electric-driver machine electric-driver machine electric-driver machine electric-driver machine
