2016 Hot Selling Integrated Graphics HD Graphics/L3 2MB Barebone Fanless

Model

IN-10SU

Ports

DC 12V

HDMI

VGA

LAN

MIC Input

SPK Output

Processor

IVB platform Intel Celeron dual-core C1037U 1.8GHz

Memory

Support 204 Pins DDR3 low-power low heat, Max. 8G RAM

Hard Disk

Support 1*Mini PCIE Msata SSD+1* 2.5" HDD/SSD (SSD Max.512G, HDD Max. 1.5TB

GPU

Integrated graphics HD Graphics/L3 2MB

WiFi Optional

Dual Band Wireless-(150Mbps or 300Mbps optional)

Package

Mini PC+Power Supply+Power Cord (USA, European, UK Types for optional)+PC Stand

Major news announcement:

Slim version C1037U successful listing. Description: Size: 197X197X29MM beyond MINI thickness (36MM), and is fanless operation, first in the world. So the ultimate thickness was able to support up to 8GB memory, support for dual hard drives (one MASTA SSD, a laptop hard drive, the largest 2000GB) support 3D gaming, Blu-ray HD all solid-state, fanless, dust, the world's thinnest, the world's lowest quality to ensure foolproof, all solid design, 7X24-hour operation without pressure, current production board testing of aging 0 damage. About the detonation of the global mini-computer market. Dare, you did not expect, but we have done. This is innovation.

The world's first high-definition computer C1037U fanless successful development of today's engineering prototype has been fully tested, 7X24 hours of reliability testing PASS 55 degrees ambient temperature box running 3D 2 hour test PASS solid-state design, all with self-healing capabilities burned tantalum capacitors, inductors imported all one piece. Will bring a first-class experience, first-class quality. The low-power processor INTEL CPU is in the top, CPU performance, more than twice over D2550, D2550 Core graphics card performance over five or more.

World's first C1037U fanless mini computer world premiere

C1037U 29MM extreme ultra-thin version has a surprise listing

Features:

1. Onboard IVB platform Celeron dual-core C1037U 1.8GHz CPU ( integrated graphics HD Graphics) strong performance, overall performance over D2550 performance 2-3 times more

2. Gigabit LAN support diskless boot definition HDMI interface supports both Blu-ray 1080P HD output hardware solution software solution

3.12V external DC power supply , green, everyday use only 12W to 16W power

4. Six USB 2.0 interface fully 1000M card Wireless 150M or 300M WIFI network optional

5. Intel NM70 Express Express Chipset

6. Supports boot function calls

7. All solid , shock, drop and long-term stable and reliable operation

8. Specific system protection technology restart System Restore , all protected system , the virus can not invade

9. Exclusive RAM disk technology is mature applications , read and write speeds of up to 1300M / S, is a traditional hard drive speeds more than 20 times . All the system writes the RAM disk completed , protecting the SSD solid state disk , long service life of up to 10 years. (4 GB or more of memory optional feature )

Market positioning:

1 living room HD computer TV in the living room below , as the network after connecting TV movie player , Internet , and viewing photos to use , but also can download machine , download movies ( large capacity drives )

2 business office preferred . Online shopping mall , shop office use, environmentally friendly energy , save electricity . Only 15W power down , corporate offices , saving space. Many advantages , the typical business office committed to make.

3 rooms dedicated computer -aluminum exterior , elegant, upscale . Placed hotel is very convenient , all- solid-state design , not damaged, no dry sound , low power consumption , energy saving.

4 education industry dedicated computer terminal than the low clouds have better performance , easier software compatibility , better color , faster , more suitable for the education sector .

5 industrial computers designed for industrial users reservation and serial port, and the design of the machine , can be fully qualified for industrial applications , all solid-state design, all quiet design , the overall board design are taking into account the needs of industrial users .

6 users call center has a large number of mature applications

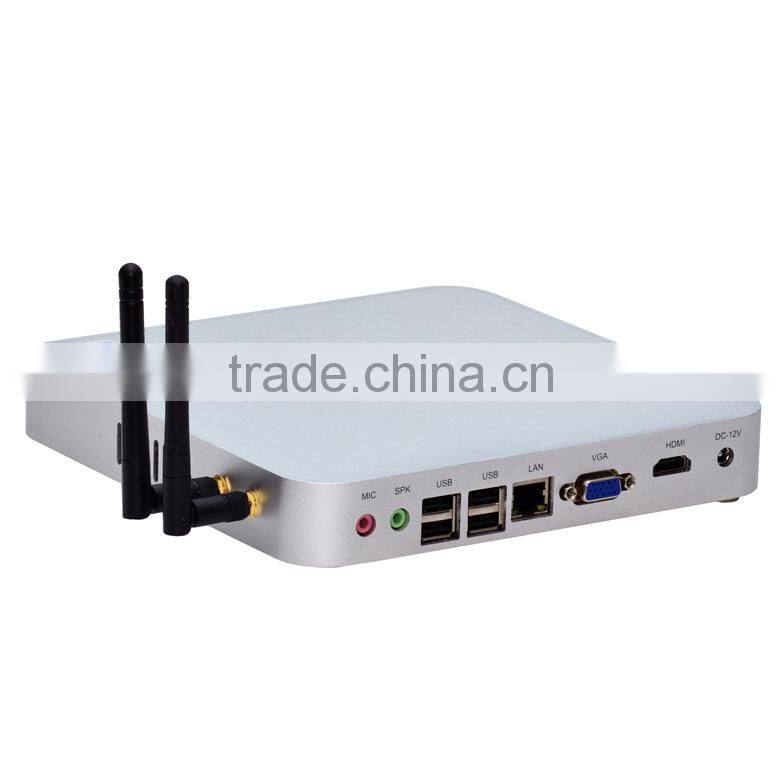

The picture shows the rear panel of the interface map

Parameters are described below :

• Onboard Intel Ivy Bridge Celeron dual-core C1037U 1.8GHz CPU ( integrated HD Graphics) 2M three cache , power consumption 12W fanless

• Memory DDR3 SO-DIMM *1 ( maximum support 8GB)

• 1 * RJ45 RTL8111DL 10 ~ 100 ~ 1000M Ethernet LAN

• Graphics Card Intel HD Graphics graphics core, default 256M memory, up to 1024M, support 1920 * 1080

• SATA SSD optional 8G,16G,32G,64G,120G ( or notebook hard drive 160GB 320GB 500GB 1TB 2TB)

• 4-6 x USB 2.0 ports , including two front , rear 4, 1 Extra COM port ( optional )

• Front USB and Audio Interface

• Optional ( non- standard ) 150M or 300M Super Signal Dual Antenna WIFI

Pictured on the CPU parameter information , see the number of cores , the production process has reached an advanced 22NM process

 Pictured on the experience of scores WIN7 system , CPU speed of the computer experience points reached 5.8 points, but more alarming is that 3D gaming graphics score of 6.1 points

 Pictured on Master Lu performance test results , showing obtained silver medals, as a slightly larger than the palm of your hand and weighs 850 grams , fanless operation , power 15W mini computer , it is already a miraculous performance

 Measured reach 1.0Gbps Gigabit Ethernet LAN speed networking to ensure high-speed stability , and the perfect support for diskless applications

 Under the WIN7 start 77 program startup speed of less than 20 seconds , beating 99% of computers, was named the star god machine 360 .

Detailed configuration

CPU interface BGA package CPU board stickers

Onboard Intel Ivy Bridge CPU Celeron dual-core C1037U 1.8GHz CPU ( integrated HD Graphics) CPU bus (FSB) 1024MHz

Chipset Intel NM70 Express Chipset

Three cache (L3 Cache) 2MB,, CPU integrated

BIOS AMI BIOS, ACPI supported, support caller boot function

System Memory 1 SO-DDR3 SDRAM memory slot , up to 8GB DDR SDRAM

Built-in graphics core built-in Intel HD Graphics Display

Support CRT interface supports VGA output interface supports HDMI output and can vary significantly synchronous output

NIC onboard RTL 8111DL 10/100/1000 BaseT LAN optional super- 150M or 300M dual antenna signal WIFI

ALC662 sound card using the chip to provide 6-channel audio

SATA 1Serial II ATA interface, support for 3Gb / s

MINI PCIE two MINI PCIE interface supports full-height half MSATA SSD Support MINI PCIE Wireless LAN

WIFI Optional 150M WIFI or 300M WIFI built-in modules , external antennas to enhance signal

USB 6 USB 2.0 interfaces ( four on-board rear, two on the front panel )

Rear panel VGA HDMI 1 * RJ-45 4 * USB ports 1 * DC (in)

12V AUDIO-OUT AUDIO-MIC

DC IN 12V power supply support

Sizes 205mmx 140mmx40mm

Weight : 850 grams to about 1000 grams

Temperature:

   Operating Temperature:

   0 ° C ~ 70 ° C (32 ° F ~ 140 ° F)

   Storage Temperature:

   -20 ° C ~ 80 ° C (-68 ° F ~ 176 ° F)
