New Design Hot Selling 1*Mini PCIE Msata SSD +1*2.5 Inch HDD Case For Htpc Oem/Odm

Model

IN-S103

Ports

2*USB 2.0

2*USB 3.0

HDMI

VGA

LAN

Audio Input & Output

12V DC

Processor

Intel Celeron 1037u 1.8Ghz CPU

Memory

Max. 8G RAM NB Memory SO-DIMM 204Pin

Hard Disk

Support 1*Mini PCIE Msata SSD (SSD Max.512G)+1*2.5 Inch HDD (HDD Max. 1TB)

GPU

Intel HD Graphics

WiFi Optional

Wireless-(150Mbps or 300Mbps optional)  1 or 2 Antennas

Package

Mini PC+Power Supply+Power Cord (USA, European, UK Types for optional)

Ideal HTPC

 HTPC ideal qualities to have are:

Beautifully compact form factor, the general case is too rough to do with the living room does not ride, but INCTEL designed all-aluminum chassis, so that the whole HTPC enthusiasts immediately shines, the ensuing distress is a proper mini compact chassis matched with just the right motherboard and accessories is very difficult. Should solve this problem coincides with the launch of the INCTEL Mini HTPC host.

Low power consumption and quiet, ordinary PC's CPU fan plus the power supply fan noisy, quiet fan is very important, but the average host hundreds of watts relaxed, do not say the costs of electricity, heat is also large, people are very open in the summer time irritability. Mini-host is usually less than 40 watts using a laptop fan and associated chip, the average person simply can not buy the parts to assemble.

High performance, while maintaining the above features, but also close to the performance of an ordinary PC, so as to play some popular 3D games, such as World of Warcraft, Need for Speed, with a 47-inch or larger TV feels very carefree.

Moderate prices, low prices can not buy a good thing, but too expensive, it would not be acceptable to everyone, after all, only a notebook over $500 now, but put a laptop next to the TV is also very strange, so suitable HTPC host in $150-300 or so is a reasonable price range.

Application of content:

Because of their own HTPC machine is a computer or a mini-computer, so its contents must be very rich. But for ordinary users, who need more than just a wealth of content, but need only be able to be easily applied, and that he must content. For example, watch online movies, general computer applications need to install the program, connect the network to be able to watch. HTPC should be like a television host, has been with the remote control to select the built-in program that automatically expand the contents of the application was provided within the platform, rather than like a computer that is relatively complex to install and Find. A simple practical application of the platform should be a combination of customization and extension, the actual experience of the user or the final follow.

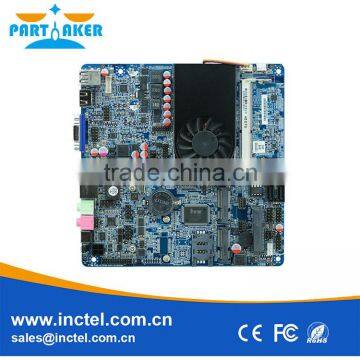

Motherboard:

Direct Sell mini host cloud terminal computer 1037U aluminum HTPC living room PC Hardware

Integrated Ivy brige Celeron processor 1037U RTL8111E Gigabit NIC DC12V DC power supply supports plug 2.5 inch notebook hard drive board support WIFI DDR3 Notebook Memory DC12V input terminal can be used as the whole thin cloud computing

C1037U Celeron dual core industrial motherboards calls HTPC mini boot host office host

Intel 1037U processor supports 12V ~ 19V wide voltage support dual 24BIT LVDS DDR3 Notebook Memory

1. Intel 1037U integrated 1.8G dual core processor with Intel HM65 Express chipset supports DDR3 generation notebook memory

1. Integrated Intel HD2500 graphics core supports VGA / HDMI / 24BIT LVDS dual-channel synchronous / asynchronous display support 1080P HD playback

1. Integrated 1 * RTL8111E Gigabit Ethernet supports Wake on LAN / PXE function support WIFI / 3G module / SSD Solid State Drive

1. Integrated six-channel Realtek ALC662 HD Audio controller supports MIC / Line-out board DC power supply can support 12V ~ 19V input voltage

CPU: Integrated Intel 1037U 1.8GHz dual core processor

Chipset: Using Intel HM65 Express Chipset and Intel NM70 chipset compatible

RAM: 1 * SO DDRIII 1333/1066 memory slot supports up to 8GB

Display Function: Integrated Intel HD2500 graphics core

Provides 1 VGA/ 2 HDMI/ 1 LVDS interface (supports dual-channel 24bit) support synchronous / asynchronous display

Expansion Slots: 1 * Mini-PCIE slot supports WIFI / 3G module (default is WIFI)

1 * MSATA3 slot supports SSD, USB WIFI (SATA1 interface and a second election by default SATA1)

Network capabilities: 1 * RTL8111E Gigabit LAN chip supports Wake on LAN / PXE function

Memory function: Provide a standard hard drive interface and SATA1 a 2.5-inch notebook hard drives

Copper pillars supporting the use of notebook hard drives can be installed directly transfer speeds of up to 6Gbps

Audio features: Onboard ALC662 6-channel HD Audio controller supports MIC / Line-out / PA

3Ω 2W speaker amplifier is recommended

Backplane I / O interface

4 * USB2.0 interface

1 * HDMI interface

1 * VGA interface

1 * RJ-45 network interface

1 * Line out (green)

1 * Mic (red)

1 * 12V DC power input connector

1 * Power or Reset switch (optional)

Built-in I / O interface

1 * LVDS interface supports dual-channel 2 * 15pin 24bitLCD (dual 8)

1 * JHDMI interface 2 * 8Pin

1 * JVGA1 interface DB15 same signal 2 * 5pin

4 * USB 2.0 interface Mini-PCIE if the USB signal support two USB

1 * FP1 front panel function buttons and LEDs Interface 2 * 5pin

1 * AUDIO Front panel audio connector

1 * amplifier interface 4pin

1 * SIM card connector

1 * PWROUT hard drive power connector

1 * ATX 4pin power connector

1 * LVDS INVERTER

Fan connector

1 * CPUFAN fan connector 4pin and 3pin fan connector 1 * SYSFAN

BIOS

AMI 32MB Flash ROM

Power type

Single DC power input (12V ~ 19V power input support)

Working temperature

-10 ~ 60

Storage temperature

-20 ~ 70

Humidity

5% -95% relative humidity non-condensing

Size

170mm x 170mm.
