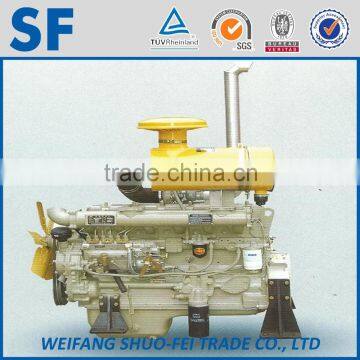

6105series 6105azld genset diesel engine
- Qingdao Shanghai
- T/T L/C D/P D/A
You May Like
Product Details
Condition | New | Usage | Other, genest, Genset | |
Fuel | Diesel | Stroke | 4 Stroke | |
Cylinder | Multi-cylinder | Cold Style | Other, Water-cooled | |
Start | Electric Start | Place of Origin | Shandong, China | |
Brand Name | LX | Model Number | 6105AZLD | |
Dimension(L*W*H) | 1200X800X1100 | Weight | 580kg | |
Certification | ISO9001:2008 | Warranty | 1 year or 1500 running hours | |
After-sales Service Provided | No overseas service provided |
Product Description
Specifications
6105 series diesel engine1. Factory direct price
2.6cylinder 4storke
3. Water cooled
4. Fuel: Diesel
Engine model | R6105ZD | R6105ZD1 | R6105AZLD | R6105IZLD | R6105C2 | R6105C4 |
Type | 4-stroke,inline, water-cooled, driect injection | |||||
Cylinder no. | 6.L | |||||
Bore*stroke (mm) | 105*125 | 105*130 | 105*135 | 105*125 | ||
Total emission of piston(L) | 6.49 | 6.75 | 7.1 | 6.49 | ||
Compression Ratio | 16:1 | 17:01 | ||||
Cylinder firing order | 1-5-3-6-2-4 | |||||
Intake type | Turbocharged | Turbocharged intercooled | Natural aspirated | |||
Rated power kw/(r/min) | 84/1500 | 94/1800 | 110/1500 | 132/1500 | 45/1500 | 65/2000 |
High idling speed(r/min) | ≤1575 | ≤ 1890 | ≤1575 | ≤ 1620 | ≤ 2160 | |
Low idling speed(r/min) | ≤ 600 | |||||
Maximum torque speed(N.m/r/min) | ||||||
Brake mean effective pressure (kPa) | 1035 | 965 | 1237 | 1245 | 554 | 601 |
Specific fuel consumption(g/KW.h) | ≤ 232 | ≤ 224 | ≤ 239 | |||
Specific oil consumption(g/KW.h) | ≤ 1.63 | |||||
Exhaust Temperature (℃) | ≤ 600 | |||||
Crankshaft steering | Counterclockwise(From the power output end at) | |||||
Cooling method | Inforced Water Cooled | |||||
Lubrication method | Pressure and splash composite | |||||
Starting method | Electric | |||||
Net weight(kg) | 570 | 580 | 610 | 520 | 530 | |
Usage | Genset | Marine engine |
1). Manufacturer or Trading Company
Our factory is a diesel engine manufacturer for 11 years, and specializing in the production of diesel engine2100 series 4100 series 4105 series 6105 series
2). MOQ.
1set
3). Spare Parts
a. Free spare parts with the order shipped
b. Within 10 working days after payment send by express.
4). Shipment
We can help customer to arrange shipment.
5). Delivery Time
One container 15~30days
6). Payment Terms
30% deposit T/T, 70% T/T before shipment or L/C at sight
7). Diesel engine Options
Diesel engine :2100 series 4100 series 4105 series 6105 series
8). Generator Logo
a. We have our own logo LX
b. We can make customers own logo in the diesel engine for free.
9). Package and Loading qty
a. Nude Package or Wooden Package
b. Loading qty : as the container's size
