full automatic A4 paper cutting machine
- 20 Set / Sets per Month
- NINGBO
- T/T Credit Card PayPal
You May Like
-
full automatic A4 paper cutting machine
-
A4 paper slitting and sheeting machine supplier
-
A3 A4 roll paper cutting machine
-
Jumbo roll to sheet A4 paper sheeting and cutting machine
-
One roll office A4 copy paper sheeting cutting machine
Quality Choice
-
A4 paper size cut machine(A4 paper sheeting machine, A4 paper sheeter)
Quality Choice
Product Details
| Condition | New | Type | Paper Cutting Machine | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | RUIHAI | Model Number | HQJ-A4 | |
| Voltage | 380V 50Hz | Power(W) | 9.5KW | |
| Dimension(L*W*H) | 12000*1900*2000mm | Weight | 3500KG | |
| Certification | CE Certificate | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Performance and Characteristics
This A4 automatic trimming high precision crosscutting machine is suitable for cutting big rolling packaging materials , such as office, paper-plastic, photo paper material, etc.
1. It adopts PLC touch screen control, servo motor for controlling constant-length cutting.
2. It adopts pneumatic, photoelectric sensor for controlling transmission system, with photoelectric, gas together, it has functions of easy operation, high precision, good stability and low noise.
3. This paper crosscutting machine has the functions of the frequency converter timing device, automatic counting, stop working by alarm magnetic powder tension control, can be cut vertically, adopt blower to get rid of waste.
4. This machine can be with 1 roll, 2 roll and 4 roll loading system.
5. This machine can connected with the packaging machine directly.
Main Technical Parameters
| Model | HQJ-1100A4 | HQJ-1400A4 |
| Max. width of cutting | 1100mm | 1400mm |
| Max. diameter of material | Φ1400mm | Φ1400mm |
| Min. width of cutting | 50mm | 50mm |
| Length of cutting | 20-400mm | 20-400mm |
| Speed | 10-140times/min | 10-140times/min |
| Precision | ±0.2mm | ±0.2mm |
| Total Power | 9.5KW | 11KW |
| Weight | 3500kg | 4000kg |
| Overall dimension(L*W*H) | 12000*1900*2000mm | 12000*2200*2000mm |
Detailed photos

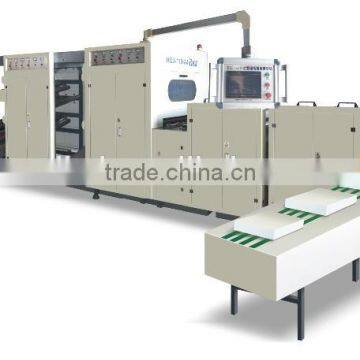

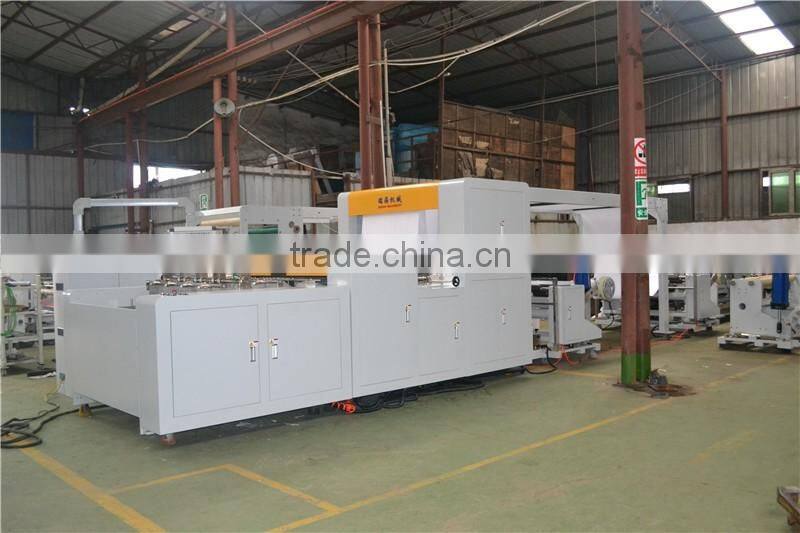

whole view

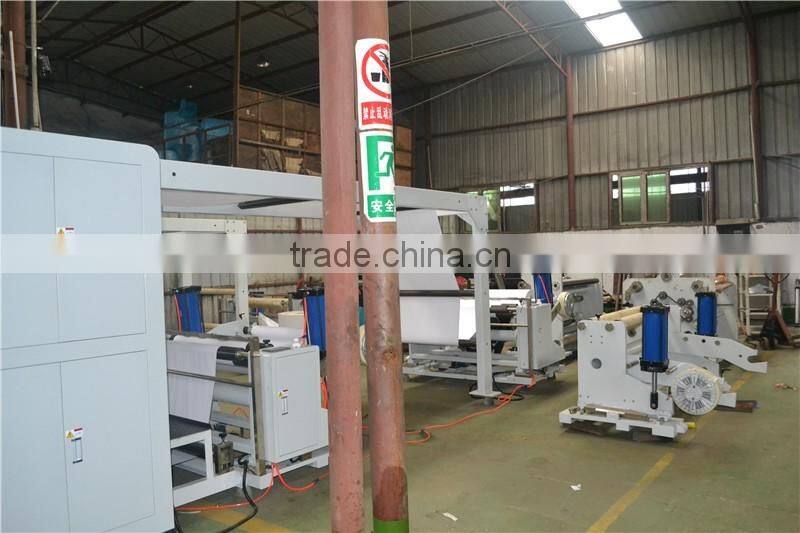

2 rolls

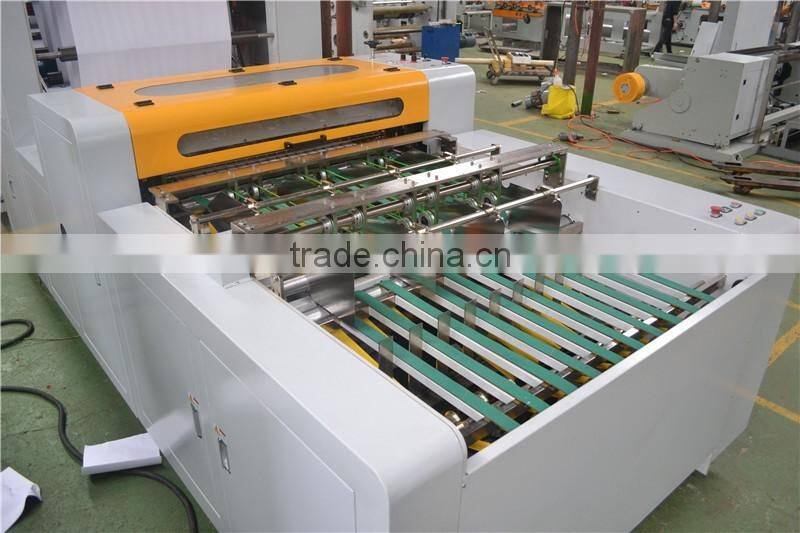

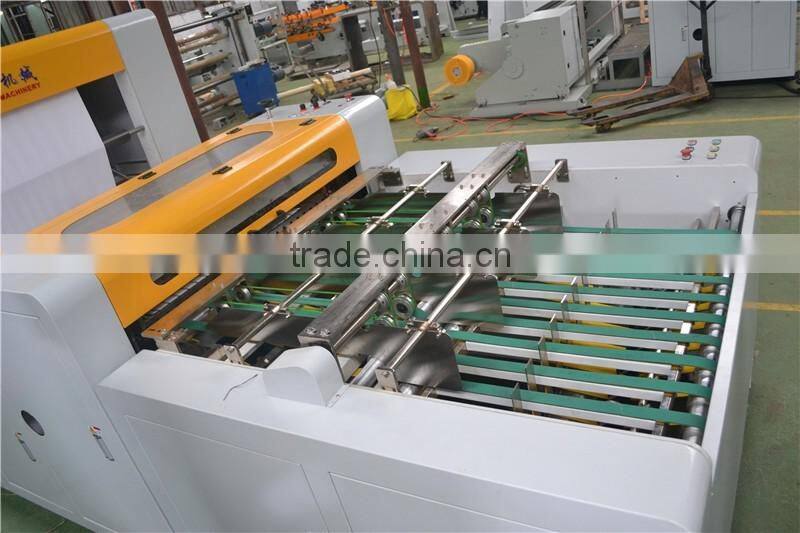

Automatic stacking and never come across
FEEDBACK(if u need more information or videos, pls do not hesitate to contact with me)
