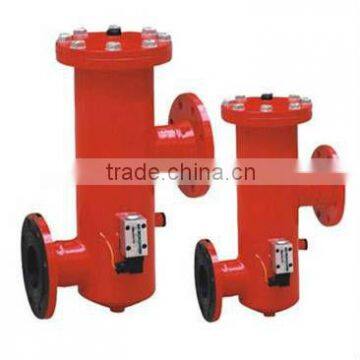

YLQ all series Centrifugal Oil Filter

YLQ-R&YLQ-BL single filter

1. quality control system: ISO9001-2008
2. function:water filter
3. any size
4. With high efficiency
5. low resistance
6. good permeability
7. High reliability,
8. long life and other characteristics
9. carbon steel and stainless steel materials have more resistance
10. ?corrosion resistance
11. sample is available
12. corrosion resistance, water, not easy clean, can use repeatedly pulse.
13. energy efficient filters
14. efficiency: 99.99%
15. high integrity design to save your space
16. OEM product is welcomed

YLQ-R&YLQ-BL single filter

1. Introductions:This filter is widely used in the hydraulic system of metallurgical machinery, mining machinery, heavy machinery, etc.

2. Characteristics:With high efficiency, low resistance, good permeability. High reliability, long life and other characteristics,?polyester fiber materials have more resistance,?corrosion resistance, water, not easy clean, can use repeatedly pulse.

3. Structure:end and bottom caps,material is aluminum , iron, rubber?;inner and outer tube, material is galvanized sheet?; filter medium ,material is glassfibre , PP non-woven , filter paper

86-0373-3391116

XIAOZHUZHUANG INDUSTRIAL ZONE ,HEPING ROAD NORTH,XINXIANG CITY HENAN CHINA

???Xinxiang D. King industry Co., LTD, formerly of aviation industry 2 groups subordinate enterprise achieving economic entity, was founded in 1987, filters, filter professional manufacturers. Set product development, design, production and experiment, through ISO9001:2000 international quality management system certification. Strong technical force, advanced processing equipment, using three-dimensional auxiliary design system for the product design and optimization, ensure products in the shortest time, to provide customers with the best quality products.

???Our company mainly produces various series of filters and filter element , while engaged in import and export work. The localization of filter Product covers petrochemical, chemical, electric power, metallurgy, textile, environmental protection, machinery, such as water, life, oil, melt, coating, pulp, paint filtration purification industries.

???Quality first, customers, is our aim. We are willing to cooperate with domestic and overseas clients, to provide you with the best quality products and the best service!

Model

DN
(mm)

Flow
(L/min)

Filtr.
(um)

Press
(Mpa)

ΔP (Mpa)

Model of element

Number

Initial

Max

YLQ-R100×*

100

1300

1
3
5
10
20
30

1.6

≤0.2

0.35

1300R*BN/HC

1

YLQ-R125×*

125

2600

2

YLQ-R150×*

150

2600

2

YLQ-R200×*

200

3900

3

YLQ-R250×*

250

6500

5

YLQ-R250×*

250

7800

6

YLQ-R250×*

250

9100

7

Model

DN
(mm)

Flow
(L/min)

Filtr.
(um)

Press
(Mpa)

ΔP(Mpa)

Model of element

Initial

Max

YLQ-BL65×*

65

400

20
25
30
40
80
120

1.6

≤0.1

0.35

BLLX-171×265-*

YLQ-BL80×*

80

600

BLLX-171×464-*

YLQ-BL100×*

100

1000

BLLX-231×464-*

YLQ-BL125×*

125

2500

BLLX-355×464-*

YLQ-BL150×*

150

2500

BLLX-355×464-*

YLQ-BL200×*

200

4000

BLLX-355×760-*
