12v 800N High Speed Linear Actuator 600mm Stroke for Truck Camper Lift

Feature of linear actuator 600mm stroke

There are 12 force options available with 6 Gear ratios; all twelve force options of the feedback rod Linear Actuators are capable of 500lbs static force. These units come equipped with built-in limit switches, are manufactured with high-grade aluminum outer and inner tubes, and come in various stroke lengths, these Linear Actuators are the beginning of most home and product automation enterprises.

All of our units are CE certified, and come with a 12 month mechanical warranty to keep our units serving you best. Our company values revolve around providing quick and friendly customer service that will follow your experience with our products and staff

1.Input voltage:24V/12V

2.Load speed:5-60mm/s

3.Six gear ratio:5:1, 9:1, 13:1, 18:1, 30:1, 40:1

4.Max load:1200N(266lbs)
5.Lubrication & enhanced rust-proof treatment

6. Patented design for assembling the tube with gearbox

7. Aluminum outer & inner tube

8. Powder metal gears
9. Self-locking function
10. Ambient temperature -40℃ to +100℃
11. More than 15000 cycles endurance test

Feedback Option;

POT or Single hall sensor and Dual hall sensor

Standard Parameters

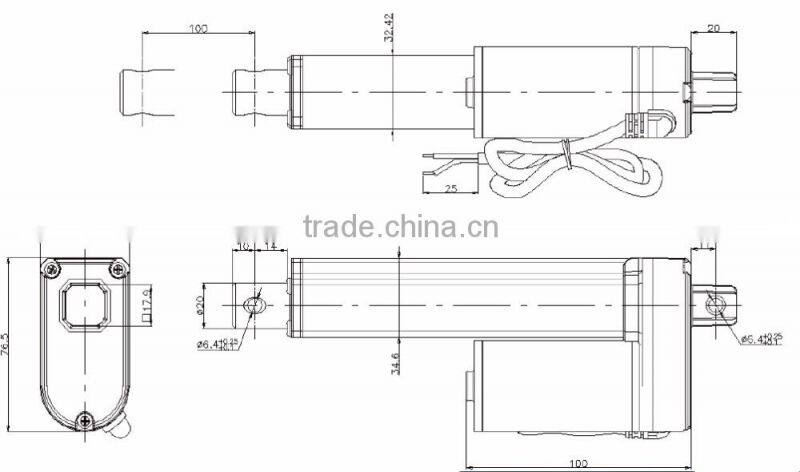

Drawing & Dimension

Parameters

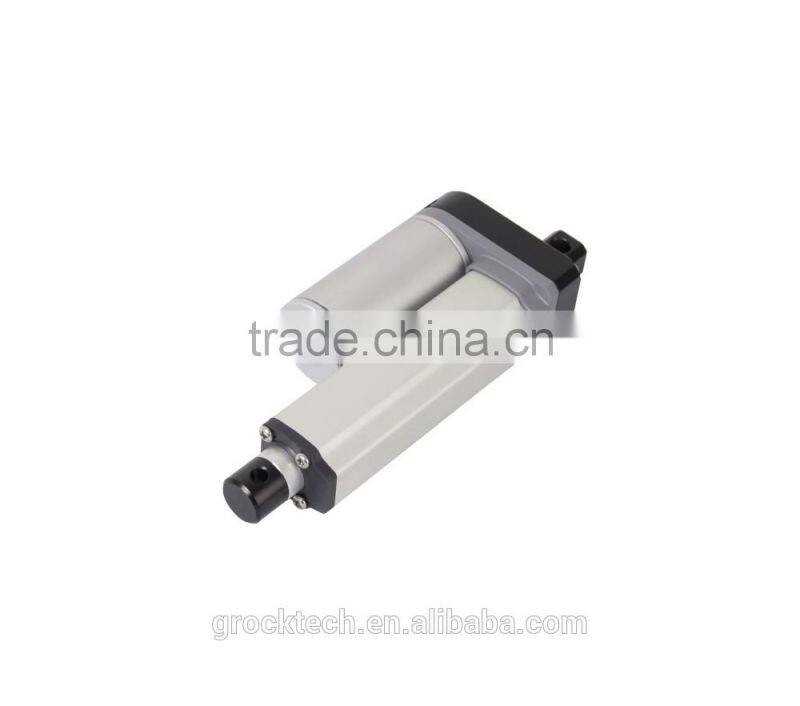

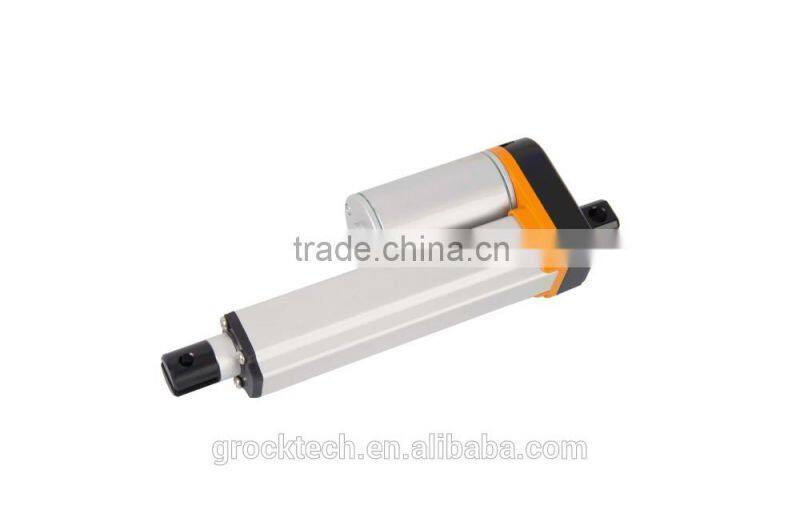

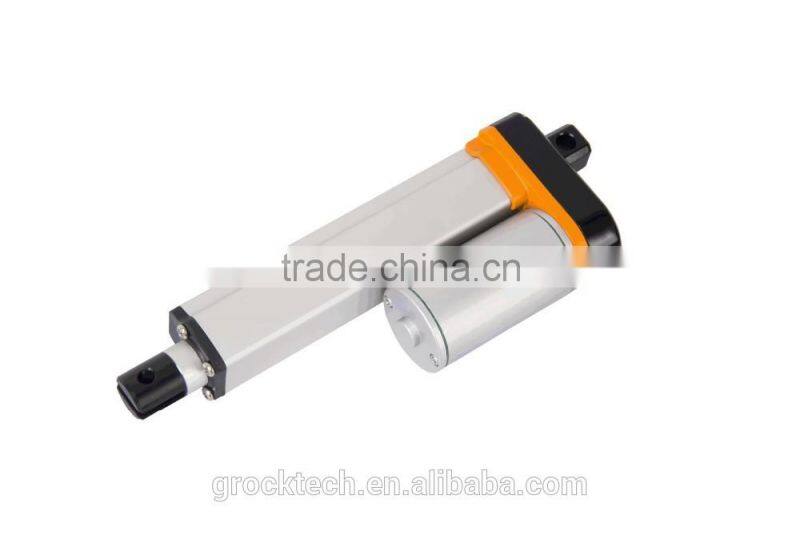

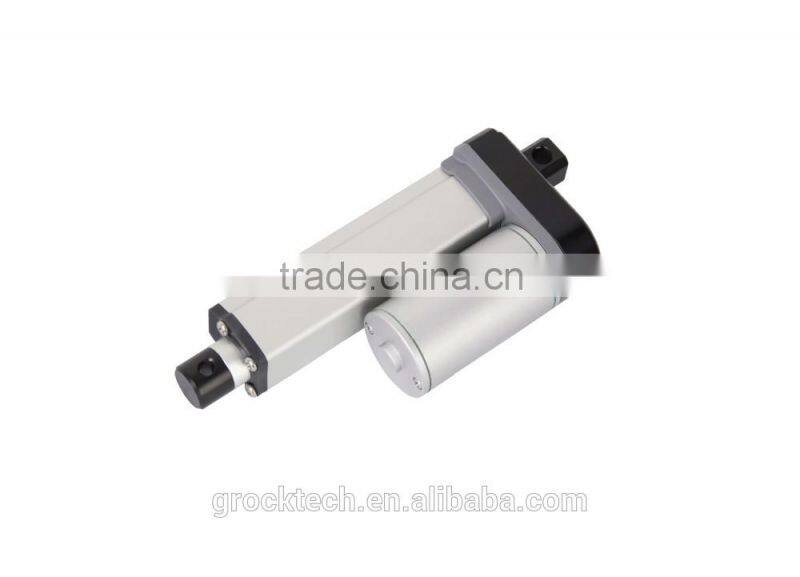

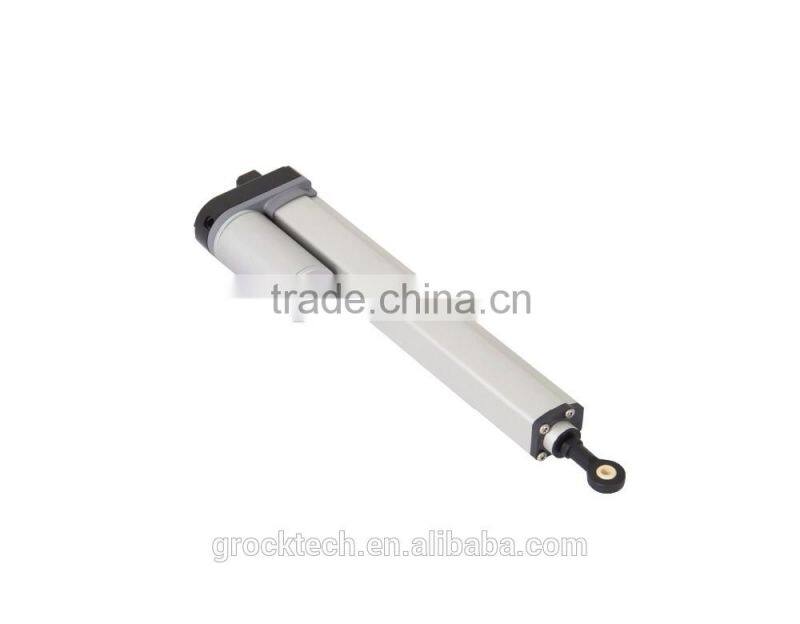

Photos View

Why choose G-Rock

1, 10 years manufacturing experience in linear motion.

2, Professional R&D team, can meet non-standard design at any time.

3, Gold supplier for well-known enterprise.

About us

G-Rock technology Co., Ltd found in 2005,  Built as a spin-off from JAEGER INDUSTRIAL CO., LTD,

G-ROCK (old name is JGR industrial co., ltd) has operated since 2005, intergrated the R&D, and grown

up to be a reliable quality products manufacturer in Hong Kong with factories in Dongguan city,China.

Full series of actuators, cover the whole linear industry. sample and bulk production delivery is fast,

Also with 24 hours online service and professional after-sales team.

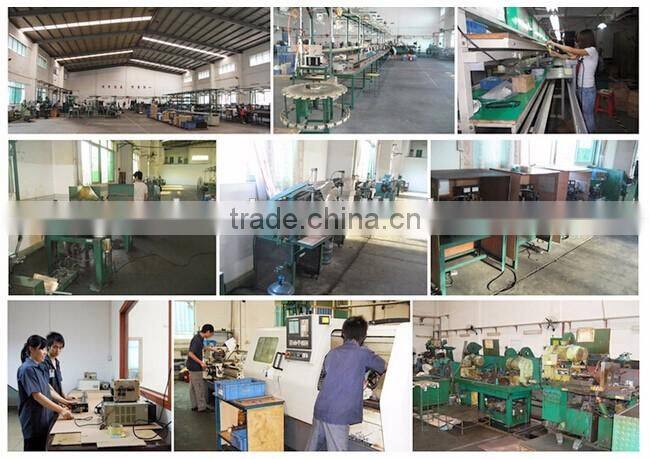

The factory is located in Dongguan city, the transportation is quite convenient. near Guangzhou port and

Shenzhen port.
