Large Size Acrylic Bending Machine
- Qingdao port is the most convenient port and other ports is also available
- T/T L/C D/P D/A PayPal
You May Like
Product Details
| Condition | New | Product Type | Plastic Sheet | |
| Place of Origin | Shandong, China | Brand Name | DMS or OEM | |
| Model Number | DMS-Q1200 | Voltage | 110V or 220V | |
| Power(W) | 2KW | Dimension(L*W*H) | 1680*500*1100mm | |
| Weight | 150KG | Certification | CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

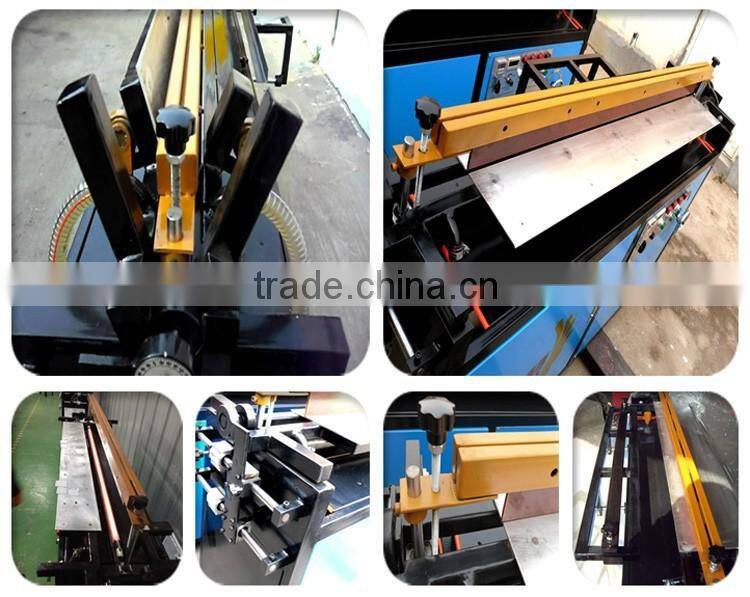

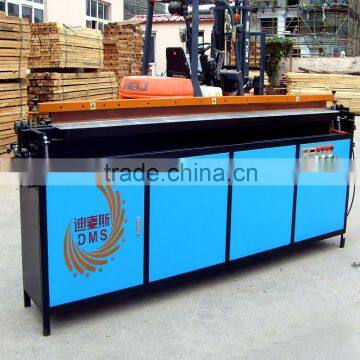

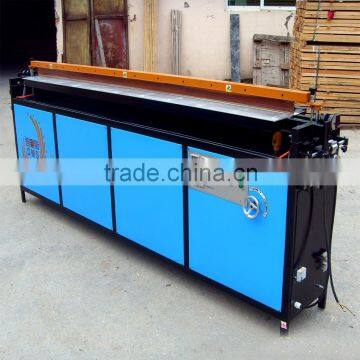

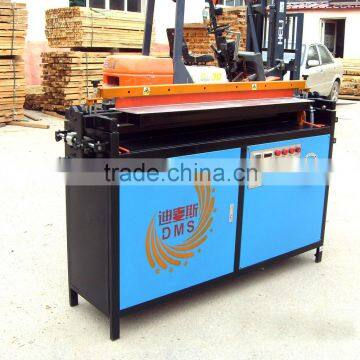

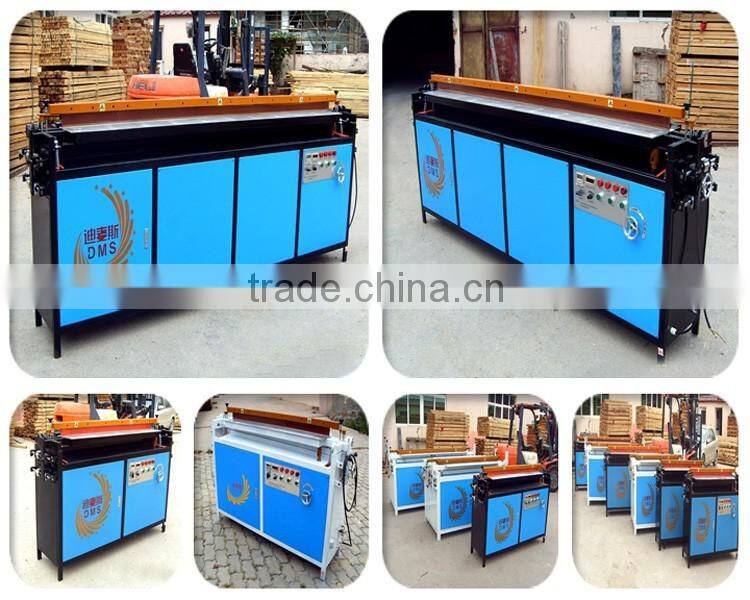

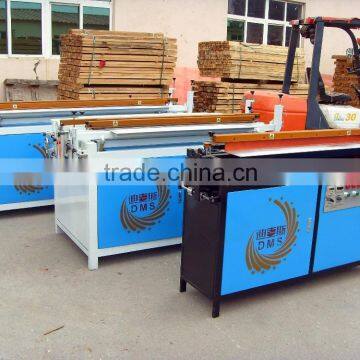

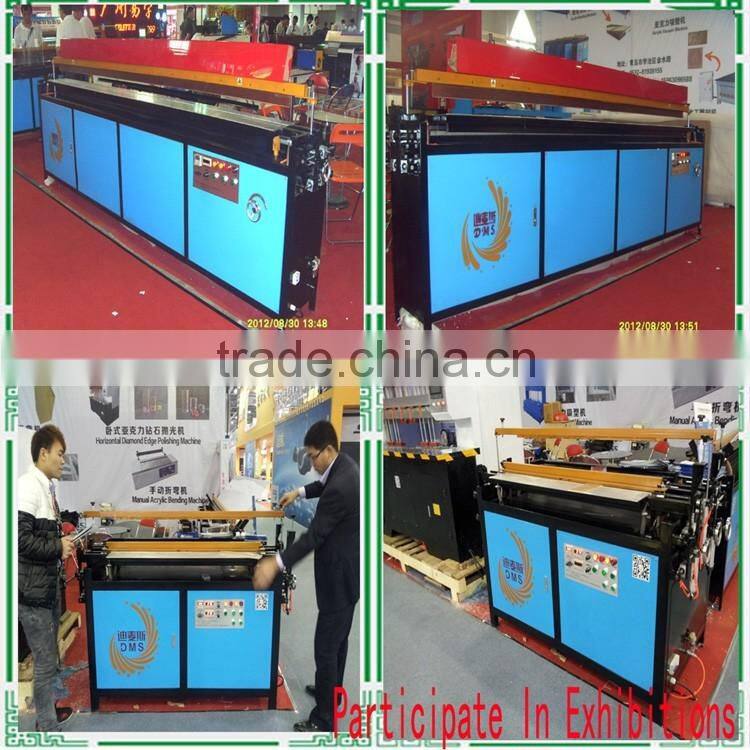

Large size Acrylic Bending Machine
Name: Automatic acrylic bending machine
Model: DMS-Q600/Q1200/Q1800/Q2400/Q3000
Application
1. Used to bend components of ACRYLIC, PVC, PMMA, PC,PE,PVC etc Plastic sheet, suitable for mass production of advertisement industry.
2. The bending machine helps you to easily and quickly produce different V-shape workpiece.
Features
1. Digital operation, simple, convenient and safe.
2. Manual funtion and automatic function.
3. Set soften time and angle according to acrylic sheet thickness and melting character, angle will be made automatically.
4. Set and adjust angle by hand, convenient and accurate, make sure uniform workpiece for mass production.
5. Adop infrared heating mode, high efficiency and long life.
6. Adjust the working voltage according to workpiece sheet thicknes, avoid burn or deficient heating.
7. Cooled by water,and the temperature-controller inset will alarm automatically when water temperature is too high so to insure the equipment safety
8. With electricity leakage protectioin function, ground wire connection, make user and machine more safely.
9. The bending machine helps you to easily and quickly produce different V-shape workpiece.
10. The bending machine allows to universally adjust internal sizes of the V-shape workpiece up to maximum of 600mm/1200mm/1800mm/2400mm/3000mm.
Parameters
Product Name |
Large size Acrylic Bending Machine
| |||||
Model NO | DMS-Q600 | DMS-Q1200 | DMS-Q1800 | DMS-Q2400 | DMS-Q3000 | |
Outline Dimension | 1080*500*1100mm | 1680*500*1100mm | 2280*500*1100mm | 2880*500*1100mm | 3480*500*1100mm | |
Bending Length | 0-600mm adjustable | 0-1200mm adjustable | 0-1800mm adjustable | 0-2400mm adjustable | 0-3000mm adjustable | |
Bending Width | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited | |
Bending Thickness | 0.3mm~10mm |
0.3mm~10mm |
0.3mm~10mm |
0.3mm~10mm |
0.3mm~10mm | |
V-shape Angle | 0-179 degree adjustable |
0-179 degree adjustable |
0-179 degree adjustable |
0-179 degree adjustable |
0-179 degree adjustable
| |
Rated Voltage | 220V/50HZ/60HZ | 220V/50HZ/60HZ | 220V/50HZ/60HZ | 220V/50HZ/60HZ | 220V/50HZ/60HZ | |
Heating tube power | 1KW |
1.5KW |
2KW |
3KW |
3.5KW | |
Gross Power | 1.5KW | 2kw | 2.5KW | 3.5kw | 4kw | |
Heating Method | Used the quartz tube to heat up
| |||||
Machining Principle | Thermoforming
| |||||
Working Mode | Pneumatic
| |||||
Cooling system |
Circulation water of cooling
| |||||
Net Weight | 100KG | 120KG | 150KG | 200KG | 260KG | |
Gross Weight | 130KG | 150KG | 200KG | 260KG | 310kg | |
We can custom-made the acrylic bending machine according to your requirements!
1.One year quality guaranty.
2. Lifetime maintenance free of charge.
3. We will provide the consumable parts at an agent price when you need replacement.
Free training course at our plant.
4. Before shipment,the acrylic bending machines have been tested
we will take pictures and videos for you.
5. Electronic version of the english operation manual included with the acrylic bending machine.
6. 24-hour technical support by email or calling.
A:T/T:50% T/T deposite,50% before shippment.
B: You can order online and payment in alibaba.
1. Are you the manufacturer or agent ? What advantages do you have?
We are manufacturers.
We have the technological advantage, price advantage, after-sales service advantages .
2. Acrylic bending machine is automatic or manual?
Our acrylic bending machine is automatic. the machine automatic bending plate,without manual bending!
3.What the machine can bend degree angle?

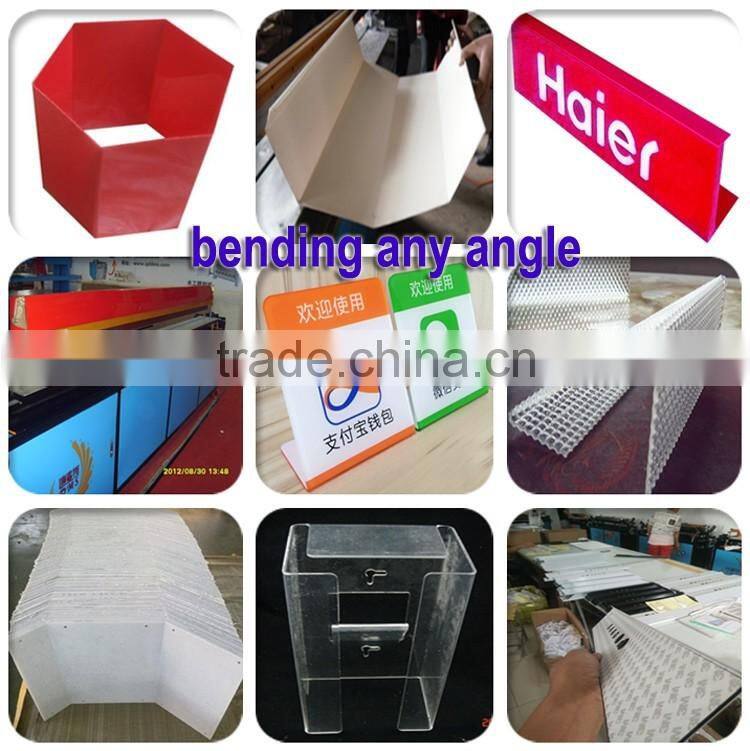

Acrylic bending machine can bend 0-179 degrees at any angle .
4.What materials are suitable for the acrylic bending machine ?
Acrylic bending machine is suitable for acrylic, PMMA , PVC,PE, ABS , PP, PS etc Plastic sheet.
5.How thick plate acrylic bending machine to bend ?
Bending thickness from 0.5mm ~10mm ( no need to cut a slot on the sheet ) .
10mm ~15mm ( need to cut a slot on the sheet )
6. Your bending machine power supply voltage is 220V, but our country is 110v power supply voltage, can we use your machine?
Yes, you can use!
but, you need to buy a transformer converts 110V to 220V in your country .
