CO2 Laser Type and Laser Engraving Application Cnc Cutting Machine for Plexyglass
- Qingdao Shaihai Guanghzou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Laser Type | CO2 | |
| Engraving Area | 1300*900mm | Engraving Speed | 0-60000mm/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Place of Origin | Shandong, China | Brand Name | DMS or OEM | |
| Model Number | 1390 | Dimension(L*W*H) | 1720*1330*1050mm | |
| Certification | CCC, CE, ISO, SGS, UL | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CO2 Laser Type and Laser Engraving Application cnc cutting machine for plexyglass
We are manufacturers. As a manufacturer's advantage is:
To provide technical services at any time and the best price.
Applicable Materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,glass and other nonmetal materials.
Applicable industries:
advertisement, arts and crafts, leather, toys, garments, model, building upholstery, computerized embroidery and clipping, packaging and paper industry.

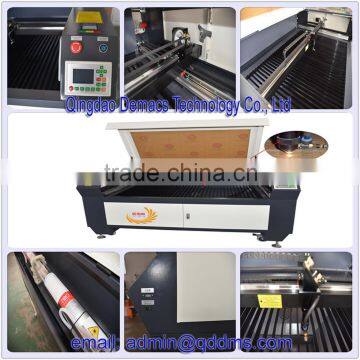

Feature:
Carbon dioxide laser as an energy source, combined with electronic, mechanical, computer technology developed. Laser head and the work piece does not contact, do not scratch the surface and the kerf, high precision, is the ideal choice for a variety of processing industries.
1.Manufacturer
2.Square imported linear guide, to ensure the accuracy of the machine
3. Reci Laser Tube
4.Water-cooling and protection system
5.DSP control system
6.Interface:USB
Specification :
Name | CO2 Laser Type and Laser Engraving Application cnc cutting machine for plexyglass |
Model | DMS-1390 |
Working area | 1300*900mm |
Table mode | Fix honeycomb table/Strip table(Movable table optional) |
Laser power | 130w mixed cutting laser tube(150w optional) |
Laser type | Reci sealed CO2 laser tube |
Resetting position accuracy | ±0.02mm |
Engraving accuracy | ±0.01mm |
Cutting speed | 0-60000mm/min |
Minimum shaping character | English 1×1mm |
Max.cutting thickness | 25mm(depending on materials) |
Laser output control | 0-100% set by software |
Working voltage | AC 220V 50/60HZ |
Gross power | <1500W |
Operating temperature | 0 - 45° |
Operating humidity | 5 - 95% |
Graphic format supported | BMP, HPGL,PLT,DST,DXF,AI |
Compatible software | Coreldraw/AutoCAD/Photoshop |
Controlling software | DSP control system |
Driving motor | Stepper |
Cooling mode | Water-cooling and protection system |
exhaust equipment | Powerful Exhaust fan and air exhaust pipe |
Outside dimension | 1720×1330×1050mm |
Net Weight | 350KG |
| Optional Spare Parts | Up-down worktable, Red light pointer, Auto focus, Rotary device |
We have many models for your choice, such as DMS6090 (600 * 900 mm),DMS1290(1200*900mm),DMS1490(1400*900mm),etc.
If you have any questions to the above, please don't hesitate to contact with us. Thank you for your cooperation!
We are manufacturers. As a manufacturer's advantage is:
To provide technical services at any time and the best price.
After-sales service
1. 2 years dating from buyer receiving the machine.
The machine with main parts (excluding the consumables)
Within the warranty period and the machine parts were damaged under normal using condition,
we will offer new parts for free.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
Payment method:
A:T/T:30% T/T deposite,70% before shippment.This is the most convenient payment terms for international trade.
B: Escrow of alibaba.It is a third party payment terms.
1) You pay money to alibaba.
2) We prepare your machine production.
3) After your production,we would tell you timely,then you click the button"agree to ship".
4) We ship it.
5) After dispatch,we show documents to Alibaba,Alibaba would ask your agreements for money release to our company.
6) After your agreement,Alibaba would pay your money to us.
Your money is safe in alibaba before your agreement of money release.And During this process,
alibaba stuff would contact you and us..
Please tell me that you need the name and model of the machine by email.I will send detailed information and pictures to you.
If you are not sure which laser machine you need, pls tell us the follow details:
1.the raw materials you need cutting or engraving
2.the max working size you need(length,width and thickness)
