Energy-saving stone sand coal limestone ores drying rotary dryer machine
US$ 15,000 - 500,000
/ Set
1 Set(Min. Order)
- Tianjin Qingdao Shanghai etc
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Rotary dryer for lignitous coal/cement dryer/rotary dryer price
-
small rotary dryer used rotary sand dryer drying clay/sand making rotary dryer/good used for coal sawdust silica
-
henan luoyang small rotary dryer used rotary sand dryer for drying clay
-
China high Efficiency Slag Rotary Dryer Equipment With CE BV Certificate
-
Supply China best Rotary dryer with reasonable price
-
sand making rotary dryer used rotary sand dryer with CE BV Certificate
Product Details
| Condition | New | Type | Rotary Drying Equipment | |
| Place of Origin | Henan, China | Brand Name | Zhongde | |
| Model Number | 2.4*14m | Voltage | - | |
| Power(W) | - | Dimension(L*W*H) | Variable | |
| Weight | - | Certification | CE ISO BV | |
| Warranty | One Year, 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
What's Rotary Dryer?
Application:
Rotary dryer is widely applied in mining, metallurgy, building materials, chemistry and other industries, mainly stoving mineral powder, slag, clay, limestone, lignite and other materials.
Working principle:
Rotary Dryer is made up of cylinder, lifting plate, transmission, supporting devices and others. Based on reasonable layout an alternate angle-change equally spaced in cylinder, the lifting plate scatters the wet material inside rotating cylinder. Hot air flow turns water into steam letting into air, and aimed dry material is achieved.
Technical parameter:
| Specification(Diameter*Length)(m) | Shell cubage(m3) | Capacity(t/h) | Installation obliquity(%) | Highest inlet air temperature(°c) | Main motor(kw) | Weight(t) |
| Φ1.2*8.0 | 9.0 | 1.9-2.4 | 3-5 | 700-800 | 7.5 | 9 |
| Φ1.2*10 | 11.3 | 2.4-3.0 | 3-5 | 700-800 | 7.515 | 11 |
| Φ1.5*12 | 21.2 | 4.5-5.7 | 3-5 | 700-800 | 15 | 18.5 |
| Φ1.5*14 | 24.7 | 5.3-6.6 | 3-5 | 700-800 | 15 | 19.7 |
| Φ1.5*15 | 26.5 | 5.7-7.1 | 3-5 | 700-800 | 15 | 20.5 |
| Φ1.8*12 | 30.5 | 6.5-8.1 | 3-5 | 700-800 | 18.5 | 21.5 |
| Φ1.8*14 | 35.6 | 7.6-9.5 | 3-5 | 700-800 | 18.5 | 23 |
| Φ2.2*12 | 45.6 | 9.7-12.2 | 3-5 | 700-800 | 22 | 33.5 |
| Φ2.2*14 | 53.2 | 11.4-14.2 | 3-5 | 700-800 | 22 | 36 |
| Φ2.2*16 | 60.8 | 13.0-16.2 | 3-5 | 700-800 | 22 | 38 |
| Φ2.4*14 | 63.3 | 13.5-16.9 | 3-5 | 700-800 | 37 | 45 |
| Φ2.4*18 | 81.4 | 17.4-21.7 | 3-5 | 700-800 | 37 | 49 |
| Φ2.4*20 | 90.4 | 19.3-24.1 | 3-5 | 700-800 | 45 | 54 |
| Φ2.4*22 | 99.5 | 21.2-26.5 | 3-5 | 700-800 | 45 | 58 |
| Φ2.6*24 | 127.4 | 27.2-34.0 | 3-5 | 700-800 | 55 | 73 |
| Φ3.0*20 | 141.3 | 30.1-37.7 | 3-5 | 700-800 | 75 | 85 |
| Φ3.0*25 | 176.6 | 37.7-47.1 | 3-5 | 700-800 | 75 | 95 |
| Φ3.2*25 | 201 | 42.9-53.6 | 3-5 | 700-800 | 90 | 110 |
| Φ3.6*28 | 285 | 60.8-76.0 | 3-5 | 700-800 | 160 | 135 |

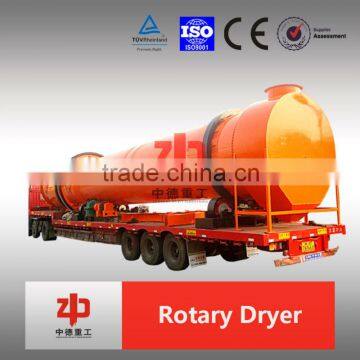

Pictures of Rotary Dryer:
