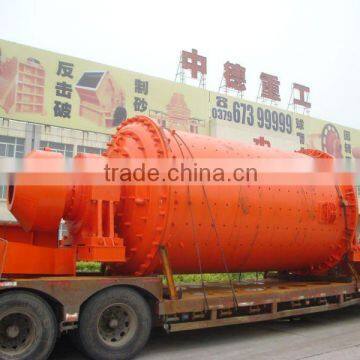

MBS(Y)-3600*4200 Rod Horizontal Ball Mill Price With ISO&BV in Chemical and Building Material Industries
- Tianjin Qingdao Shanghai
- T/T L/C D/P D/A
You May Like
-
MBS(Y) 2.7x3m Copper Rod Rolling Mill Equipment With BV for Sale in China Using in Gold Ore
-
Mining Machine in Henan Grinding Mill Supplier With High Reputation by Zhongde
-
MBS(Y)-3650 Ore Grinding Mill Manufacturer From China in Luoyang
-
MBS(Y)-3230 Limestone Ball Mill Manufacturer From Luoyang Zhongde in China
-
MBS(Y)-3040 Ball Mill Rubber Lining Manufacturer in China
-
MBS(Y)-3040 Rod Grinder Mill Manufacturer From Luoyang Zhongde in China
Product Details
| Condition | New | Type | Ball Mill | |
| Capacity(t/h) | 120-50 | Place of Origin | Henan, China | |
| Brand Name | Zhongde | Model Number | MBS(Y)-3600*4200 |
Product Description
Specifications
1.ISO9001:2008fessional manufacture with 50years
3.durable liner,whole life service,discharging evenly
4.customized
What Is Rod Mill and How Do They Work?
Rod mills are very similar to ball mills, except they use long rods for grinding media. The rods grind the ore by tumbling within the mill, similar to the grinding balls in a ball mill. To prevent the conditions leading to rod charge tangling, the length to diameter ratio is maintained at 1.4 to 1.6. Rod mills accept feed up to about 50 mm (2 in.) and produce a product in the size range of 3000 to 270 mm (–4 to –35 mesh).
Application:
For an equivalent grind, a rod mill uses less steel than a ball mill because of the lower speed and better contact between the media and ore. The rod charge must be maintained in good working condition, and broken and worn rods must be removed. Rod mills usually require greater operator attention. It is important that the rods stay essentially parallel to one another. If rods become misaligned, grinding action is lost and, more importantly, rod tangles occur. Maximum rod length is limited to about 6.1 m (20 ft). This in turn limits the length, diameter, and capacity of rod mills. The heavier rods acting upon the lifters and liners result in greater wear on the mill liners.
Rod mill is widely used in chemical industry, metallurgy, glasses industry which has rigid requirement of the evenness for milling after milling, sand making of building sand in recent years.
Technical Parameters:
| Model | Diameter of cylinder(mm) | Length of cylinder(mm) | Effective volume(m3) | Max. rod loading(t) | Speed(r/min) | Capacity(t/h) | Discharging size(mm) | Main motor(kw) | Weight(t) |
| MBS(Y)-1530 | 1500 | 3000 | 4.5 | 8 | 27 | 15-6 | 2.0-0.15 | 90 | 18 |
| MBS(Y)-1830 | 1830 | 3000 | 6.7 | 14 | 23.7 | 20-9 | 2.0-0.15 | 155 | 34.5 |
| MBS(Y)- 1832 | 1830 | 3200 | 7.2 | 15 | 23.7 | 22-10 | 2.0-0.15 | 155-180 | 36 |
| MBS(Y)- 2130 | 2100 | 3000 | 8.8 | 18 | 21.4 | 30-12 | 2.0-0.15 | 210 | 45 |
| MBS(Y)- 2132 | 2100 | 3200 | 9.6 | 20 | 21.4 | 32-12.8 | 2.0-0.15 | 210 | 47 |
| MBS(Y)- 2136 | 2100 | 3600 | 11 | 23 | 21.4 | 35-14 | 2.0-0.15 | 245 | 48.5 |
| MBS(Y)- 2230 | 2200 | 3000 | 10 | 21 | 19 | 34-13 | 2.0-0.15 | 245 | 50 |
| MBS(Y)- 2236 | 2200 | 3600 | 12 | 25 | 19 | 40-16 | 2.0-0.15 | 245 | 52 |
| MBS(Y)- 2430 | 2400 | 3000 | 12 | 25 | 19 | 40-17 | 2.0-0.15 | 280 | 53.5 |
| MBS(Y)- 2436 | 2400 | 3600 | 14 | 29 | 19 | 47-19 | 2.0-0.15 | 320 | 61 |
| MBS(Y)- 2730 | 2700 | 3000 | 15.5 | 32.5 | 18.4 | 55-21 | 2.0-0.15 | 355 | 72 |
| MBS(Y)- 2736 | 2700 | 3600 | 18 | 38 | 18.4 | 65-24 | 2.0-0.15 | 400 | 89 |
| MBS(Y)- 2740 | 2700 | 4000 | 20.6 | 43 | 18.4 | 80-28 | 2.0-0.15 | 480 | 95 |
| MBS(Y)- 3040 | 3000 | 4000 | 25.7 | 54 | 17 | 90-34 | 2.0-0.15 | 630 | 114 |
| MBS(Y)- 3230 | 3200 | 3000 | 21 | 44 | 16.4 | 73-28 | 2.0-0.15 | 500 | 116 |
| MBS(Y)- 3245 | 3200 | 4500 | 32 | 67 | 16.4 | 120-44 | 2.0-0.15 | 800 | 132 |
| MBS(Y)- 3642 | 3600 | 4200 | 38 | 79.5 | 15.8 | 120-50 | 2.0-0.15 | 1000 | 153 |
| MBS(Y)- 3645 | 3600 | 4500 | 40.8 | 85 | 15.8 | 140-56 | 2.0-0.15 | 1000-1250 | 168 |
| MBS(Y)- 3660 | 3600 | 6000 | 54 | 113 | 15.8 | 190-80 | 2.0-0.15 | 1400 | 198 |
Rod Mill Manufacture Process:
