multifunctional tool! MBS(Y)-2436 grinding machine manufacturer with High Effiency Energy-saving
USD $14,000 - $795,000
/ Set
1 Set(Min.Order)
- 150 Set / Sets per Month
- Tianjin Qingdao Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2012 Hot Sell in Djibouti MBS(Y)-2430 Ball Mill Plant with High Capacity from China Luoyang Zhongde
-
2012 Hot Sell in Palestine MBS(Y)-2132 Rod Mill Maker with High Effiency from China Luoyang Zhongde
-
2012 Hot Sell in Lebanon MBS(Y)-2130 Rod Miller Ginding Machine with Good Quality from China Luoyang Zhongde
-
2012 Popular Sell in India MBS(Y)-1532 Stone Rod Miller Mnufacturer with Negotiable Price from China Luoyang Zhongde
-
2012 Popular Sell in Africa MBS(Y)-1530 Stone Grinding Machine Mnufacturer with Competitive Price from China Luoyang Zhongde
-
high efficient durable MBS(Y)-1530 tube ball mill manufacturer with competitive price
Product Details
| Condition | New | Type | Ball Mill | |
| Motor Type | DC Motor | Capacity(t/h) | 6-190 | |
| Place of Origin | Henan, China | Brand Name | Zhongde | |
| Model Number | MBS(Y) | Certification | ISO, BV,CE | |
| Warranty | one year, 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Customized products2.ISO9001:2008
3.Effective volume:4.5-54m3
4.Capacity:6-190t/h
5.Discharging size:2.0-0.15mm

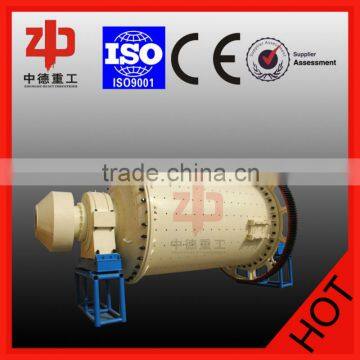

Tube Mill
Application:
Ball mill is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
It also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Structure of Ball mill:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).
The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance.
Technical parameter
| Model | Diameter of cylinder(mm) | Length of cylinder(mm) | Effective volume(m3) | Max. rod loading(t) | Speed(r/min) | Capacity(t/h) | Discharging size(mm) | Main motor(kw) |
| MBS(Y)-1530 | 1500 | 3000 | 4.5 | 8 | 27 | 15-6 | 2.0-0.15 | 90 |
| MBS(Y)-1830 | 1830 | 3000 | 6.7 | 14 | 23.7 | 20-9 | 2.0-0.15 | 155 |
| MBS(Y)- 1832 | 1830 | 3200 | 7.2 | 15 | 23.7 | 22-10 | 2.0-0.15 | 155-180 |
| MBS(Y)- 2130 | 2100 | 3000 | 8.8 | 18 | 21.4 | 30-12 | 2.0-0.15 | 210 |
| MBS(Y)- 2132 | 2100 | 3200 | 9.6 | 20 | 21.4 | 32-12.8 | 2.0-0.15 | 210 |
| MBS(Y)- 2136 | 2100 | 3600 | 11 | 23 | 21.4 | 35-14 | 2.0-0.15 | 245 |
| MBS(Y)- 2230 | 2200 | 3000 | 10 | 21 | 19 | 34-13 | 2.0-0.15 | 245 |
| MBS(Y)- 2236 | 2200 | 3600 | 12 | 25 | 19 | 40-16 | 2.0-0.15 | 245 |
| MBS(Y)- 2430 | 2400 | 3000 | 12 | 25 | 19 | 40-17 | 2.0-0.15 | 280 |
| MBS(Y)- 2436 | 2400 | 3600 | 14 | 29 | 19 | 47-19 | 2.0-0.15 | 320 |
| MBS(Y)- 2730 | 2700 | 3000 | 15.5 | 32.5 | 18.4 | 55-21 | 2.0-0.15 | 355 |
| MBS(Y)- 2736 | 2700 | 3600 | 18 | 38 | 18.4 | 65-24 | 2.0-0.15 | 400 |
| MBS(Y)- 2740 | 2700 | 4000 | 20.6 | 43 | 18.4 | 80-28 | 2.0-0.15 | 480 |
| MBS(Y)- 3040 | 3000 | 4000 | 25.7 | 54 | 17 | 90-34 | 2.0-0.15 | 630 |
| MBS(Y)- 3230 | 3200 | 3000 | 21 | 44 | 16.4 | 73-28 | 2.0-0.15 | 500 |
| MBS(Y)- 3245 | 3200 | 4500 | 32 | 67 | 16.4 | 120-44 | 2.0-0.15 | 800 |
| MBS(Y)- 3642 | 3600 | 4200 | 38 | 79.5 | 15.8 | 120-50 | 2.0-0.15 | 1000 |
| MBS(Y)- 3645 | 3600 | 4500 | 40.8 | 85 | 15.8 | 140-56 | 2.0-0.15 | 1000-1250 |
| MBS(Y)- 3660 | 3600 | 6000 | 54 | 113 | 15.8 | 190-80 | 2.0-0.15 | 1400 |
Manufacturing process of Ball Mill:
