mobile jaw crusher plant station
USD $50,000 - $1,000,000
/ Set
1 Set(Min.Order)
- 10 Plant / Plants per Month
- Tianjin Qingdao Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hot SALE!!! toothed roll crusher mobile crushering station/plant
-
stone mobile crusher station by Luoyang Zhongde
-
Saving Energy Ball Mill
-
Hot Sale Cement Use Ball Mill, Ore Grinding Machine for Sale
-
Long working life high technology ball mill for sale
-
After-sale service provided Engineers available to service machinery overseas ball mill for sale
Product Details
| Condition | New | Type | Other, mobile crusher | |
| Application | stones, flagstones, ore | Motor Type | AC Motor | |
| Power(W) | negotiable | Capacity(t/h) | 90-650 | |
| Place of Origin | Henan, China | Brand Name | ZHONGDE | |
| Model Number | HX938F1210 | Dimension(L*W*H) | negotiable | |
| Certification | CE & ISO9001:2008 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Low energy and steel consumption2.High capacity and crushing efficiency
3.Movable type
4.Convenient cooperation

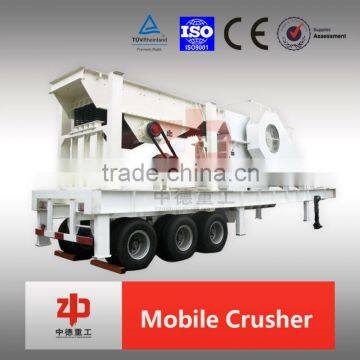

Mobile Jaw Crusher
1.Optimized design of ship form frame structure, the low vehicle chassis, compact and reasonable structure, modular assembly structure, small turning radius and convenient transportation.
2.Folding type feeding bin, hydraulic support guard board, easy and reliable operation.
3.The control cabinet equips with the advanced words touch control screen, PLC control system, ensuring the functions of starting, process adjustment, disoperation tip and protection, electrical control operation, fault and safety tip.
4.The feeder can presort fines, automatic design for silo door, controlling the direction of dividing material.
5.The angle of conveyor is adjustable, and the conveyor can be turned and folded, extending operation conditions, easy for transportation.
6.Adopt stream-line design for vehicle structure, compact and reasonable mechanics optimization structure.
7.Landing leg can hydraulically rise and fall, easy and flexible for operation.
Technical Parameters:
| Model | HX938F1210 | HX938FW1214 II | HX1149F1214 | HX1149F1315 | HX1149FW1315 II | HX1349FW1318 II |
| Transportation Length(mm) | 12000 | 12000 | 13500 | 13500 | 13500 | 14600 |
| Transportation Width(mm) | 2550 | 2550 | 2800 | 2900 | 2800 | 2800 |
| Transportation Height(mm) | 3900 | 3900 | 4450 | 4450 | 4350 | 4500 |
| Maximum Lengt(mm) | 12500 | 12500 | 13500 | 13500 | 14600 | 14600 |
| Maximum Width(mm) | 2900 | 2950 | 2950 | 2950 | 2950 | 3250 |
| Maximum Height(mm) | 4100 | 4100 | 5200 | 5200 | 5200 | 5200 |
| Tire Configuration | Dualaxial | Duaxial | Triaxial | Triaxial | Triaxial | Triaxial |
| Jaw Crusher | PF-1210 | PFW-1214 II | PF-1214 | PFW-1315 II | PFC1315S | PFW1318 II |
| The Maximum Feeding Size(mm) | 300 | 500 | 300 | 350 | 600 | 700 |
| Capacity(t/h) | 70-130 | 130-200 | 90-180 | 120-250 | 180-320 | 240-400 |
| Vibrating Feeder | ZSW950Χ3800 | ZSW950Χ3800 | ZSW110Χ4900 | ZSW110Χ4900 | ZSW110Χ4900 | ZSW130Χ4900 |
| Main Belt Conveyor | B800Χ8.5M | B800Χ8.5M | B1000Χ9M | B1000Χ9M | B1000Χ9M | B1200Χ9.5M |
| Side-opening Belt Conveyor(Optional) | B450Χ3.2M | B450Χ3.2M | B500Χ3.5M | B500Χ3.5M | B500Χ3.5M | B650Χ4M |
| Genset (Optional)(KW) | 200 | 250 | 250 | 330 | 330 | 380 |
| Iron Seperator (Optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 | RCYD(C)-12 |
