low price stone crusher hard rock mobile crushing plant for sale
- 10 Plant / Plants per Month
- Tianjin Qingdao Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Jaw Crusher | |
Application | varieties | Motor Type | AC Motor | |
Capacity(t/h) | 90-180 | Place of Origin | Henan, China | |
Brand Name | zhongde | Model Number | HX938E69 | |
Dimension(L*W*H) | depend on the specific equipment | Weight | negotiable | |
Certification | BV,CE certificate | Warranty | one year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Low energy and steel consumption2.High capacity and crushing efficiency
3.Movable type
4.Convenient cooperation

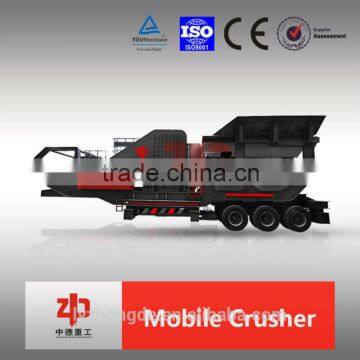

Mobile Jaw Crusher
1.Optimized design of ship form frame structure, the low vehicle chassis, compact and reasonable structure, modular assembly structure, small turning radius and convenient transportation.
2.Folding type feeding bin, hydraulic support guard board, easy and reliable operation.
3.The control cabinet equips with the advanced words touch control screen, PLC control system, ensuring the functions of starting, process adjustment, disoperation tip and protection, electrical control operation, fault and safety tip.
4.The feeder can presort fines, automatic design for silo door, controlling the direction of dividing material.
5.The angle of conveyor is adjustable, and the conveyor can be turned and folded, extending operation conditions, easy for transportation.
6.Adopt stream-line design for vehicle structure, compact and reasonable mechanics optimization structure.
7.Landing leg can hydraulically rise and fall, easy and flexible for operation.
Technical Parameters:
Model | HX938E69 | HX1149E710 | HX1349E912 | HX1349EW86 | HX1349EW110 |
Transportation Length(mm) | 12000 | 13500 | 14600 | 14600 | 15500 |
Transportation Width(mm) | 2550 | 2550 | 2950 | 2550 | 2950 |
Transportation Height(mm) | 3750 | 4500 | 4500 | 4500 | 4500 |
Maximum Length(mm) | 12500 | 14000 | 14600 | 14600 | 15500 |
Maximum Width(mm) | 2900 | 2950 | 3300 | 3300 | 3300 |
Maximum Height(mm) | 4100 | 4900 | 5300 | 5300 | 5700 |
Tire Configuration | Dualaxial | Triaxial | Triaxial | Triaxial | Triaxial |
Jaw Crusher | PE600Χ900 | PE750Χ1060 | PE900Χ1200 | PEW860 | PEW1100 |
The Maximum Feeding Size(mm) | 480 | 630 | 750 | 730 | 940 |
Discharge Opening Size(mm) | 65-160 | 80-140 | 100-200 | 75-225 | 150-275 |
Capacity(t/h) | 90-180 | 110-320 | 220-450 | 150-500 | 300-650 |
Vibrating Feeder | ZSW380Χ95 | ZSW490Χ110 | ZSW460Χ130 | ZSW460Χ130 | ZSW460Χ130 |
Main Belt Conveyor | B800Χ8.5M | B500Χ3.5M | B650Χ4M | B650Χ4M | B650Χ4M |
Side-opening Belt Conveyor(Optional) | B450Χ3M | B500Χ3.5M | B650Χ4M | B650Χ4M | B650Χ4M |
Genset (Optional)(KW) | 160 | 200 | 220 | 250 | 300 |
Iron Seperator (Optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 | RCYD(C)-12 | RCYD(C)-12 |
Pictures for reference:
