JYB Transport Electric Wheel Winch for Sale
- any ports
- T/T Credit Card
You May Like
-
JYB-60*1.25 Transport Hydraulic Mining Winch
-
6 Ton 850 Meter Haulage Windlass of Mining Equipment
-
60KN Hydraulic Electric Mine Drawing Winch
-
5ton Pushing Force Hydraulic Electric Mine Transporting Winch
-
6 Ton Auto Application Electric Mining Transport Winch
-
40KN Transport Winch Used for Roadway Traction Tramcar
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Wells | |
| Model Number | JYB-50*1.40 | Power Source | Hydraulic | |
| Application | Other, mine equipment | Capacity | 5~650KN |
Product Description

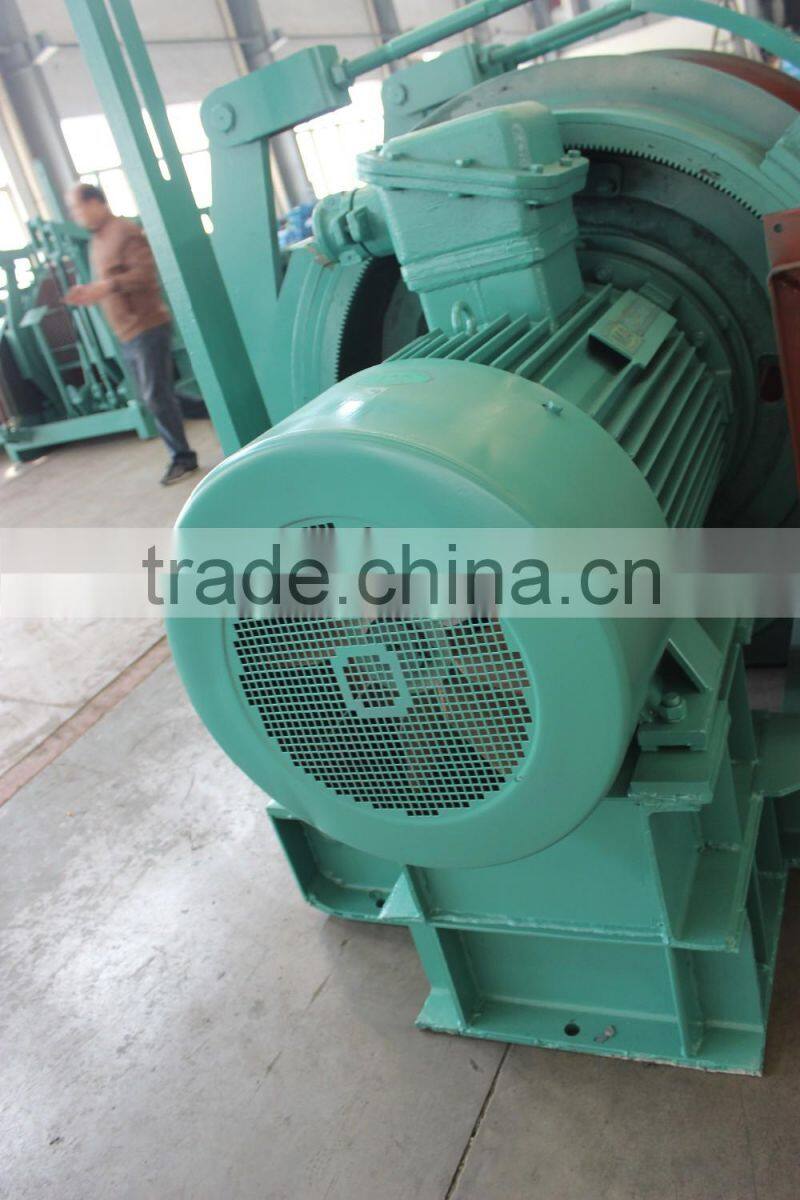

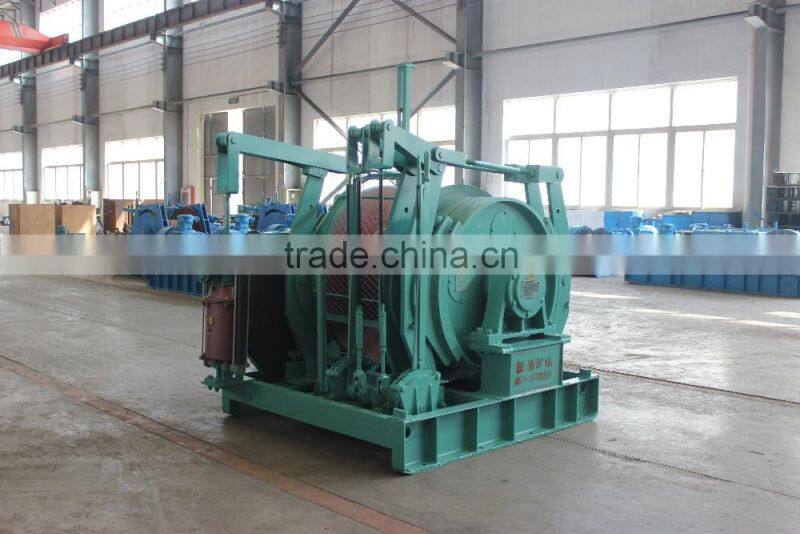

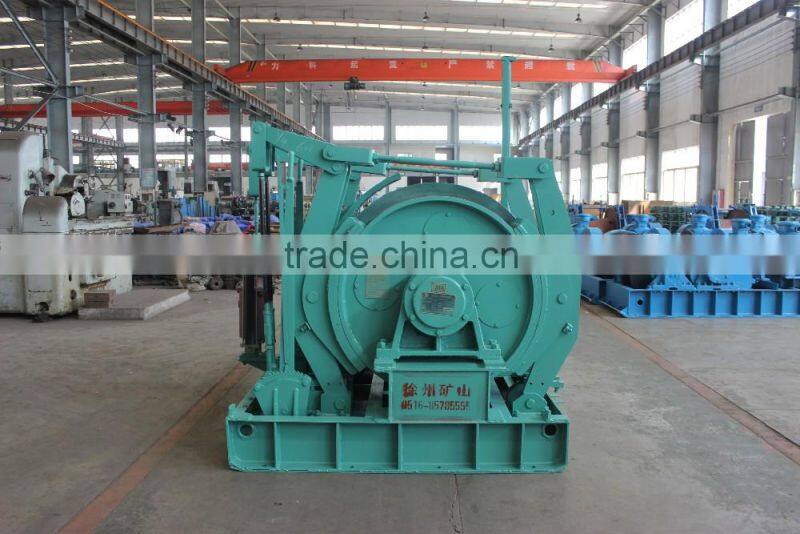

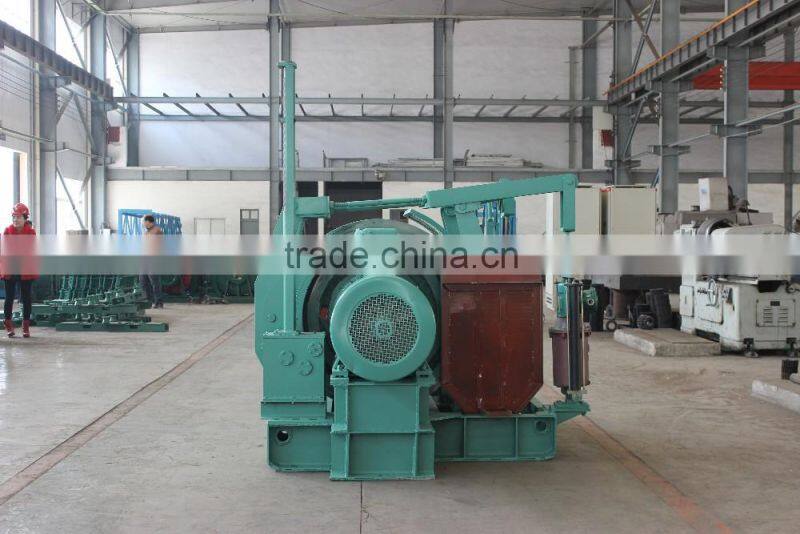

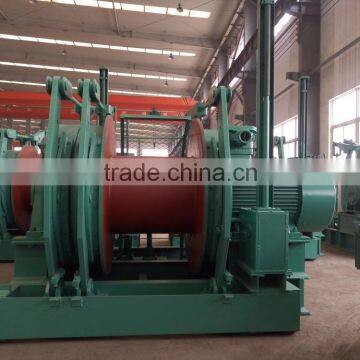

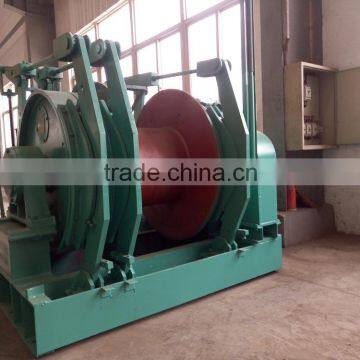

JYB transport electric wheel winch for sale
1.JYB series transport winch Mainly applied in coal mine or other mine’s underground roadway, for drawing carts and doing some assistant transfer works on the roads whose slope is lower than 30°.
2.JYB series transport winch consist of two-stage planetary gear transmission system.
3.Feature: compact structure, high efficiency, easy operation, low noise, safe and reliable braking system.
4.Caution:Can NOT used for loading people or lifting.

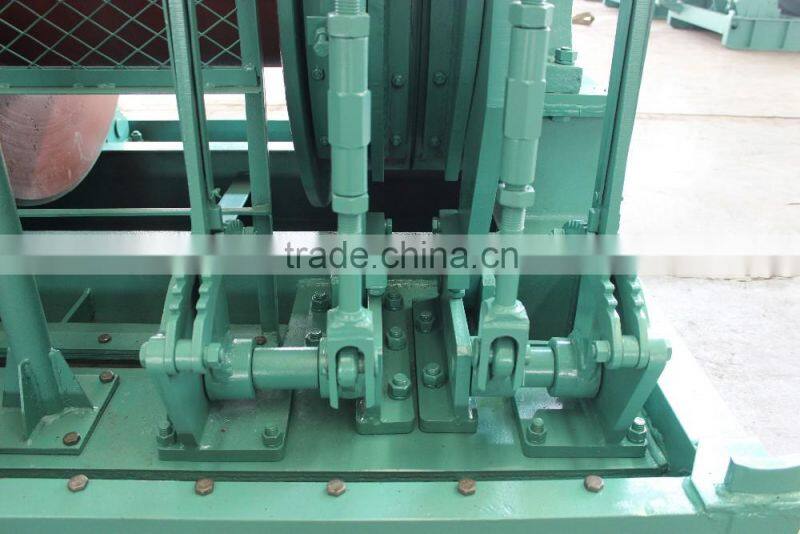

5.JYB series transport winch have independent safety brake and working brake,safe and reliable.
Product category and techinal parameter:
| Model | JYB-40*1.25 | JYB-50*1.40 | JYB-60*1.25 |
| Wire rope base static tension KN | 40 | 50 | 60 |
| Wire rope base speed m/s | 1.25 | 1.40 | 1.25 |
| roller diameter × width mm | 580 ×600 | 580 ×600 | 710 ×800 |
| Wire capacity m | 820 | 710 | 850 |
| Wire rope diameter mm | 22 | 24 | 26 |
| Motor model | YBK2-280M-6 | YBK2-280S-4 | YBK2-315M-6 |
| Motor power kw | 55 | 75 | 90 |
| Motor speed r/min | 980 | 1480 | 989 |
| Electro-hydraulic thrusters | BYT1-180/12 | BYT1-180/12 | BYT1-320/12 |
| Dimension length*width*height mm | 2650 ×2280 ×2150 | 2650 ×2280 × 2150 | 2850 ×2732 ×2290 |
| Winch weight kg | 4620 | 4680 | 6200 |
Our packaging: The standard wooden case or as custmers required.
Xuzhou Mine Equipment Manufacturing Co.,Ltd founded in 1956. As a leader of mining equipment manufacture in China,we have been devoted to creating new and high quality products in mining field for more than 50 years.
Our main products including SQ and JWB endless rope continuous tractor, JSDB series double speed multi-purpose winch, JYB series transport winch, JD series shunting winch, JH series prop-pulling winch, JHMB series slow speed drawing winch, and JZ series sinking winch and etc.
Our sales network is not only in domestic, but also exported to foreign for many years.
1. One year warranty for whole machines
2. Low charge for continue maintenance when warranty is expired
3. Exclusive engineer support at any time
Why choose your company?
1. We are the professional maufacturer since 1956,one of biggest supplier in China.
2. We supply high quality products with reasonable price.
3.We have professional sales team.
4.Experienced exporting for all over the world.
5.We provide good after-sales sevice.
