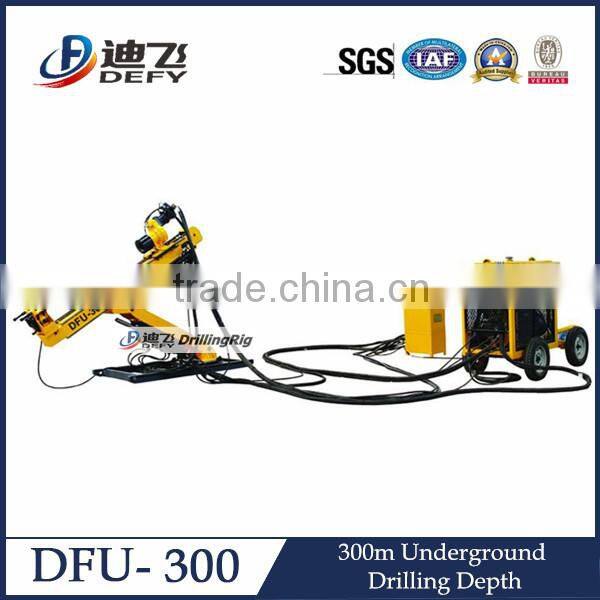

100-300m Underground Drilling Rig DFU-300 for Mining

Brief Details of Underground Drilling Rig:

1. Model No.: DFU-300

2. Max. Drilling Depth: 300m

3. Drill Rod Diameter: 55mm, 71mm

4. Warranty: One year guarentee excluding wearing parts

5. Certifications: BV,SGS Certificate

6. Applications: water well geological exploration, irrigation well etc.

First of all, do you have an idea of the drilling rig you are looking for? The following questions will help you to get suitable drilling machine for your business.

1. What kind of projects you will work for,Water well,Borehole,Exploration coring,Foundation

Piling or others?
2. The Max. depth of drilling you hope to achieve?
3. The Min. and Max. hole diameter you estimate?
4. Condition of the environment, Soft ground like soil,mud,Hard ground like rocks or Mixed the

soft and hard layers?
The more details of your need are told from you, the better our engineers are able to recommend you the suitable models.

Product Specifications of DFU-300 Water Well Drilling Rig:

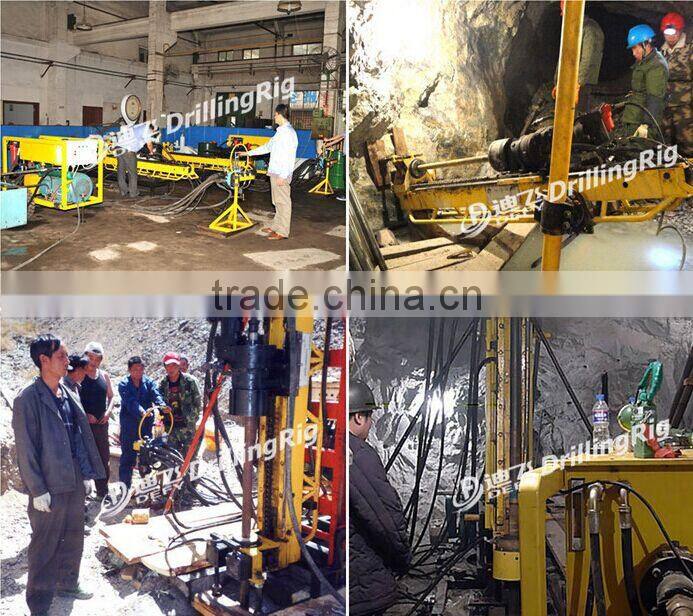

DFU-300 hydraulic underground drill rig is mainly applied in the fields of coal, geology, metallurgy and engineering. It is used for drilling large dia. gas suction hole in mines, gallery as well as coal mine, water injection hole, and big dia. horizontal hole. It can meet the big dia. roller drilling, hard

tungsten-carbide drilling and percussive-rotary drilling.

Features

1. It is separate in structure, small in size, light in weight, flexible in movement and convenient in

operation.

2. The hydraulic pump is driven by explosion-proof electric motor through operating system, then the hydraulic pump enforces hydraulic motor  to make drill head rotate, and at the same time, the movement  of drill head is realized by oil cylinder & chain double speed mechanism.

3. Hydraulic chuck can satisfy the function of shackles and power-off protection.

4. The sliding and extending & retracting function of the mast makes it convenient for the bottom

of mast to touch the ground or platform, thus the drill rig will be more stable.

5. The swinging arm and mast can do luffing movement, which satisfy the request of

multi-angle drilling.

6. The range of spindle rotating speed is wide and the torque is large.

Parameters of DFU-300 Hydraulic Underground Drilling Rig:

We build the portable water well drilling rigs with nothing but the best components and materials. No matter what model of drilling rig you choose, you can rest assure that we have put many hours builing, testing and inspecting your rig.
