Max. Drilling Depth 300m Underground Coal Drilling Rig
- Qingdao Ningbo
- T/T Credit Card
You May Like
-
DFU-M75 Underground Core Drill Rig
-
Full Hydraulic Underground Drilling Rig, Tunnel Boring Machine Sale DFU-M56-1
-
DFU-300 Underground Drilling Machine, Tunnel Boring Machine Parts
-
DFU-300 Rock Core Tunnel Drilling Machine, Underground Drill Rigs for Sale
-
DEFY Brand Used Tunnel Boring Machine for Sale
-
DFU-300 Used Tunnel Boring Machine Sale
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Other, Electric, Electric | Place of Origin | Henan, China | |
| Brand Name | DEFY | Model Number | DFU-300 | |
| Usage | Ore | Voltage | 380V | |
| Power(W) | 45KW | Dimension(L*W*H) | 2950*950*1850mm(main machine) | |
| Certification | BV,SGS certificate | Warranty | One year warranty excluding wearing parts | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

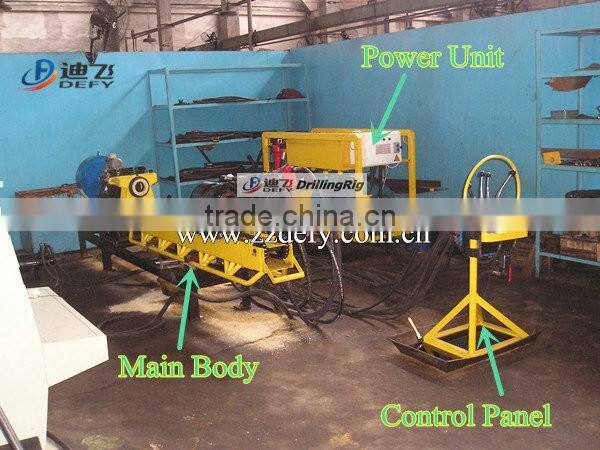

Max. drilling depth 300m underground coal drilling rig
Product Specifications of DFU-300 Drilling Rig:
DFU-300 hydraulic underground drill rig is mainly applied in the fields of coal, geology, metallurgy and engineering. It is used for drilling large dia. gas suction hole in mines, gallery as well as coal mine, water injection hole, and big dia. horizontal hole. It can meet the big dia. roller drilling, hard
tungsten-carbide drilling and percussive-rotary drilling.
Features
1. It is separate in structure, small in size, light in weight, flexible in movement and convenient in
operation.
2. The hydraulic pump is driven by explosion-proof electric motor through operating system, then the hydraulic pump enforces hydraulic motor to make drill head rotate, and at the same time, the movement of drill head is realized by oil cylinder & chain double speed mechanism.
3. Hydraulic chuck can satisfy the function of shackles and power-off protection.
4. The sliding and extending & retracting function of the mast makes it convenient for the bottom
of mast to touch the ground or platform, thus the drill rig will be more stable.
5. The swinging arm and mast can do luffing movement, which satisfy the request of
multi-angle drilling.
6. The range of spindle rotating speed is wide and the torque is large.
Parameters of DFU-300 Hydraulic Underground Drilling Rig:
1.Drilling depth |
|
Φ55mm(2.17inch) | 300m(984feet) |
Φ71mm(2.80inch) drill rod | 200m(656feet) |
2. Drill rod spec. | Φ55×1500mm(Φ2.17×59inch) drill rod Φ71×1500mm(Φ2.80×59inch) drill rod |
3. The range of spindle rotating speed | 425-1280rpm |
4.The max. rotating torque of spindle | 795 N·m(586 lbf·ft) |
5. The working pressure: | 25 Mpa(3626 psi) |
6. Spindle stroke | 1600mm(63 inch) |
7. The max. Lifting force of drill head | 62KN(13938 lbf) |
8. The max. Feeding force of drill head: | 33KN(7418 lbf) |
9. The sliding stroke of mast | 495mm(19.5 inch) |
10. The swing angle of mast bracket (left & right) |
90°
|
11.The swing angle of arm (up and down)
| 100° |
12. Power unit | YB225M-4(dIICT4)explosion-proof electric motor 45KW (60HP)/1480rpm |
13. Dimensions | Main machine (L*W*H): 2950x950x1850mm (116x37.4x72.8 inch) |
Power unit (L*W*H): 1900x980x132mm (74.8x38.6x5.2 inch) | |
Operation cabinet (L*W*H): 540x360x1080mm (21.3x14.2x42.5 inch) |
Working site
Packing and delivery
Our Service
1.Professional technical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. has more than 40 years experience of production and development of drilling rig equipment.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. DEFY Brand drilling machine have been widely exported to Chile, Russia, Australia, Malaysia, Kenya, Tanzania, Zambia, South America, Peru, Zimbabwe, etc.Our professional engineer and sales teams, offering technical support and useful advice whenever you need.
Thanks for browse our products information. If you have any question, or want to know more about drilling rig, Pls contact me directly:
Nora
Skype/MSN: nora-drillingrig @
Phone/WhatsApp: +86-15286806707
Email: nora @
Tel: 86-371-55819257
Fax: 86-371-66770722
