JD- Series Dispatching Winch Underground Mine Equipment
- Lianyungang Port
- T/T Credit Card
You May Like
-
JD-1.6A Dispatching Coal Mine Winch Made in China
-
High Quality JD-4 Dispatching Winch Used for Coal Mine Equipment
-
High Quality JD-3 Dispatching Winch for Mining Equipment
-
JD Series Dispatching Mining Used Winch for Sale
-
JD 1.6tons Underground Mine Dispatching Winch
-
Mining Hydraulic Electric Dispatching Winch Manufacturer
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Wells | |
| Model Number | JD-1 | Power Source | Hydraulic | |
| Application | Other, mine equipment | Capacity | 5~650KN |
Product Description

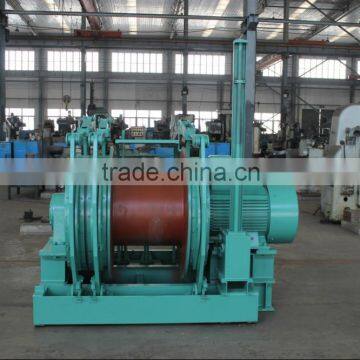

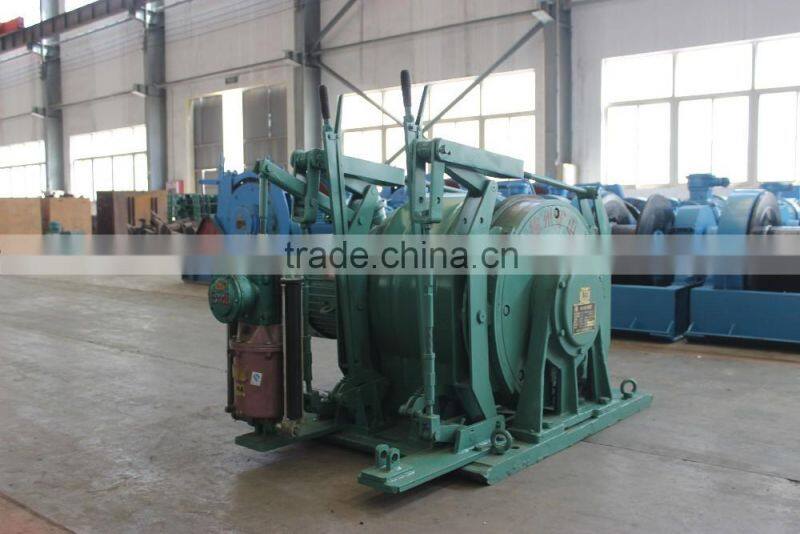

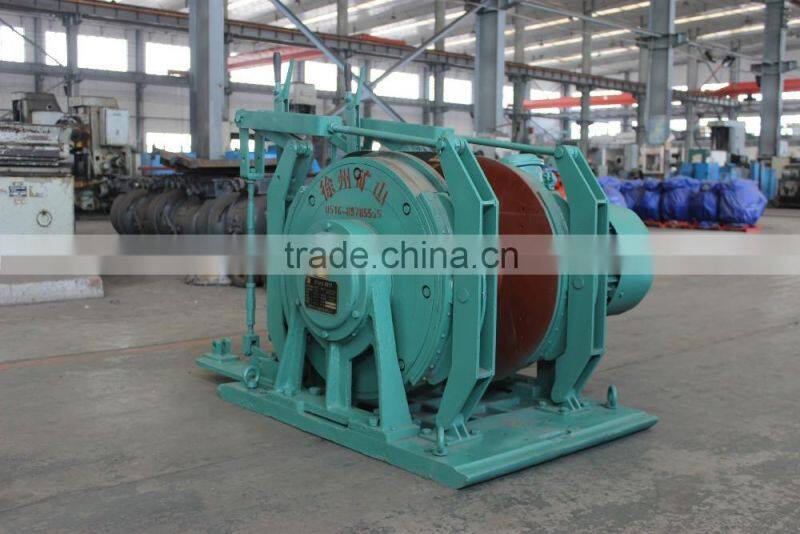

JD- series dispatching winch underground mine equipment
1.JD series dispatching winch mainly applied in mine underground roadway to dispatch carts or other assistant transmission works, also can be used in surface ground, Metallurgical mines, construction site, etc.
consist of two-stage planetary transmission system, drum, brake, hydraulic push rod, base, cover etc.
2.Feature: compact structure, good rigidity, high efficiency, convenient installment, start smoothly, flexible operation, stable brake, reliable brake system, low noise
3.JD-1.6A, JD-2.5C have been added in electric & hydraulic pushing device as safety arrestment braking system surface ground or underground inclined roadways and small scale shaft to lift materials.
Product category and telechinal parameter:
| Model | JD-1 | JD-1.6 | JD-1.6A | JD-2 | JD-2.5 | JD-2.5C | JD-3 | JD-4 |
| Wire rope outer maximum static tension KN | 10 | 16 | 16 | 20 | 25 | 25 | 30 | 40 |
| Wire ropr outer speed m/s | 1.00 | 1.20 | 1.20 | 1.20 | 1.25 | 1.25 | 1.25 | 1.25 |
| Roller diameter mm | 225 | 300 | 300 | 300 | 620 | 620 | 620 | 580 |
| Roller width mm | 303 | 356 | 356 | 356 | 580 | 580 | 580 | 600 |
| Wire capacity m | 400 | 400 | 400 | 400 | 650 | 650 | 650 | 650 |
| Wire rope diameter mm | 12 | 16 | 16 | 16 | 20 | 20 | 20 | 22 |
| Motor power Kw | 11.4 | 25 | 25 | 30 | 40 | 40 | 45 | 55 |
| Motor speed r/min | 1460 | 1470 | 1470 | 1470 | 1470 | 1470 | 1480 | 990 |
| Electro-hydraulic thrusters | / | / | BYT90/8 | / | / | BYT125/10 | / | BYT180/12 |
Dimension length mm | 1100 | 1345 | 1345 | 1500 | 1900 | 1900 | 2080 | 2650 |
| width mm | 765 | 1140 | 1525 | 1200 | 2350 | 2550 | 2350 | 1965 |
| height mm | 730 | 1190 | 1190 | 1190 | 1370 | 1370 | 1370 | 1425 |
| Winch weight kg | 550 | 1460 | 1525 | 1558 | 2800 | 2950 | 2850 | 3650 |
Xuzhou Mine Equipment Manufacturing Co.,Ltd founded in 1956. As a leader of mining equipment manufacture in China,we have been devoted to creating new and high quality products in mining field for more than 50 years.
Our main products including SQ and JWB endless rope continuous tractor, JSDB series double speed multi-purpose winch, JYB series transport winch, JD series shunting winch, JH series prop-pulling winch, JHMB series slow speed drawing winch, and JZ series sinking winch and etc.
Our sales network is not only in domestic, but also exported to foreign for many years.
1. One year warranty for whole machines
2. Low charge for continue maintenance when warranty is expired
3. Exclusive engineer support at any time
Any inquiry,pls feel free to contact us!
