Home > Products > Auto Brake Disc > 51848619 46806233 Disc Brake Rotor 280mm Used for Fiat Ducato Bus Ducato Box

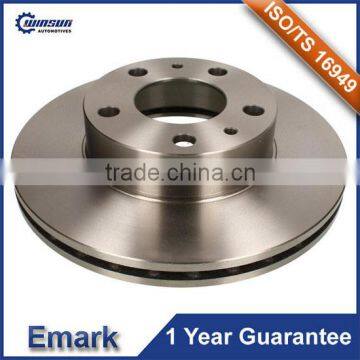

51848619 46806233 Disc Brake Rotor 280mm Used for Fiat Ducato Bus Ducato Box

FOB Price

US$ 4 - 10 / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

51848619 46806233 Disc Brake Rotor 280mm Used for Fiat Ducato Bus Ducato Box

Reference Number
4249H8 4249K3 424999 424926 424927 4246L4 4246Y1 4246L2 4246X9 1607872080 51848619 46806233 1300501080 51740244
Vehicle Application
Passenger Car
Specification
	Item Name	51848619 46806233 Disc Brake Rotor 280mm Used for Fiat Ducato Bus Ducato Box
A	Diameter	280 mm
B	Brake Disc Thickness	24 mm
C	Centering Diameter	73 mm
D	Height	67.6 mm
E	Pitch Circle Diameter	118 mm
	Number of holes	5
	Location	FRONT
	Solid or Vented	VENTED

6.1 Material Paragram of brake disc, rotor & brake drum:

Standard	C	Si	Mn	P	S	C.E
G3000	3.1~3.4	1.9~2.3	0.6~0.9	≤ 0.15	≤ 0.15	3.90~4.15

6.2 Mechanical Properties of brake disc, rotor & brake drum:

1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS

6.3 Microstructure of brake disc, rotor & brake drum:

Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%

Main Products
*C.V. Brake Disc/C.V. Brake Drum/C.V. Brake Pad Set/C.V. Brake Shoe Set/C.V.Brake Lining/Flywheel*
*Auto Brake Disc/Auto. Brake Drum/Auto. Brake Pad Set*
Main Application
*European & American & Japanese Commercial Vehicle, Main Brand Passenger Car*
