4249C0 4246P3 4246P4 9464222687 China Auto Parts Disc Brake Imported

FOB Price

US$ 4 - 10 / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

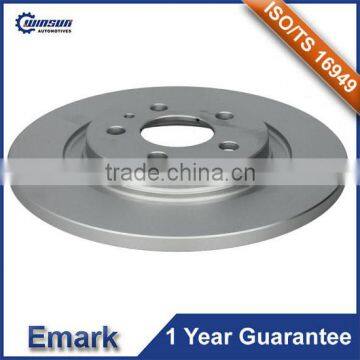

4249C0 4246P3 4246P4 9464222687 China Auto Parts Disc Brake Imported

Reference Number
4249C0 4246P3 4246P4 9464222687
Vehicle Application
Passenger Car
Specification
	Item Name	4249C0 4246P3 4246P4 9464222687 China Auto Parts Disc Brake Imported
A	Diameter	272 mm
B	Brake Disc Thickness	12 mm
C	Centering Diameter	59 mm
D	Height	28 mm
E	Pitch Circle Diameter	98 mm
	Number of holes	5
	Location	REAR
	Solid or Vented	SOLID

6.1 Material Paragram of brake disc, rotor & brake drum:

Standard	C	Si	Mn	P	S	C.E
G3000	3.1~3.4	1.9~2.3	0.6~0.9	≤ 0.15	≤ 0.15	3.90~4.15

6.2 Mechanical Properties of brake disc, rotor & brake drum:

1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS

6.3 Microstructure of brake disc, rotor & brake drum:

Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%

Main Products
*C.V. Brake Disc/C.V. Brake Drum/C.V. Brake Pad Set/C.V. Brake Shoe Set/C.V.Brake Lining/Flywheel*
*Auto Brake Disc/Auto. Brake Drum/Auto. Brake Pad Set*
Main Application
*European & American & Japanese Commercial Vehicle, Main Brand Passenger Car*
