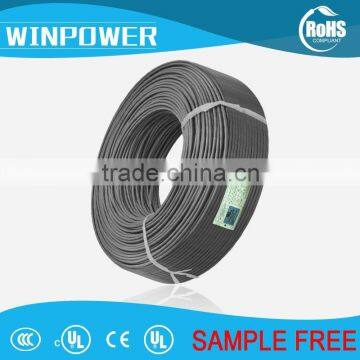

JYJ150 1140V 25mm stranded copper high tempe lead wire
- Port of Shanghai
- T/T
You May Like
-
JYJ150 1140V tinned copper lead wire 35mm
-
JYJ150 1140V crosslinked heat-resistant electrical equipment lead wire factory
-
1140v tinned copper irradiated crosslinked wire
-
1140v tinned copper electrical equipment wire company
-
JYJ125 750V XLPE insualtion copper industrial electrical wire
-
JYJ125 XLPE 1.5mm copper motor lead wire
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Winpower | |
| Model Number | JYJ150 1140V 25MM2 | Type | Insulated | |
| Application | Other, motor lead wire, internal wiring of electrical motor | Conductor Material | Copper | |
| Conductor Type | Stranded | Insulation Material | PE |
Product Description
JYJ150 1140V 25mm stranded copper high tempe lead wire
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PEwhich comply with the European Union RoHS environmental protection instruction.
Specification: JYJ150 1140V 25.0MM2
- Rated temperature:150 centigrade
- Rated voltage: 1140V
- Reference Standard: JB/T 6213.6-2006
- Conductor: stranded tinned copper conductor
- Insulation: XLPE insulation, comply with ROHS environmental standard
- Uniform thickness to ensure stripping and cutting easily
- Applied into CLASS B,F,H motor
- CABLE CONSTRUCTION:
CONDUCTOR | INSULATION | MAX.COND. RESISTANCE (Ω/km,20°C,DC) | DIELECTRIC STRENGTH (VAC,1min) | |||
mm2 | CONSTRUCTION (No./mm) | DIA.(mm) | THICKNESS (mm) | O.D. (mm) | ||
0.50 | 16/0.20 | 0.92 | 0.60 | 2.25 | 40.1 | 3,000 |
0.75 | 24/0.20 | 1.13 | 0.60 | 2.40 | 26.7 | 3,000 |
1.0 | 32/0.20 | 1.31 | 0.60 | 2.60 | 20.0 | 3,000 |
1.5 | 30/0.25 | 1.58 | 0.70 | 3.05 | 13.7 | 3,000 |
2.5 | 49/0.25 | 2.02 | 0.70 | 3.60 | 8.21 | 3,000 |
4.0 | 56/0.30 | 2.60 | 0.70 | 4.10 | 5.09 | 3,000 |
6.0 | 84/0.30 | 3.42 | 0.80 | 5.20 | 3.39 | 3,000 |
10 | 84/0.40 | 4.56 | 0.90 | 6.30 | 1.95 | 3,000 |
16 | 126/0.40 | 5.60 | 1.00 | 8.00 | 1.24 | 3,000 |
25 | 196/0.40 | 6.95 | 1.00 | 9.20 | 0.795 | 3,000 |
35 | 276/0.40 | 8.74 | 1.00 | 10.90 | 0.565 | 3,000 |
50 | 396/0.40 | 10.46 | 1.20 | 13.20 | 0.393 | 3,000 |
70 | 360/0.50 | 12.50 | 1.20 | 15.20 | 0.277 | 3,000 |
95 | 475/0.50 | 13.73 | 1.40 | 17.00 | 0.210 | 3,000 |
