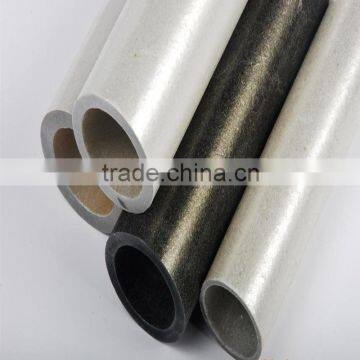

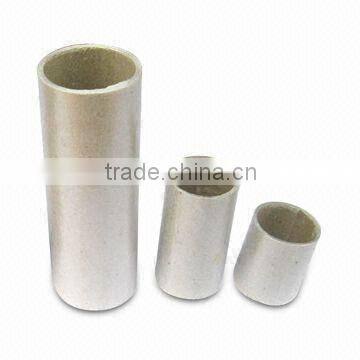

High Temperature Resistant Mica Plate,tube

Available:

Size: Sheets of 1000 x 600 mm 1000 x 1200 mm ,

Strips and punched parts according to drawings for thickness 0, 1 to 2 , 0 mm .

Thickness: 0, 1mm , 0.15mm , 0.2mm , 0.25mm , 0.3mm , …… 5.0mm .

 Production simple description

Natural  Mica Plate

  Natural Mica plate is a kind of natural material  from rock,contain muscovite,quartz, rutile,have good  stability of heat resistance,more than 600℃,flogopite mica sheet can resistance of 800 ℃.

 It is stripping from thicker pure mica sheet ,have its fixed size and thickness,thiner small piece is white color.

Pollution-free and high dieletrical strength.

Rigid Mica Plate

szwanrun Rigid Mica Plate  is a kind of rigid laminated material, constructed of muscovite or phologpite mica paper with silicon resin.

They are known by its excellent thermal resistance, good flame resistance, high dielectric strength, excellent physical strength, and little smoke by heating.

The products have been widely used in the industries of household electric appliances (clothes irons, hair dryers, toaster, kettles, cooking appliances, microwave ovens, air heaters), metallurgy(frequency furnace, intermediate frequency furnace, arc furnace), medical appliances, etc.

Flexible Mica Plate

 Szwanrun  Flexible Mica Plate is a kind of flexible laminated material, it has excellent dielectric, excellent tensile strength and easy to form at room temperature. They are often used for hair dryers, curlers, electric irons, motors and so on.

Glossy Mica Plate

Szwanrun  series of Glossy Mica Plate are made from muscovite(or phlogopite) mica paper and high temperature resistant silicon resin, compared with rigid mica plate, its surface are very smooth, but properties have no different.(5660-G) series has two species: glossy muscovite mica plate(5660-G1) and glossy phologpite mica plate (5660-G3)
.

Thick Mica Plate

Szwanrun series of Thick Mica Plate is rigid mica plate with thickness over 3mm, it is mica lamination designed for providing outstanding resistant to high voltage and high temperature. 5660-T series has two species: thick muscovite mica sheet (5660-T1) and thick phlogopite mica sheet (5660-T3)
.

Thick mica plate is used for cylindrical resistance heaters, thermal insulation in circuit breakers, chemical-engineering and electric appliances, electric sterilized cabinet, and in steel or metallurgy industry for intermediate frequency furnace, arc furnace, etc.

 Properties

Excellent  flexural strength

Good Toughness

Excellent capability of environment- friendly

Don’t contain asbestos

Smoke less& Tiny smell when heating

No delaminated

Good electrical insulation performance
