10ml-1000ml Plastic Bottle Injection Blow Molding Machine ISBM
- FOB any Chinese port
- T/T
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PP | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Yes | Place of Origin | Hunan, China | |
| Brand Name | FE | Model Number | ISBM | |
| Voltage | 10ml-1000ml Plastic Bottle Injection Blow Molding Machine ISBM | Power(W) | 13kw | |
| Dimension(L*W*H) | 3.75x1.43x3.15m | Weight | 5500kg, 5500kg | |
| Certification | GMP/CE | Warranty | 1year, 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

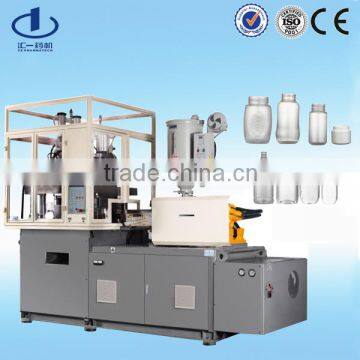

10ml-1000ml Plastic Bottle Injection Blow Molding Machine ISBM
Technical Parameters
Specification Item | Unit | Date |
Screw Diameter | Mm | 40 |
Injection Capacity | G | 207 |
Machine Weight | Kg | 5500 |
Max.Injection Speed | mm/s | 83.8 |
Screw Stroke | mm | 165 |
Screw Rotation Speed | r/min | 0-180 |
Injection Clamping Force | KN | 400 |
Blow Clamping Force | KN | 80 |
Blow Air Pressure | Kgf/cm2 | 35 |
Working Pressure | Kgf/cm2 | 8 |
Motor Power | KW | 18.5 |
Heating Capacity | KW | 13 |
Max.Hydraulic Pressure | Mpa | 16 |
Tank volume | L | 400 |
(LXWXH)Dimension | m | 3.75x1.43x3.15 |
Main Features
1. After preform injection, the heat is used for bottle blowing, no need of preform packaging, storage, reheating and other working procedures.
2. Less land occupation, simple management, high degree of automation, less labor intensify (1 person can control more than 3 machines).
3. With a temperature adjustable station, suitable for complicated shape, difficult forming products (such as PP IV-solution bottles).
4.The compact structure greatly shortens the production cycle and enhances productivity.
5.Adopt variable pump and servo motor, maximally reduce energy consumption.
6.The replacement of the mold cost is far lower than similar foreign equipment.

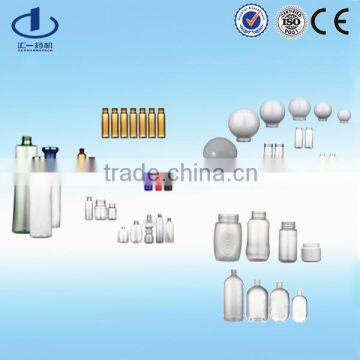

Mold Cavities
Specification | Number of cavities | Max.capacity | Diameter of the mouth | Bottle body diameter | Bottle height |
Unit | pices | L | Mm | Mm | Mm |
Date | 1 | 2.5 | 63 | 115 | 250 |
2 | 1.5 | 50 | 100 | 250 | |
3 | 0.8 | 42 | 80 | 250 | |
4 | 0.6 | 32 | 70 | 250 | |
5 | 0.4 | 28 | 55 | 250 | |
6 | 0.2 | 25 | 45 | 250 |
Shipping and Payment
Packing | Export standard package |
MOQ | 1 set |
FOB price | Please contact for new price |
Delivery time | 60days |
FOB port | Shanghai |
Payment terms | T/T,L/C |
